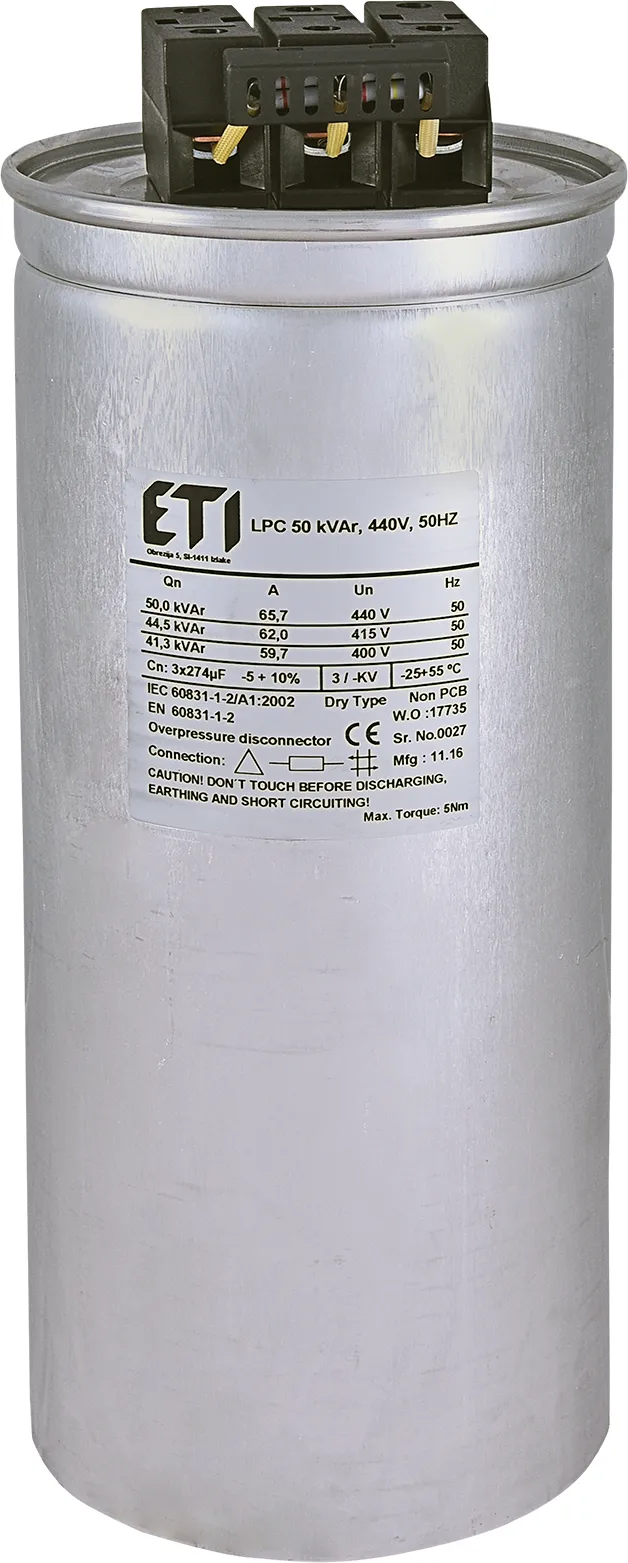

Capacitor LPC 50 kVAr, 440V, 50Hz 004656767
Specifications
- ETI Code:
- 004656767
- Description:
- LPC 50 kVAr, 440V, 50Hz
- Class name:
- Capacitor
- Rated power (kVAr):
- 50
- Rated capacitance (μF):
- 3x274,0
- Rated voltage (V):
- 440
- Type:
- Dry
- Connection type:
- Screw terminal
Documents
Logistic Data
Product
- Net weight of the product
- 5.1 kg
- Customs tariff
- 85321000
- logis_net_width
- 136 mm
- logis_net_height
- 310 mm
- logis_net_depth
- 136 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895696841
- Transport packaging weight
- 5.28 kg
- Pallet quantity
- 152
ETIM Clasification
- Classification
- EC001516
- Class name
- Capacitor
- Capacity
- 274µF
- With insert contacts
- No
- Diameter
- 136mm
- Length
- 310mm
