/ Modular current and residual protective devices ASTI / Motor protective circuit breaker and accessories ETICON

Motor Protective circuit breaker

Items: 0

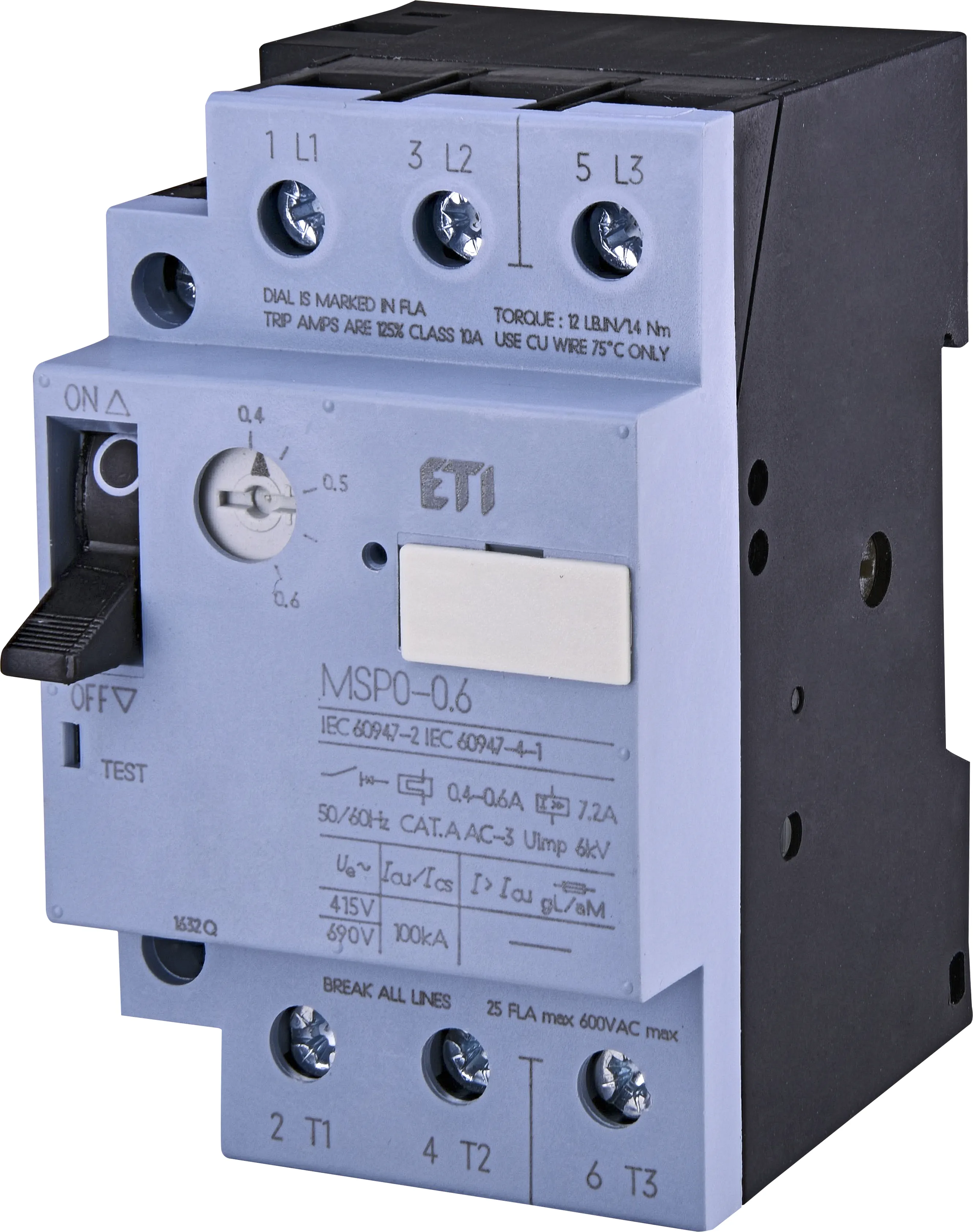

004646618
MSP0-0,6
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,4 - 0,6
Short-circuit release Irm (A):
7,2
Rated operation power at AC3 (kW):
0,12…0,18

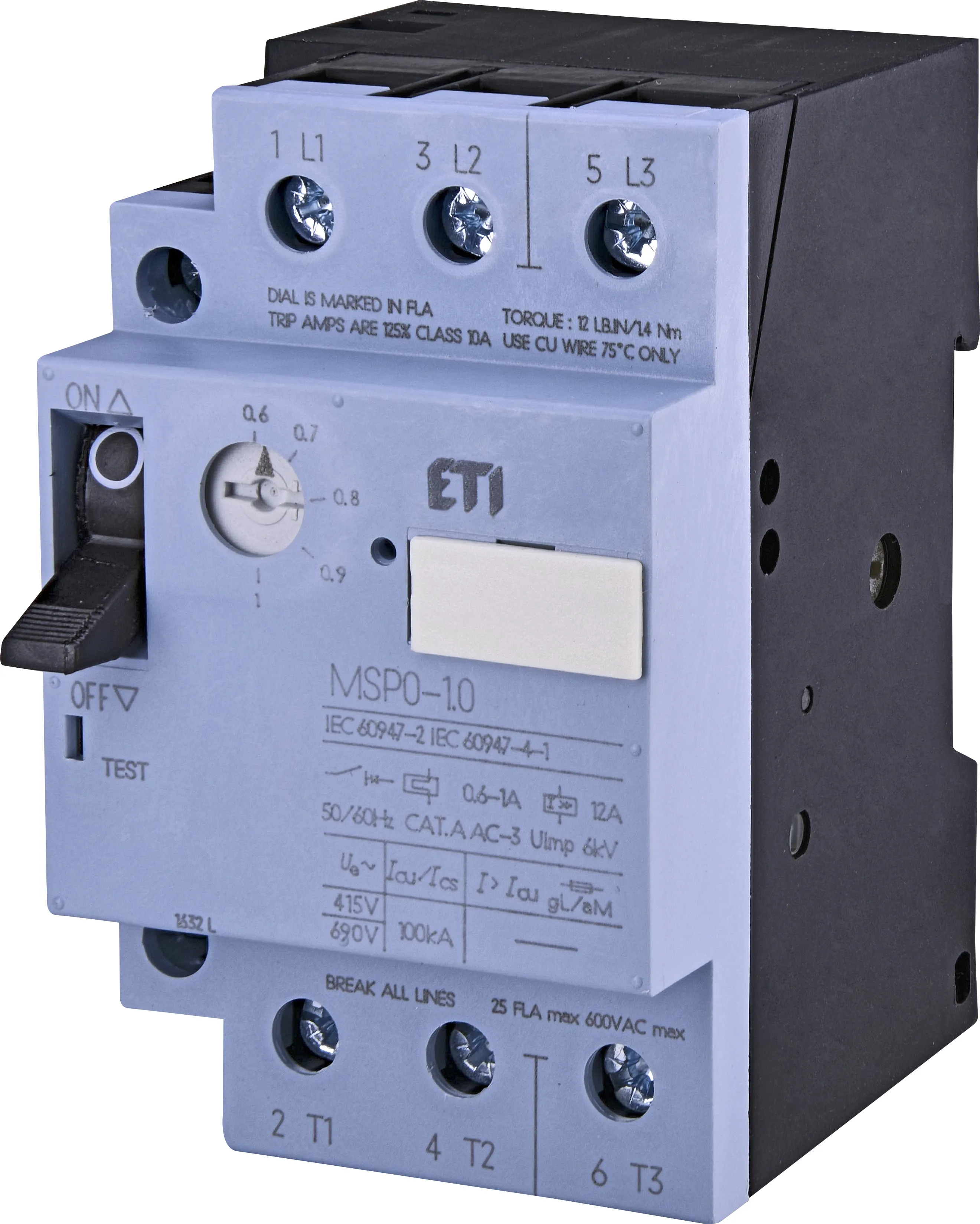

004646619
MSP0-1,0
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,6 - 1,0
Short-circuit release Irm (A):
12
Rated operation power at AC3 (kW):
0,25

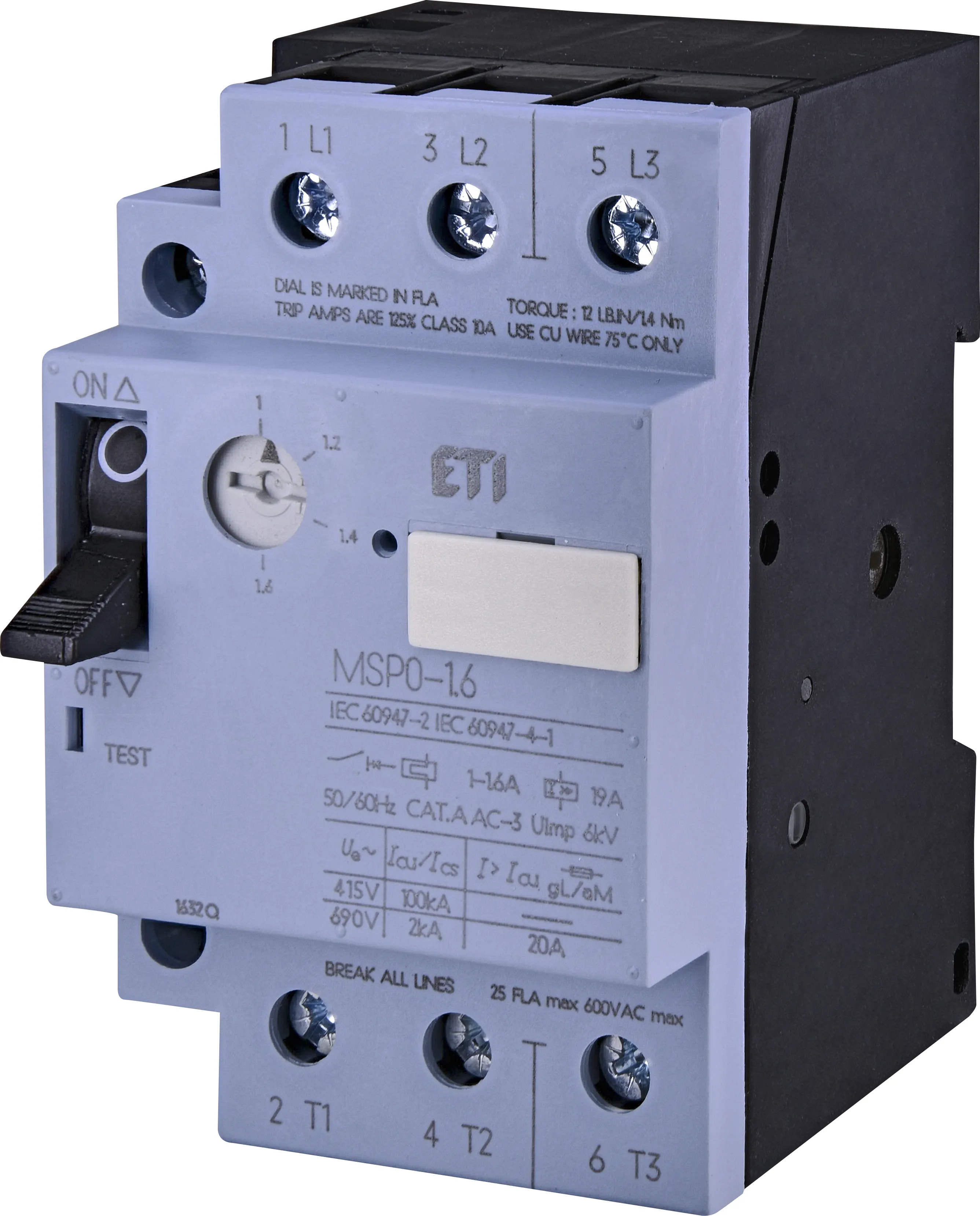

004646620
MSP0-1,6
Class name:
Mot.protec.circuit breaker
Current setting range (A):
1,0 - 1,6
Short-circuit release Irm (A):
19
Rated operation power at AC3 (kW):
0,37...0,55

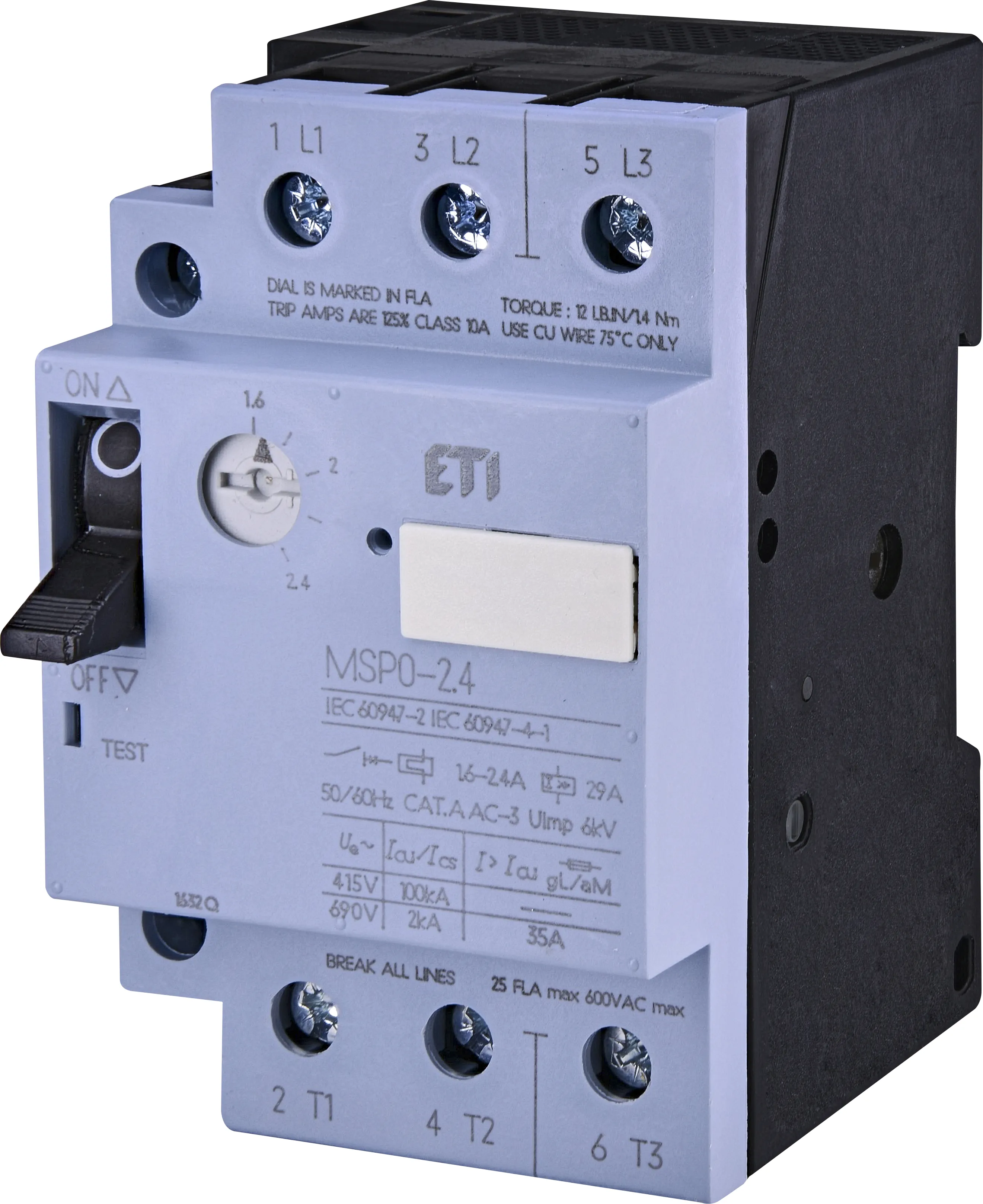

004646621
MSP0-2,4
Class name:
Mot.protec.circuit breaker
Current setting range (A):
1,6 - 2,4
Short-circuit release Irm (A):
29
Rated operation power at AC3 (kW):
0,75

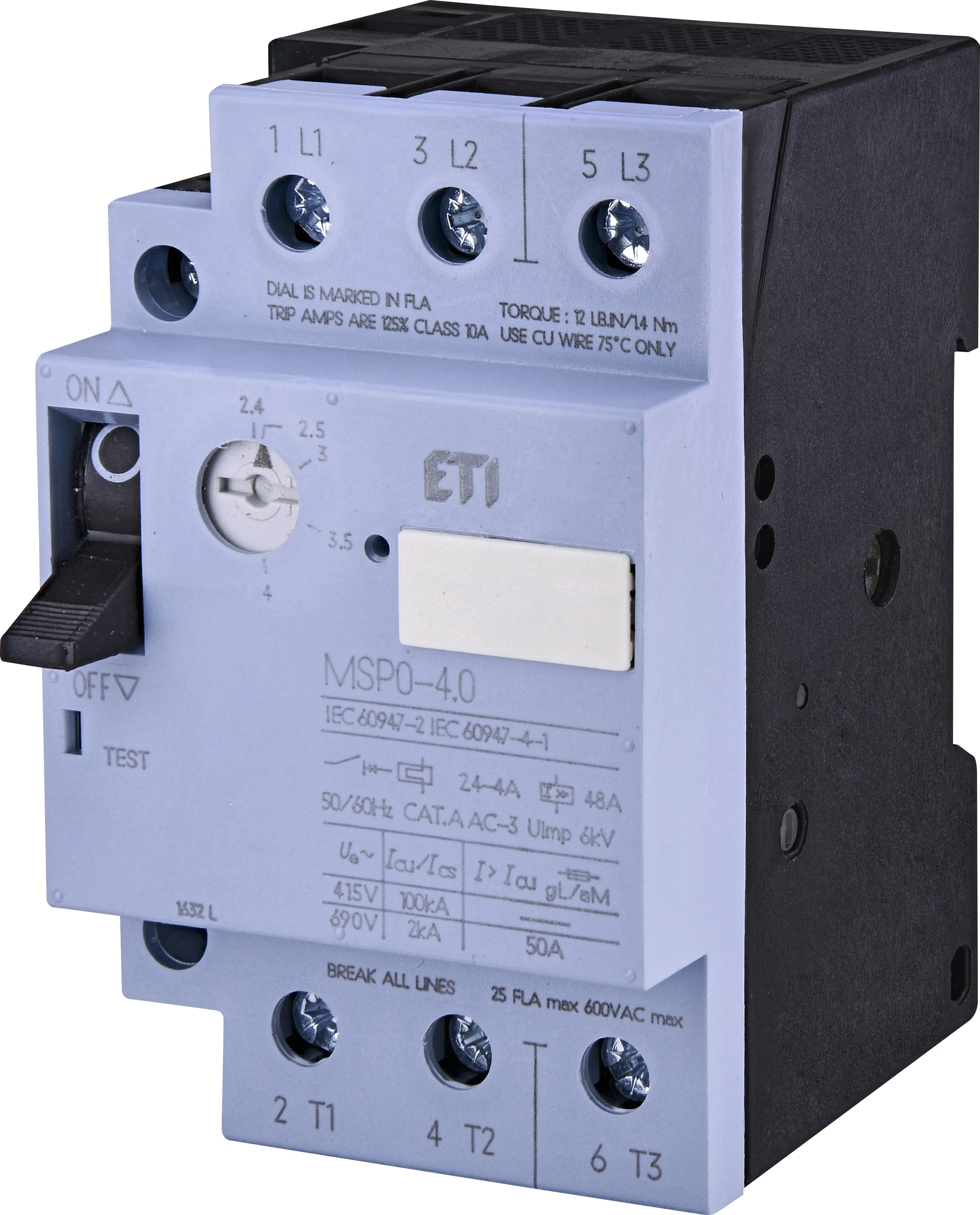

004646622
MSP0-4,0
Class name:
Mot.protec.circuit breaker
Current setting range (A):
2,4 - 4,0
Short-circuit release Irm (A):
48
Rated operation power at AC3 (kW):
1,1...1,5

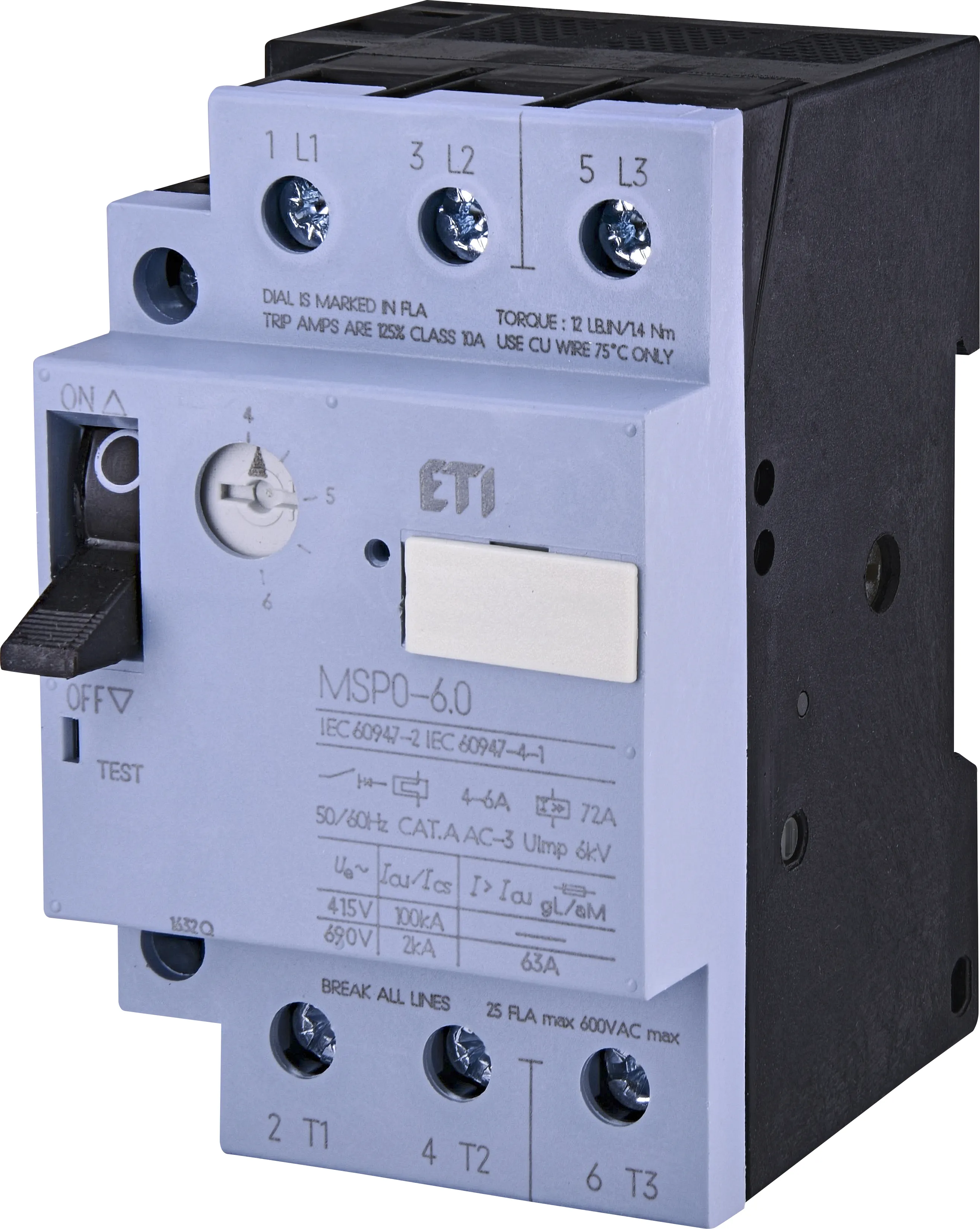

004646623
MSP0-6,0
Class name:
Mot.protec.circuit breaker
Current setting range (A):
4,0 - 6,0
Short-circuit release Irm (A):
72
Rated operation power at AC3 (kW):
2,2

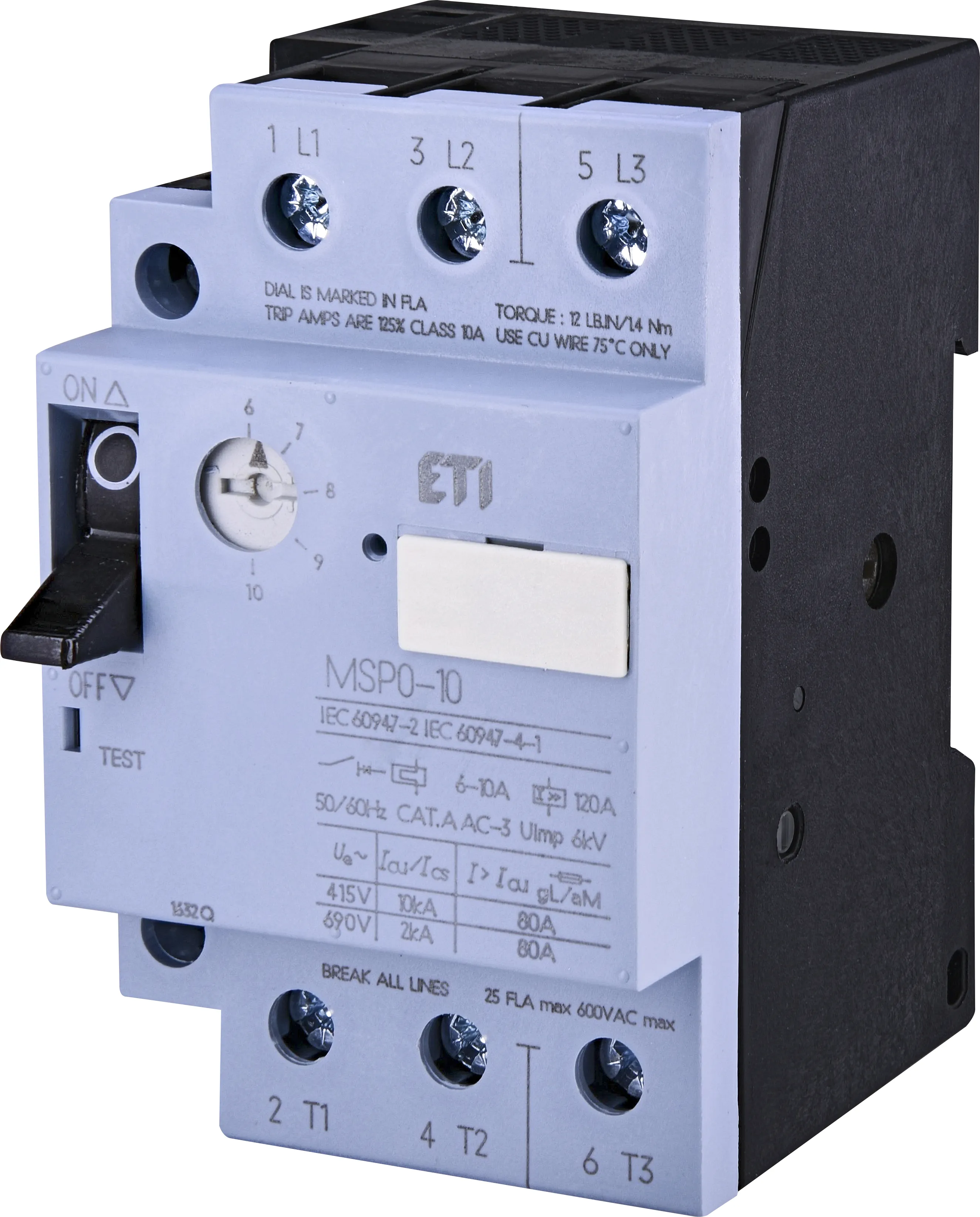

004646624
MSP0-10
Class name:
Mot.protec.circuit breaker
Current setting range (A):
6,0 - 10
Short-circuit release Irm (A):
120
Rated operation power at AC3 (kW):
3…4

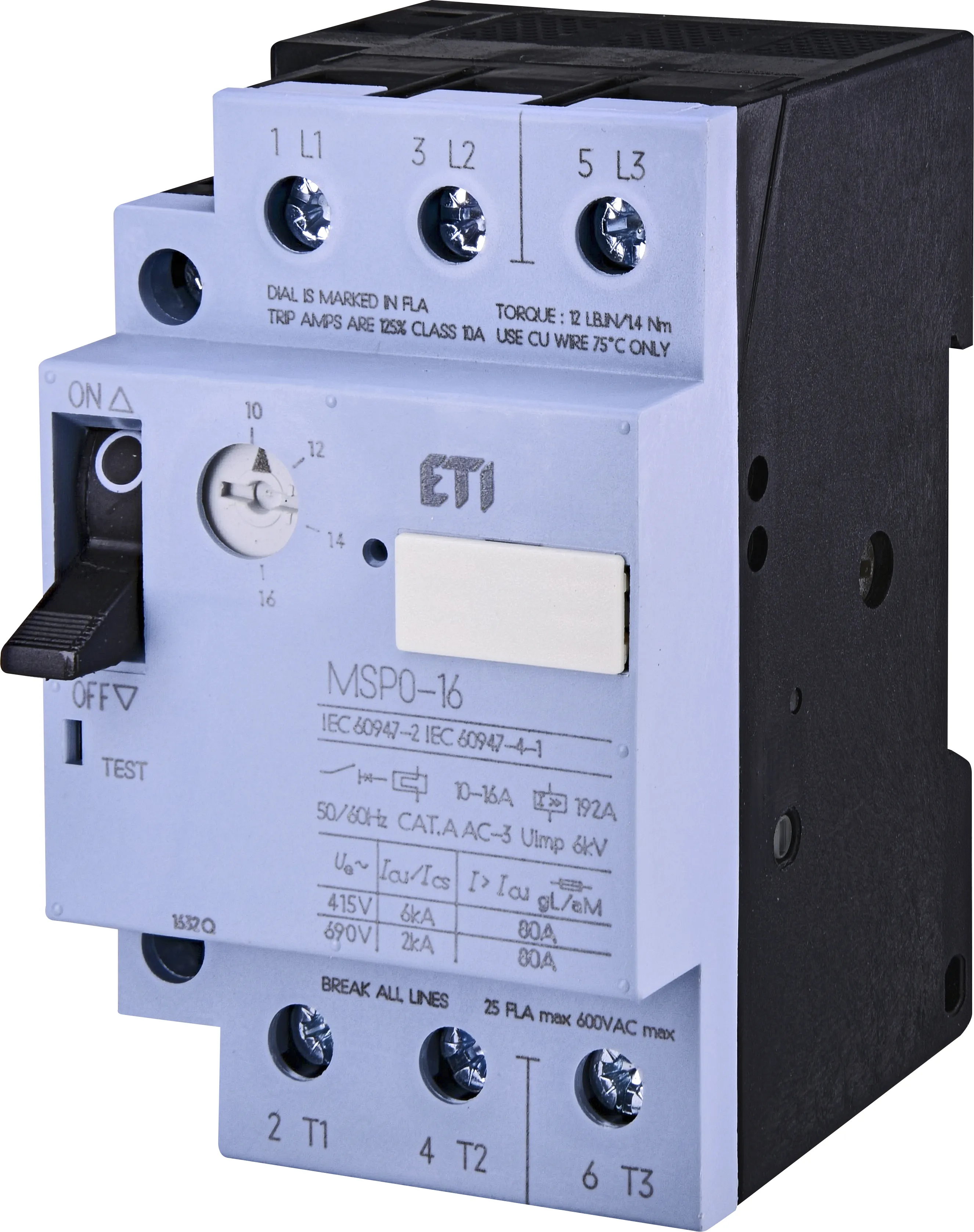

004646625
MSP0-16
Class name:
Mot.protec.circuit breaker
Current setting range (A):
10-16
Short-circuit release Irm (A):
192
Rated operation power at AC3 (kW):
7,5

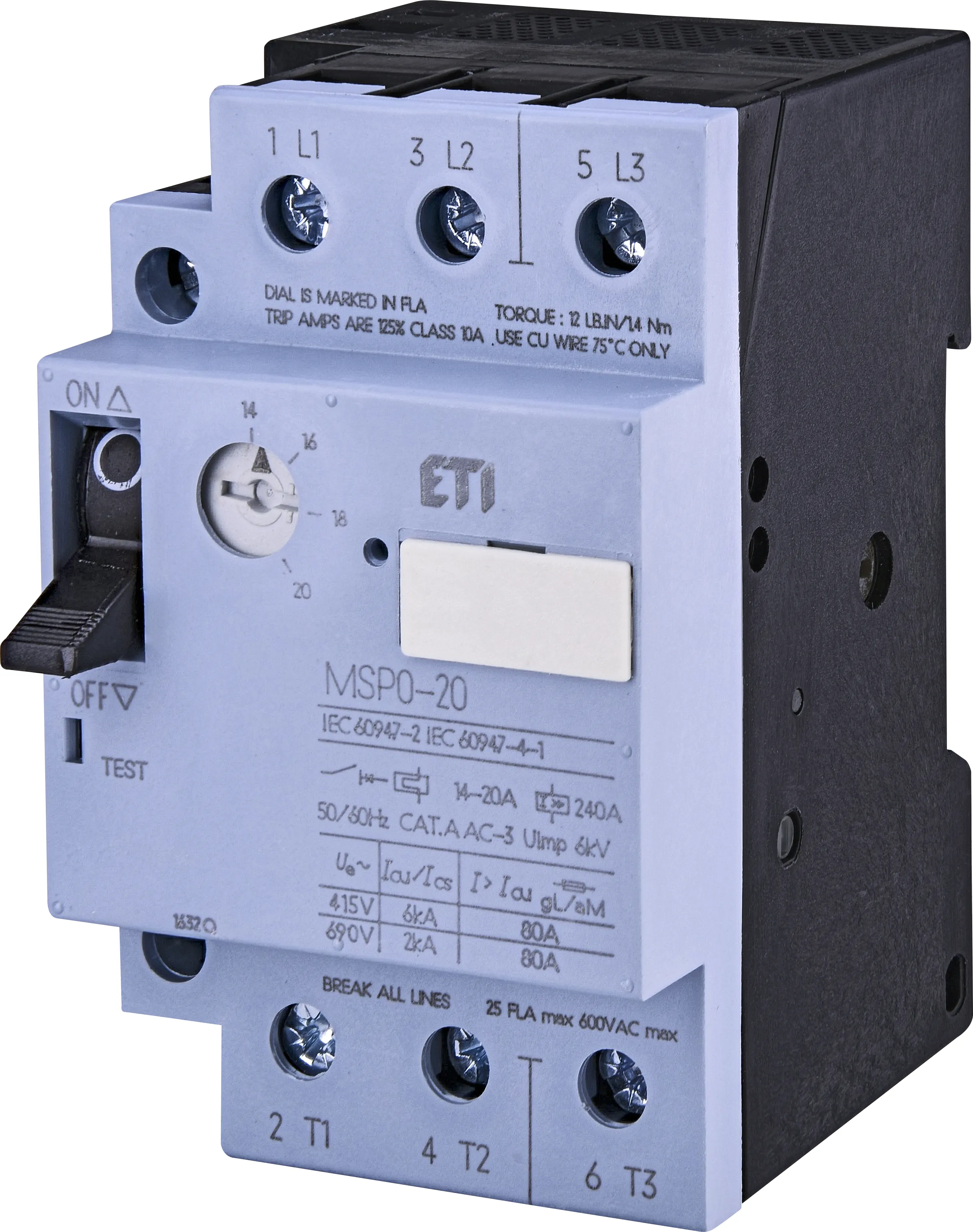

004646626
MSP0-20
Class name:
Mot.protec.circuit breaker
Current setting range (A):
14 - 20
Short-circuit release Irm (A):
240
Rated operation power at AC3 (kW):
7,5

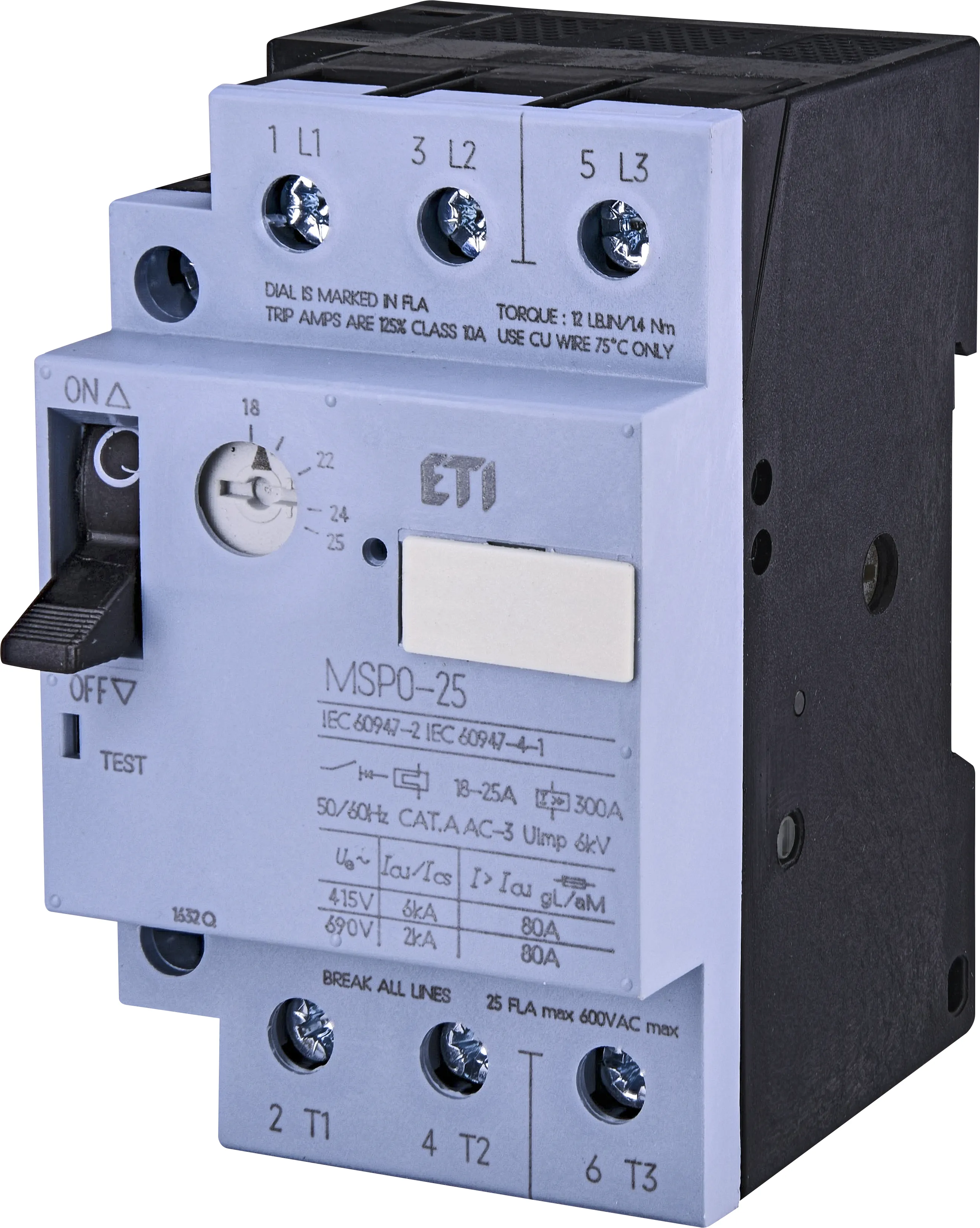

004646627
MSP0-25
Class name:
Mot.protec.circuit breaker
Current setting range (A):
18 - 25
Short-circuit release Irm (A):
300
Rated operation power at AC3 (kW):
11

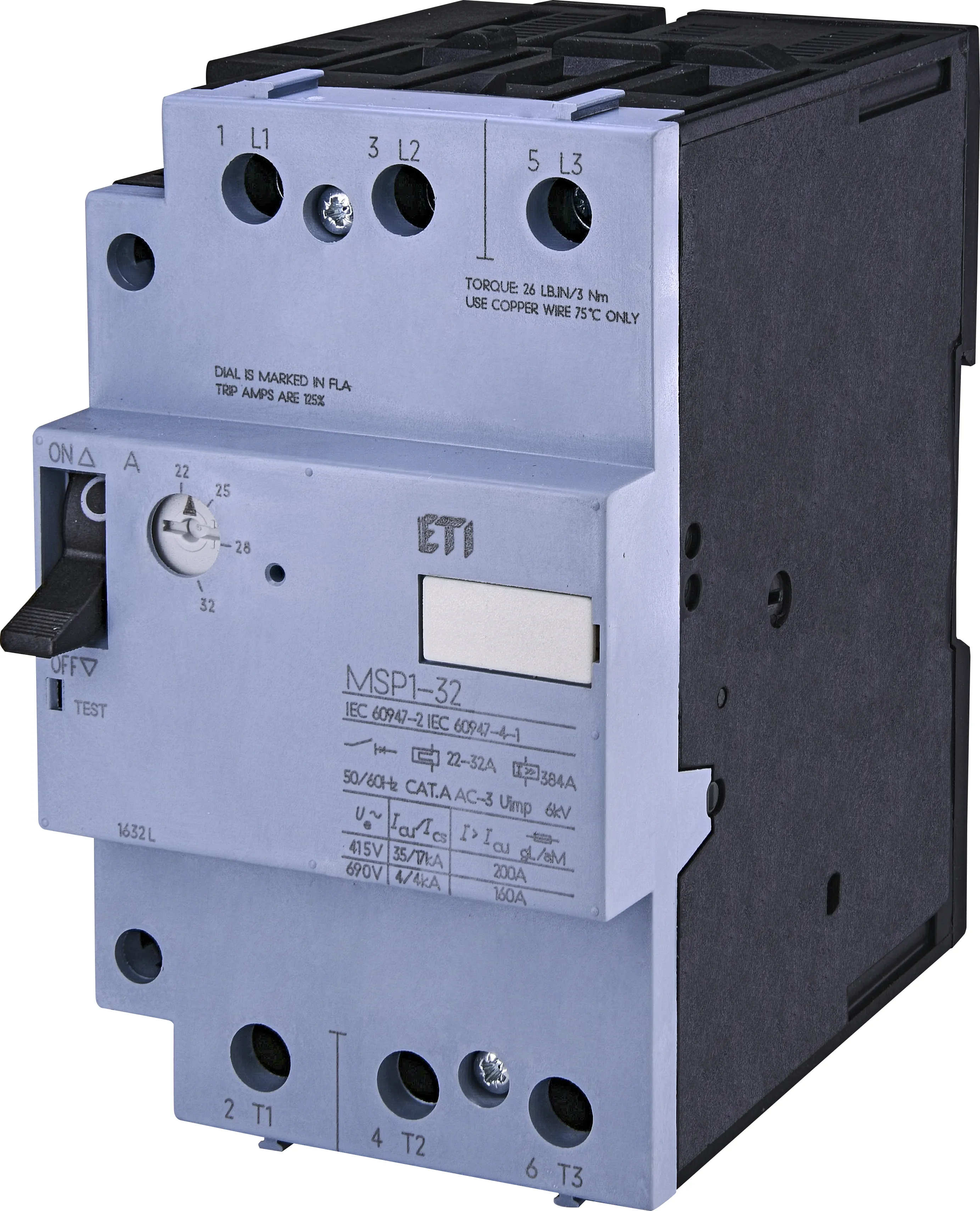

004646628
MSP1-32
Class name:
Mot.protec.circuit breaker
Current setting range (A):
22 - 32
Short-circuit release Irm (A):
384
Rated operation power at AC3 (kW):
15

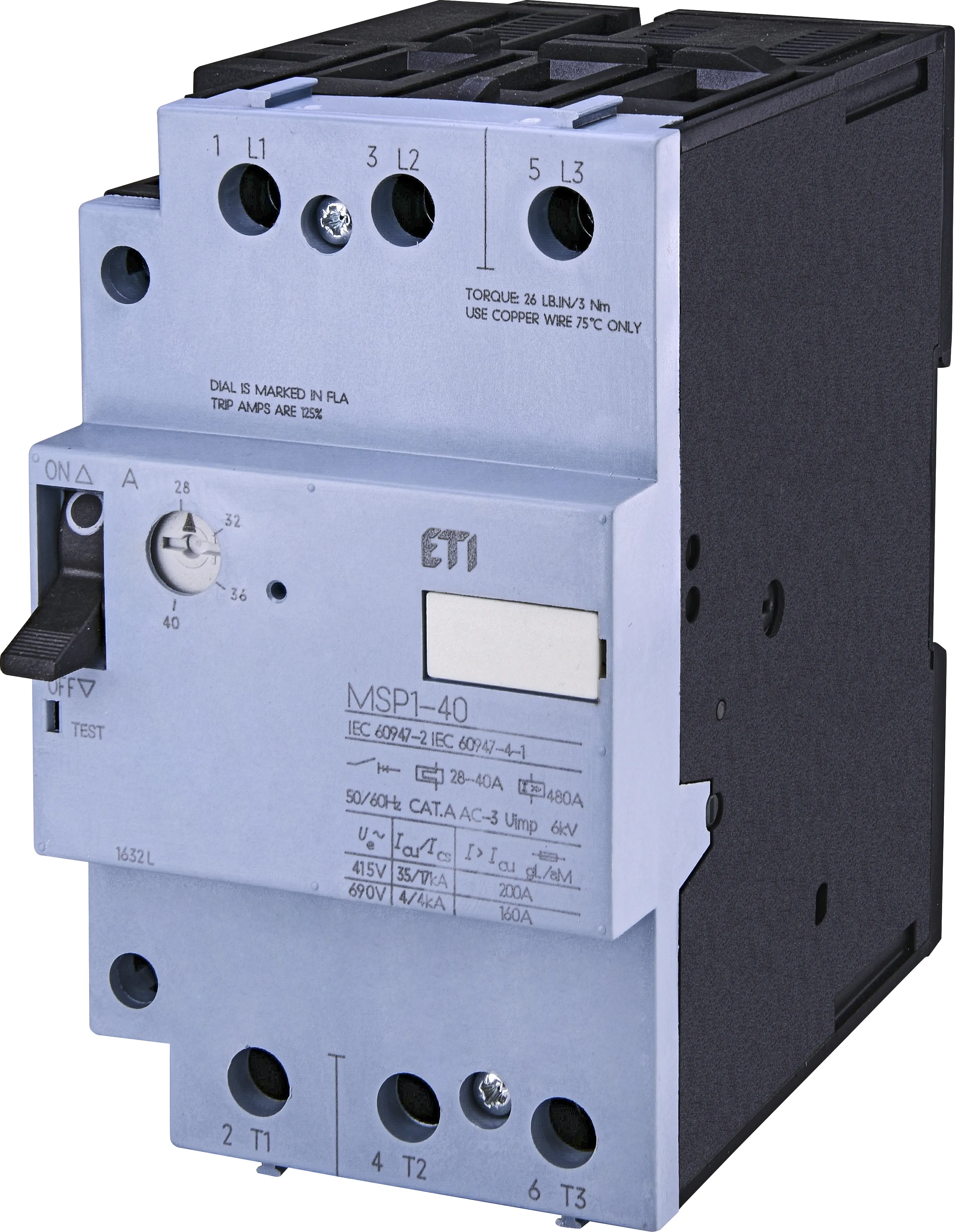

004646629
MSP1-40
Class name:
Mot.protec.circuit breaker
Current setting range (A):
28 - 40
Short-circuit release Irm (A):
480
Rated operation power at AC3 (kW):
18,5

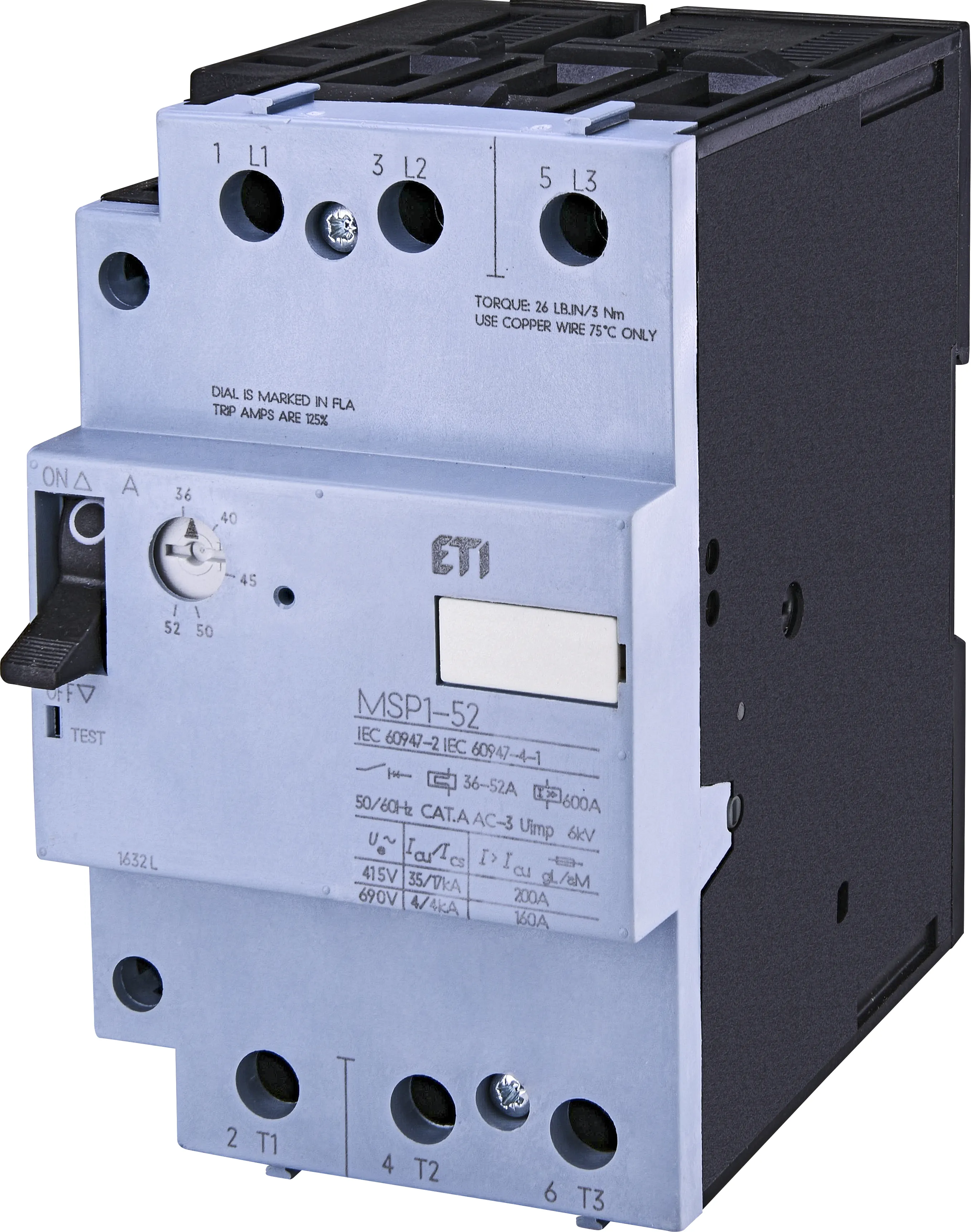

004646630
MSP1-52
Class name:
Mot.protec.circuit breaker
Current setting range (A):
36 - 52
Short-circuit release Irm (A):
600
Rated operation power at AC3 (kW):
22
004648015
MPE25-40
Class name:
Mot.protec.circuit breaker
Current setting range (A):
32-40
Short-circuit release Irm (A):
520
Rated operation power at AC3 (kW):
18,5

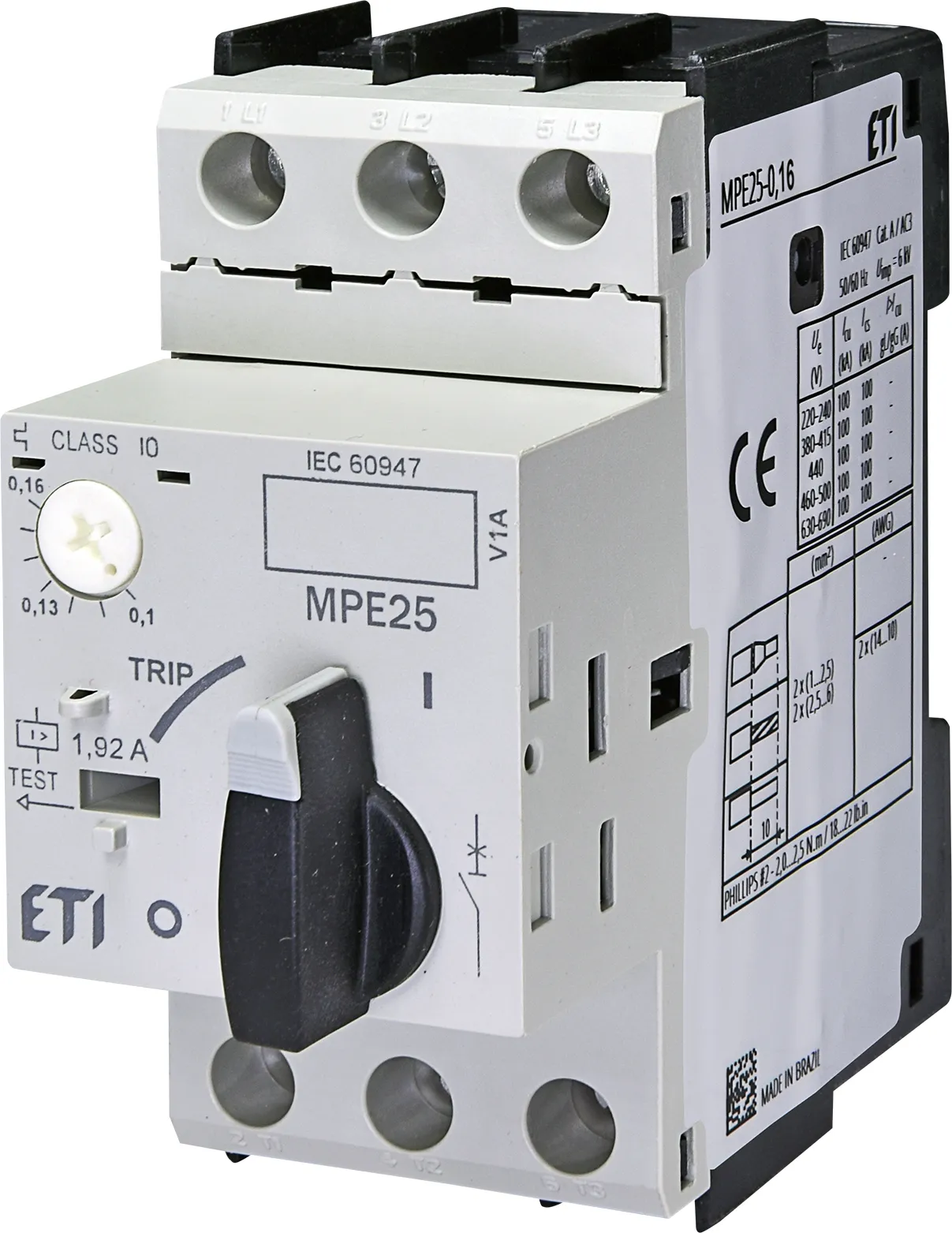

004648001
MPE25-0,16
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,1 - 0,16
Short-circuit release Irm (A):
2,08
004648002
MPE25-0,25
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,16 - 0,25
Short-circuit release Irm (A):
3,25
Rated operation power at AC3 (kW):
0,06
004648003
MPE25-0,40
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,25 - 0,4
Short-circuit release Irm (A):
5,2
Rated operation power at AC3 (kW):
0,09
004648004
MPE25-0,63
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,4 - 0,63
Short-circuit release Irm (A):
8,2
Rated operation power at AC3 (kW):
0,12
004648005
MPE25-1,0
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,63 - 1,0
Short-circuit release Irm (A):
13
Rated operation power at AC3 (kW):
0,25

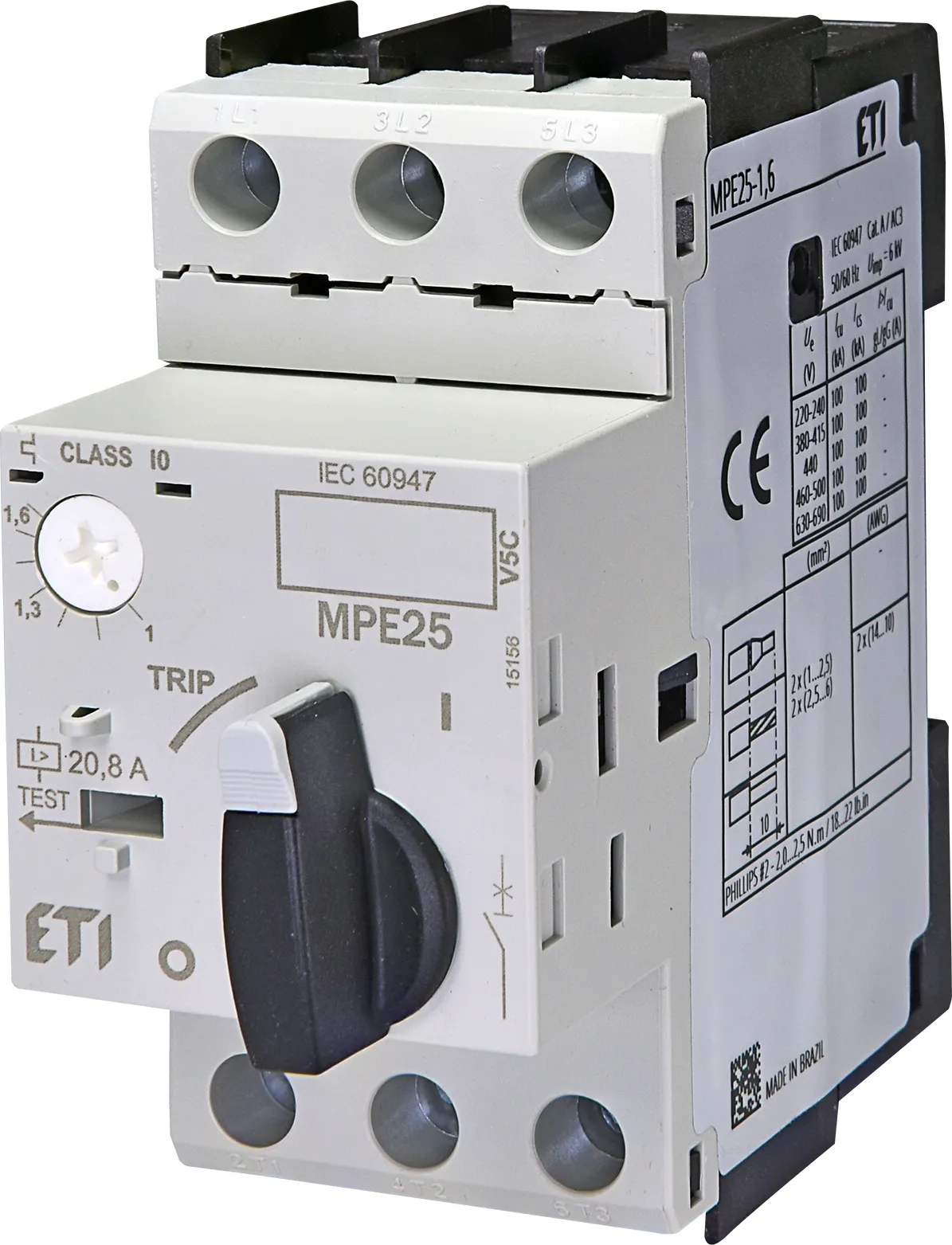

004648006
MPE25-1,6
Class name:
Mot.protec.circuit breaker
Current setting range (A):
1,0 - 1,6
Short-circuit release Irm (A):
20,8
Rated operation power at AC3 (kW):
0,37
004648007
MPE25-2,5
Class name:
Mot.protec.circuit breaker
Current setting range (A):
1,6 - 2,5
Short-circuit release Irm (A):
32,5
Rated operation power at AC3 (kW):
0,75
004648008
MPE25-4,0
Class name:
Mot.protec.circuit breaker
Current setting range (A):
2,5 - 4,0
Short-circuit release Irm (A):
52
Rated operation power at AC3 (kW):
1,5

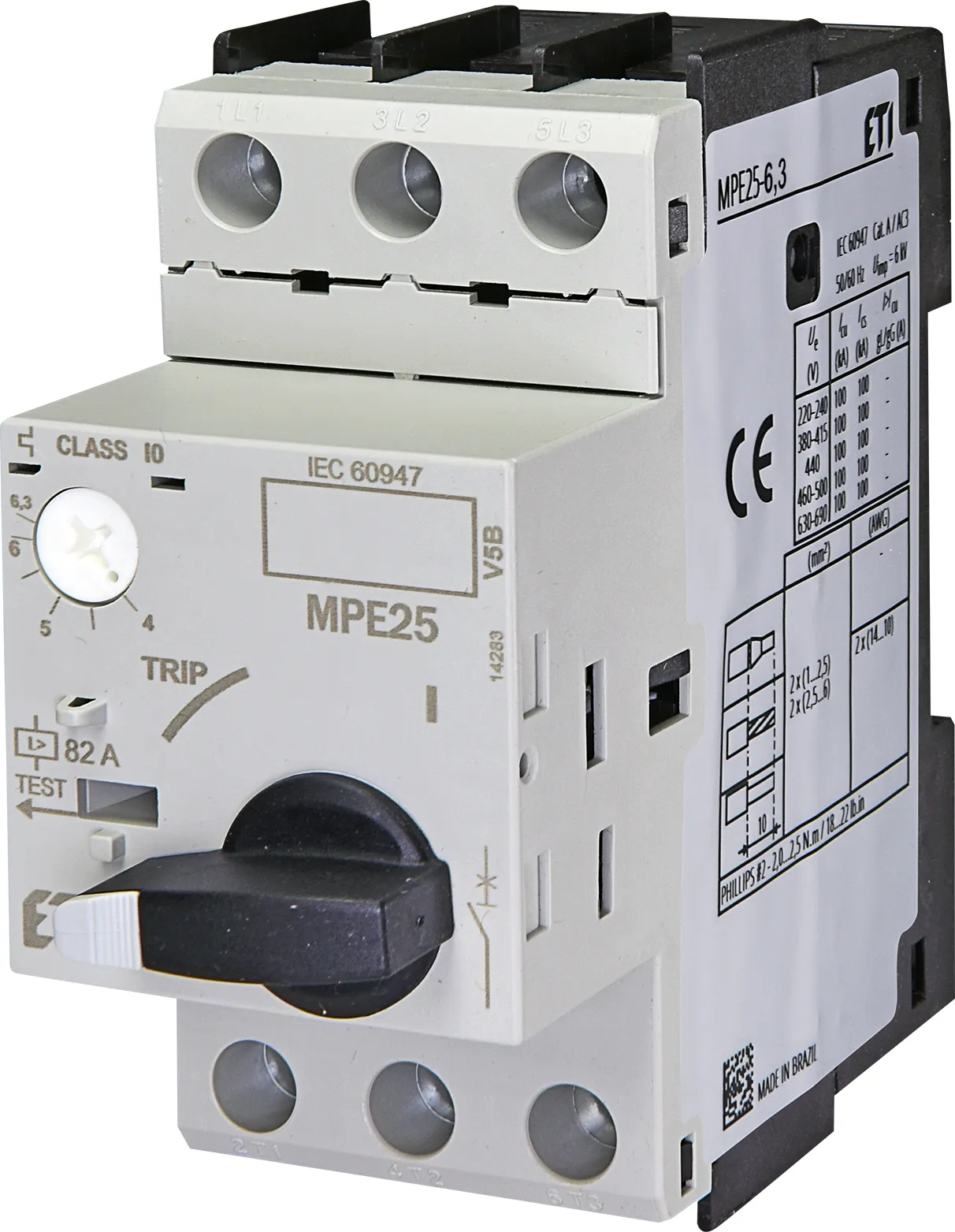

004648009
MPE25-6,3
Class name:
Mot.protec.circuit breaker
Current setting range (A):
4,0 - 6,3
Short-circuit release Irm (A):
82
Rated operation power at AC3 (kW):
2,2
004648010
MPE25-10
Class name:
Mot.protec.circuit breaker
Current setting range (A):
6,3 - 10
Short-circuit release Irm (A):
130
Rated operation power at AC3 (kW):
4,5

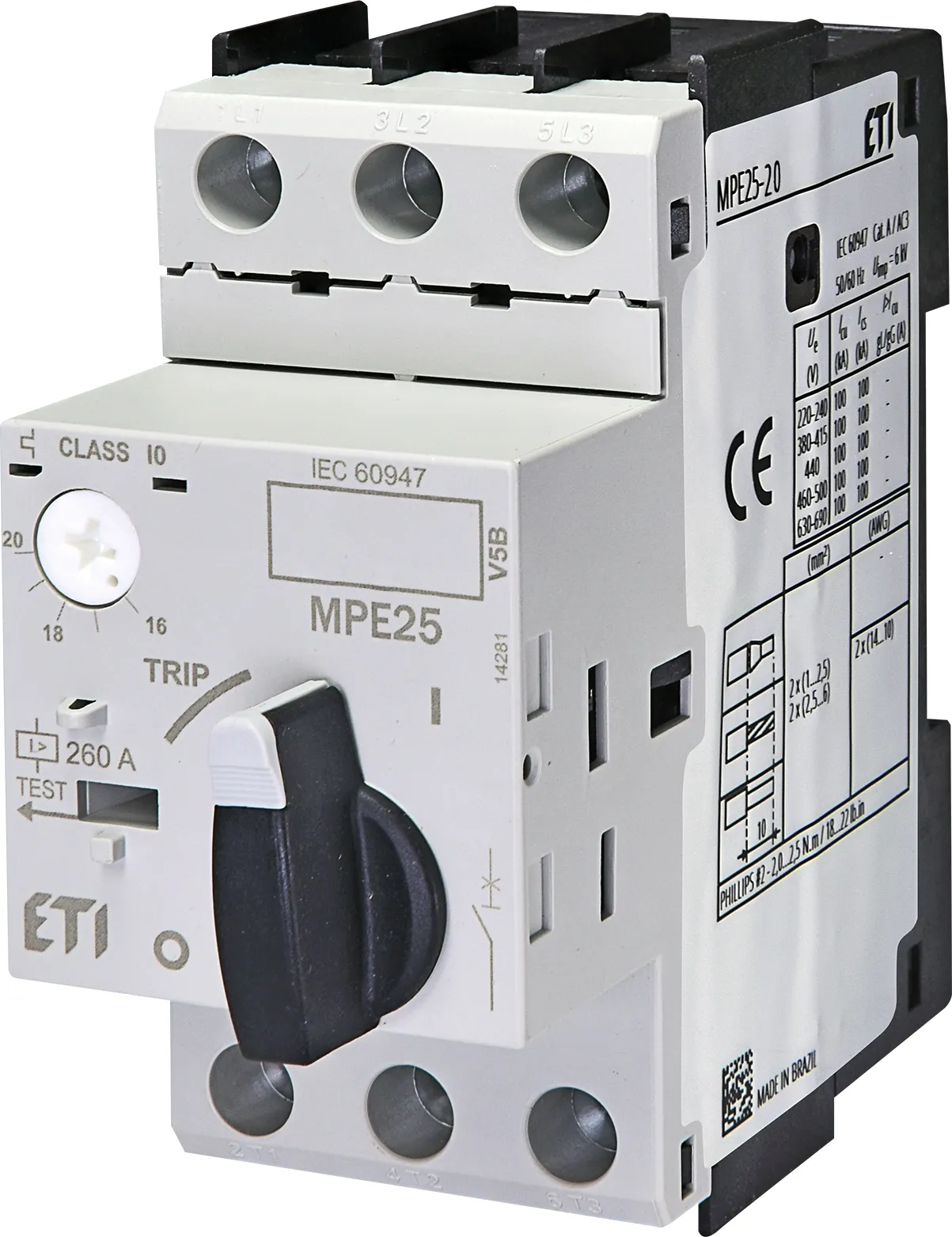

004648012
MPE25-20
Class name:
Mot.protec.circuit breaker
Current setting range (A):
16 - 20
Short-circuit release Irm (A):
260
Rated operation power at AC3 (kW):
9,2

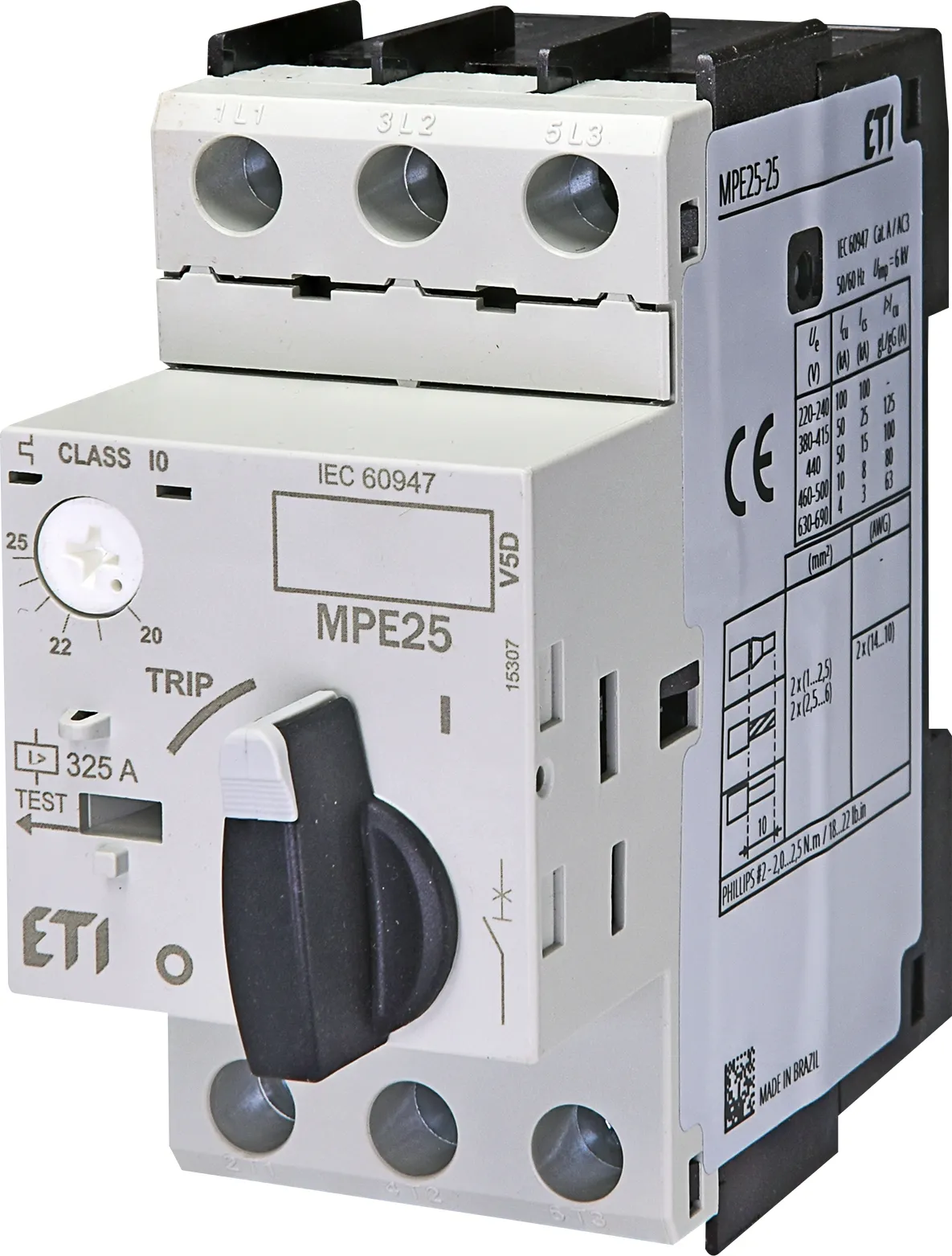

004648013
MPE25-25
Class name:
Mot.protec.circuit breaker
Current setting range (A):
20 - 25
Short-circuit release Irm (A):
325
Rated operation power at AC3 (kW):
11

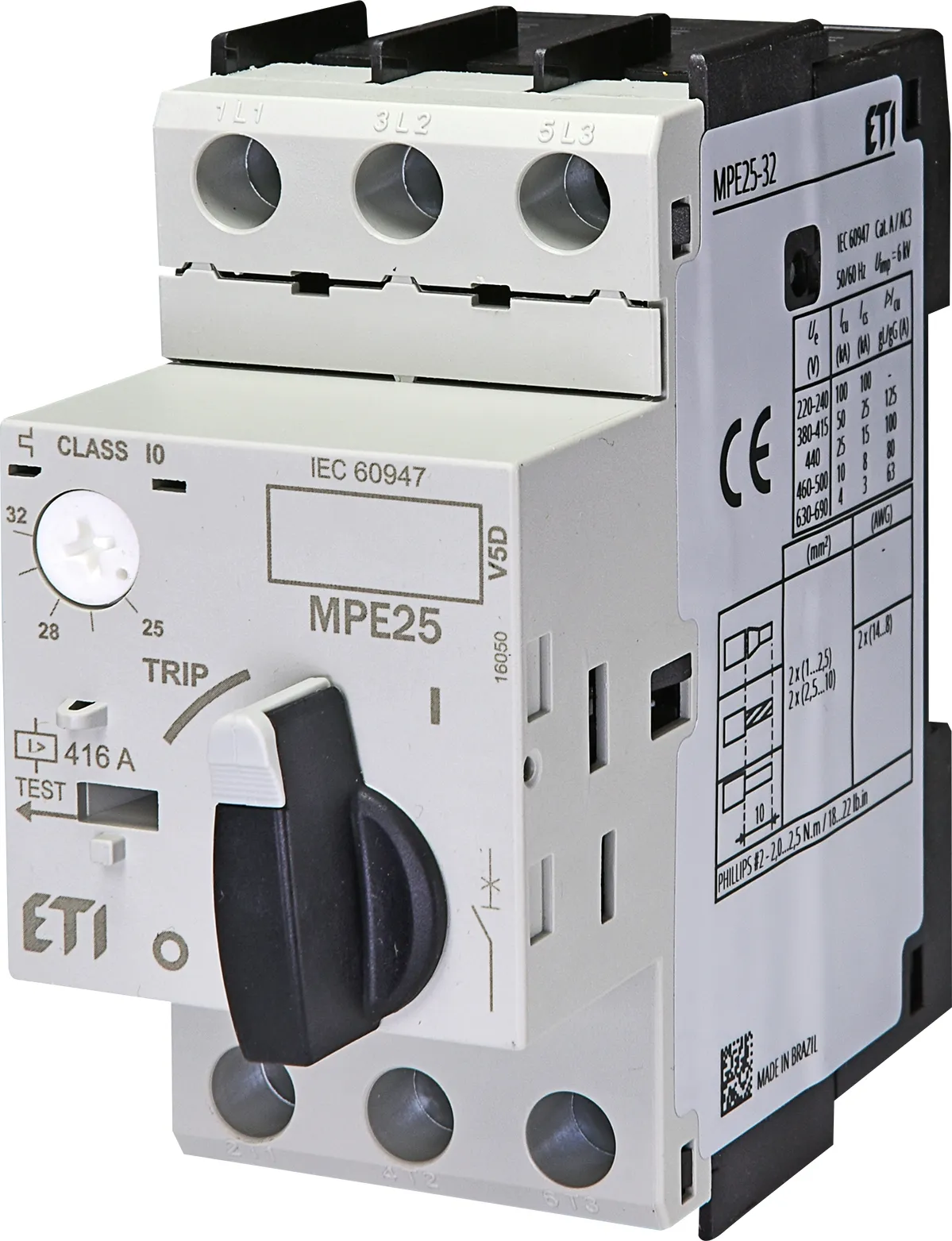

004648014
MPE25-32
Class name:
Mot.protec.circuit breaker
Current setting range (A):
25 - 32
Short-circuit release Irm (A):
416
Rated operation power at AC3 (kW):
15

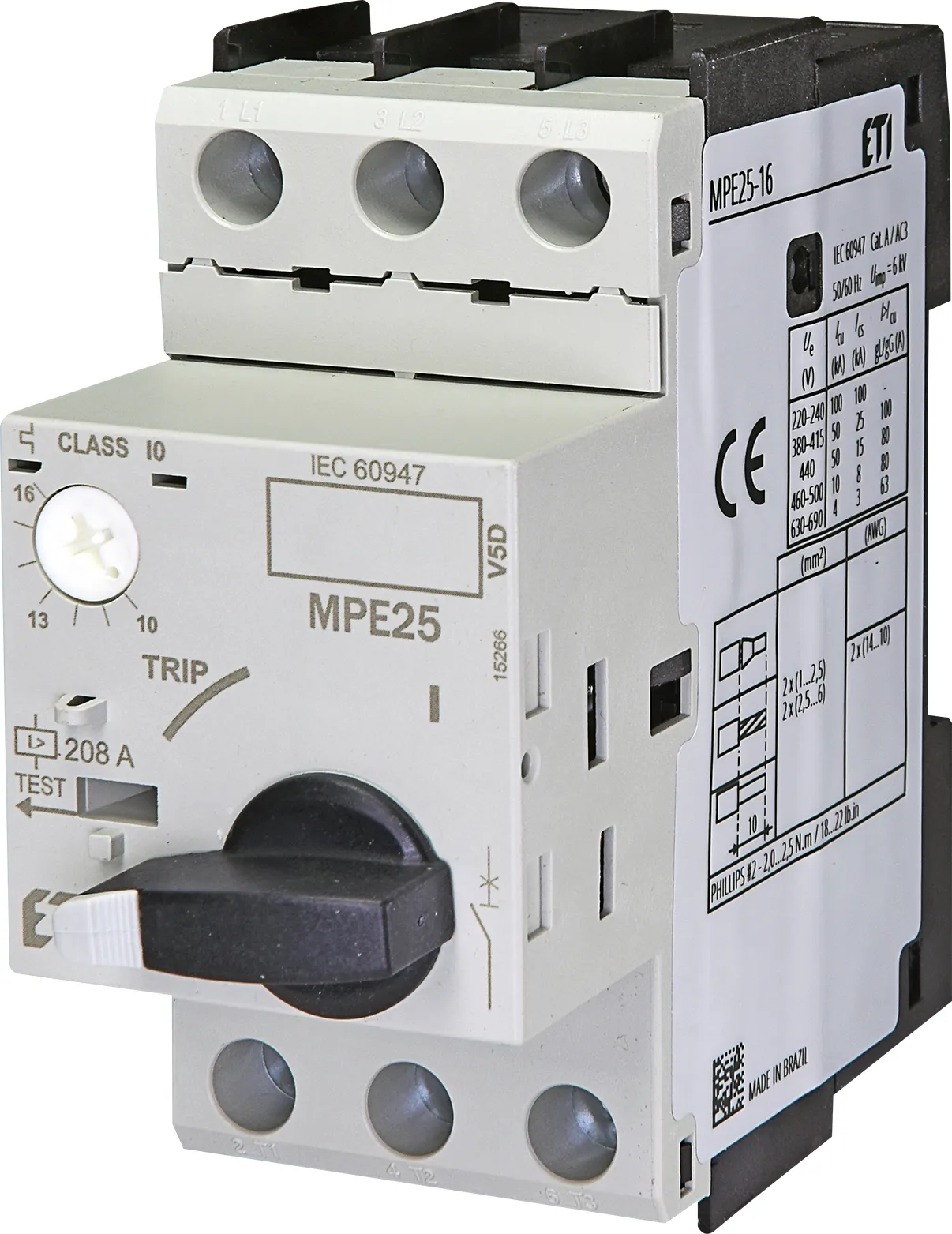

004648011
MPE25-16
Class name:
Mot.protec.circuit breaker
Current setting range (A):
10-16
Short-circuit release Irm (A):
208
Rated operation power at AC3 (kW):
7,5
004648018
MPE80-80
Class name:
Mot.protec.circuit breaker
Current setting range (A):
65-80
Short-circuit release Irm (A):
1040
Rated operation power at AC3 (kW):
37
004648016
MPE80-50
Class name:
Mot.protec.circuit breaker
Current setting range (A):
40-50
Short-circuit release Irm (A):
650
Rated operation power at AC3 (kW):
22
004648017
MPE80-65
Class name:
Mot.protec.circuit breaker
Current setting range (A):
50-65
Short-circuit release Irm (A):
845
Rated operation power at AC3 (kW):
30

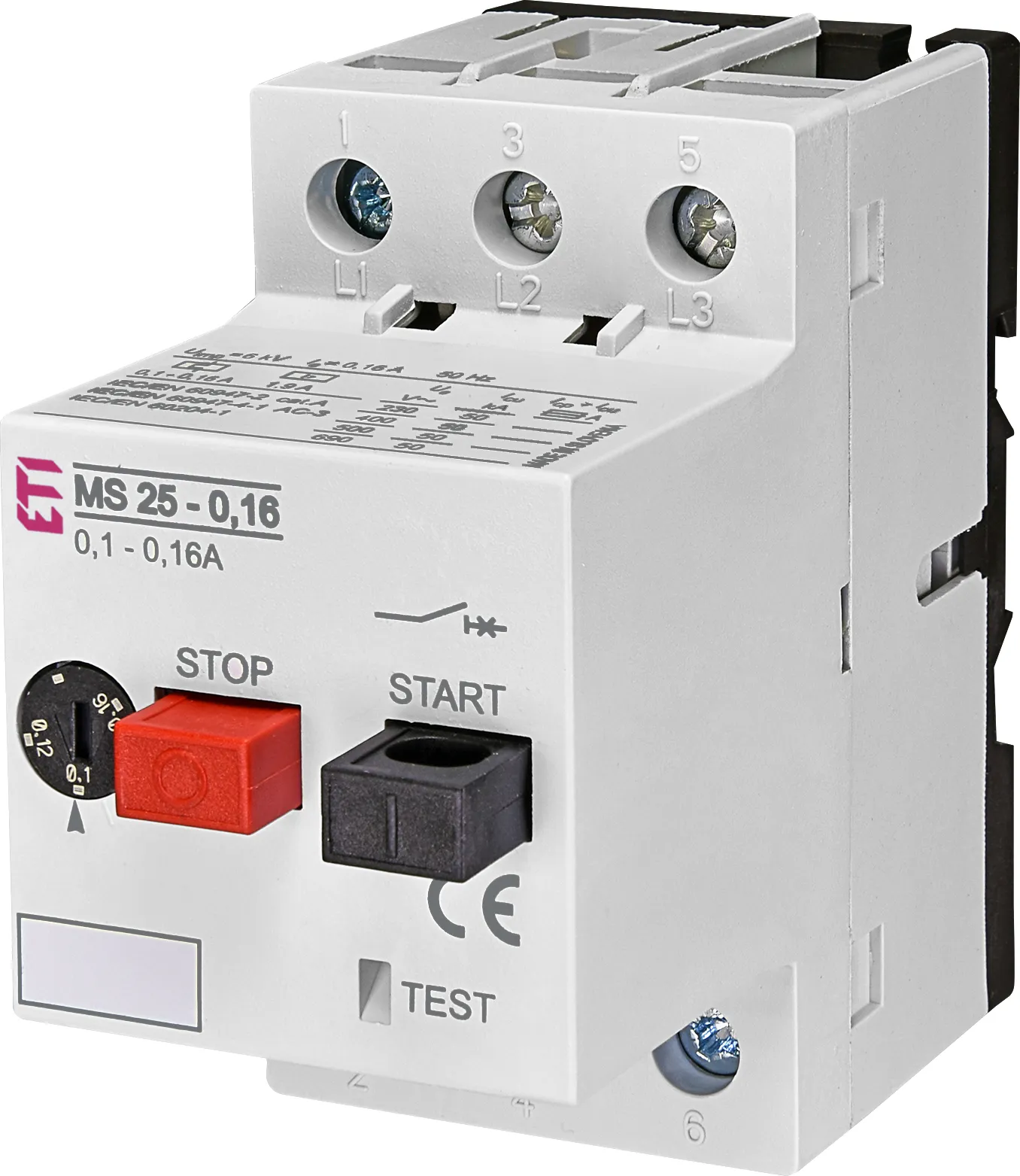

004600010
MS25-0,16
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,1 - 0,16
Short-circuit release Irm (A):
2,2
Rated operation power at AC3 (kW):
0,02
004600020
MS25-0,25
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,16 - 0,25
Short-circuit release Irm (A):
3,5
Rated operation power at AC3 (kW):
0,06

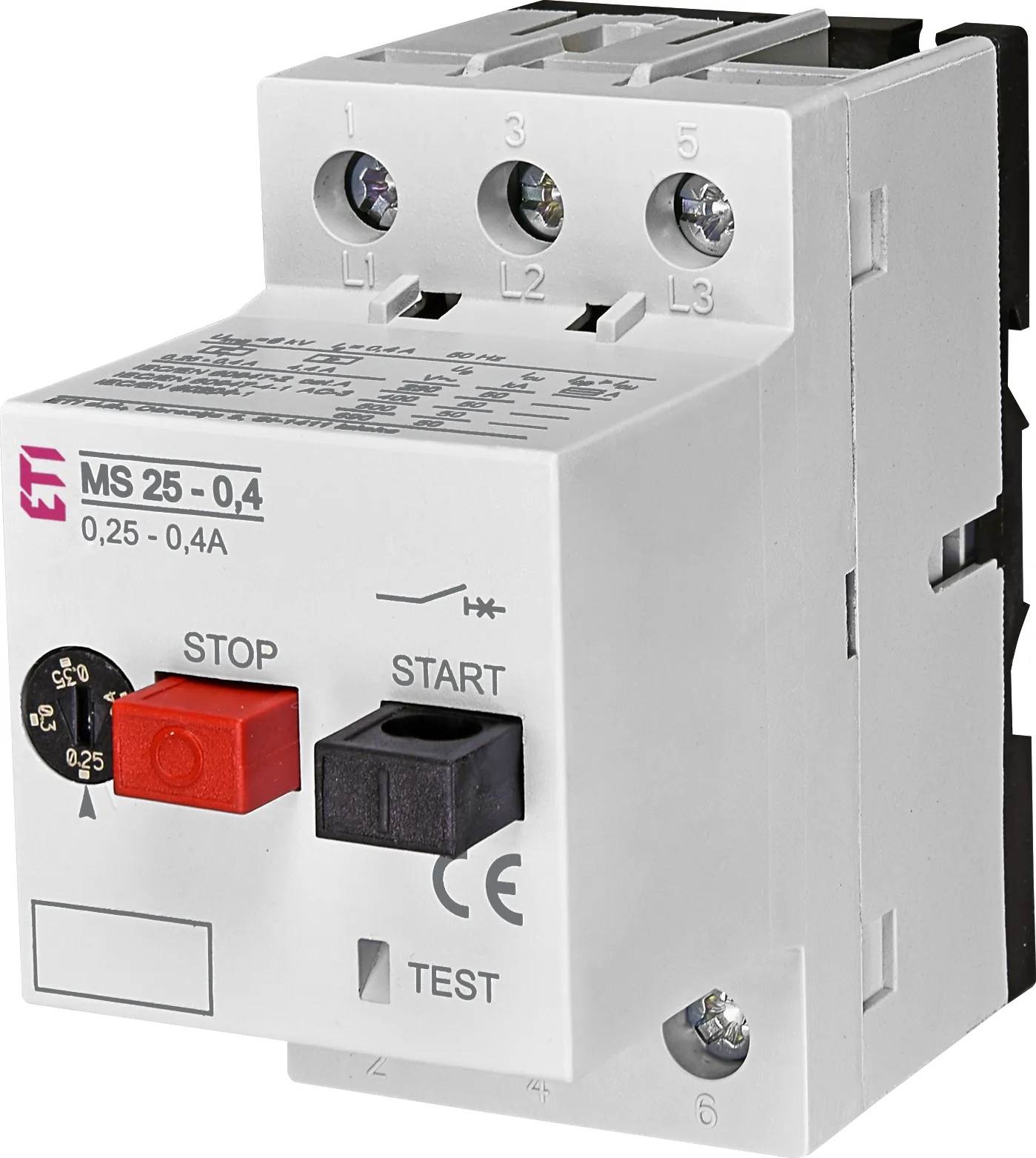

004600030
MS25-0,4
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,25 - 0,4
Short-circuit release Irm (A):
6
Rated operation power at AC3 (kW):
0,09
004600040
MS25-0,63
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,4 - 0,63
Short-circuit release Irm (A):
9
Rated operation power at AC3 (kW):
0,12
004600050
MS25-1
Class name:
Mot.protec.circuit breaker
Current setting range (A):
0,63 - 1,0
Short-circuit release Irm (A):
14
Rated operation power at AC3 (kW):
0,18…0,25
004600060
MS25-1,6
Class name:
Mot.protec.circuit breaker
Current setting range (A):
1,0 - 1,6
Short-circuit release Irm (A):
23
Rated operation power at AC3 (kW):
0,37…0,55
004600070
MS25-2,5
Class name:
Mot.protec.circuit breaker
Current setting range (A):
1,6 - 2,5
Short-circuit release Irm (A):
35
Rated operation power at AC3 (kW):
0,75…1,1

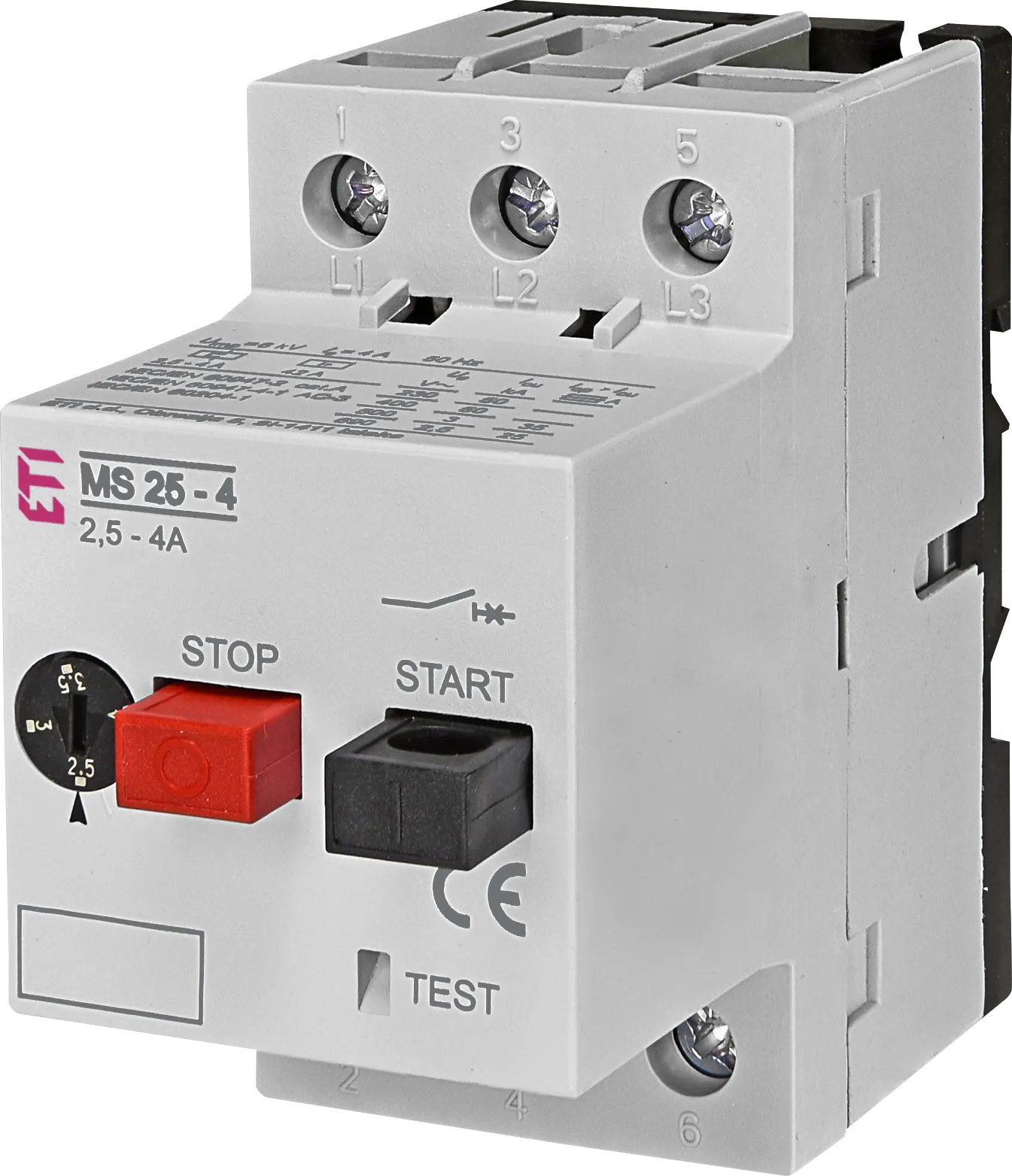

004600080
MS25-4
Class name:
Mot.protec.circuit breaker
Current setting range (A):
2,5 - 4,0
Short-circuit release Irm (A):
56
Rated operation power at AC3 (kW):
1,1…1,5

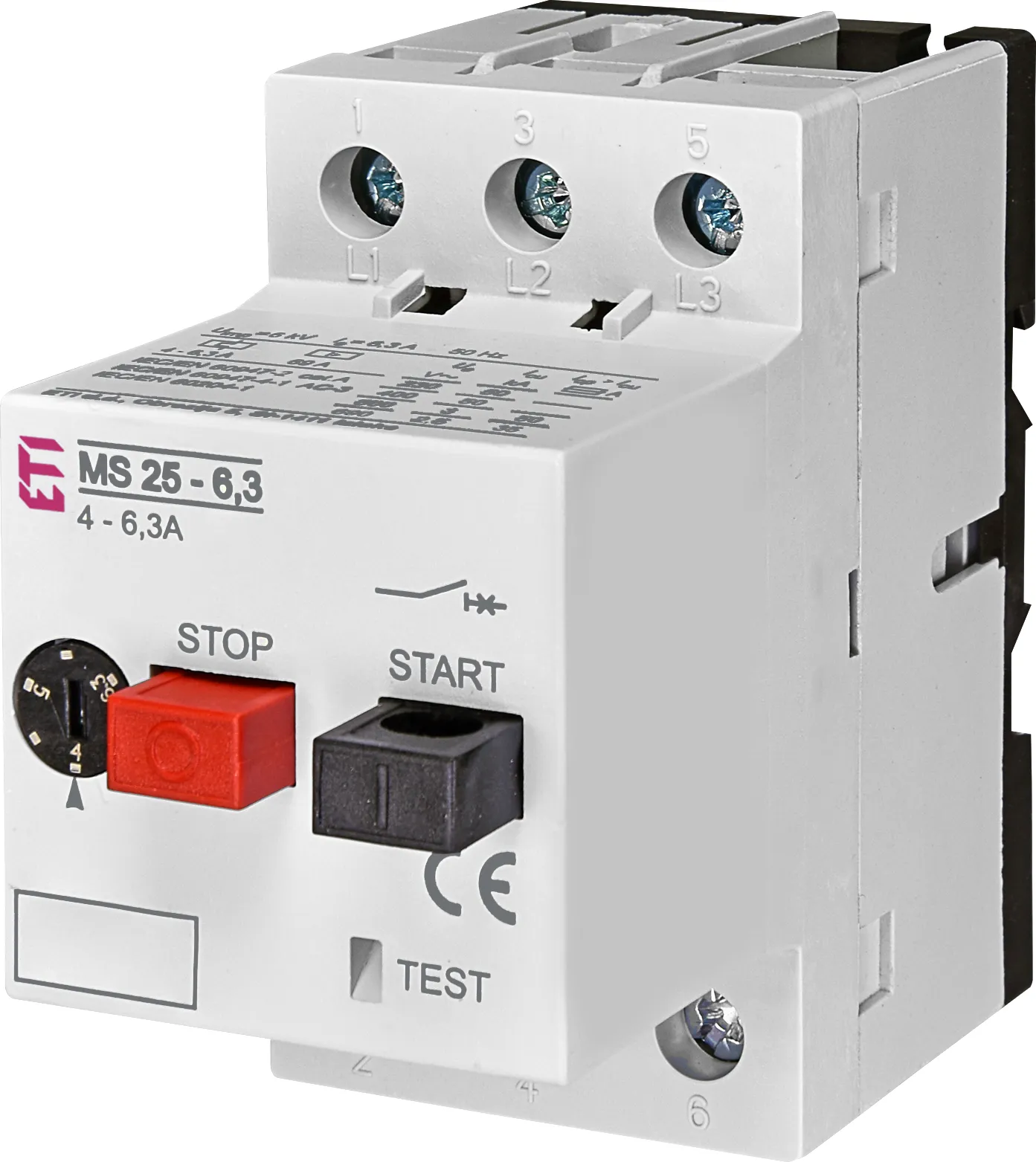

004600090
MS25-6,3
Class name:
Mot.protec.circuit breaker
Current setting range (A):
4,0 - 6,3
Short-circuit release Irm (A):
88
Rated operation power at AC3 (kW):
2,2…2,5
>
>
