Harmonic filters
Items:
0
004656800

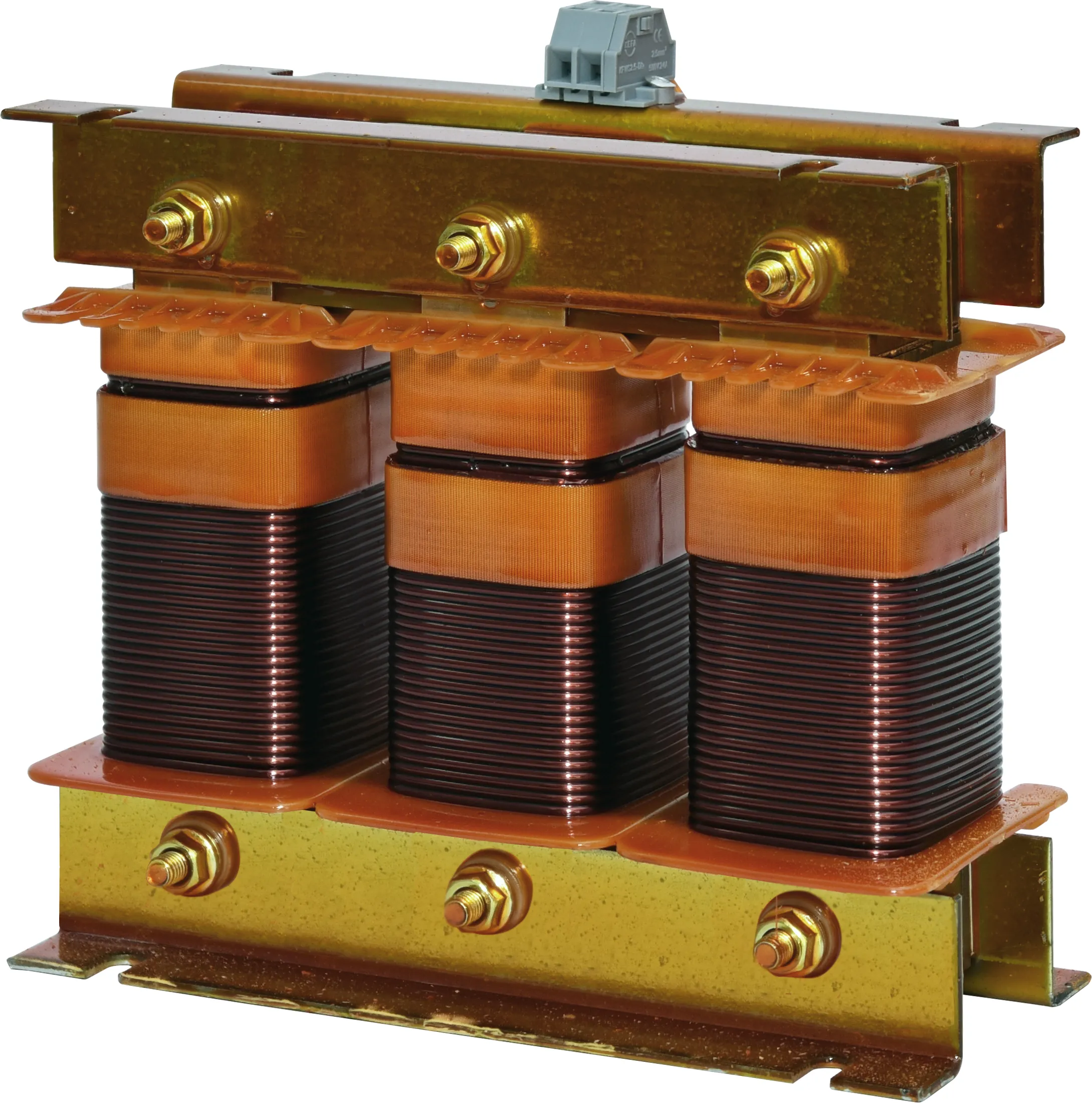

HFL 7/5 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 7,2
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 5
004656801
HFL 7/10 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 14,4
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 10
004656802

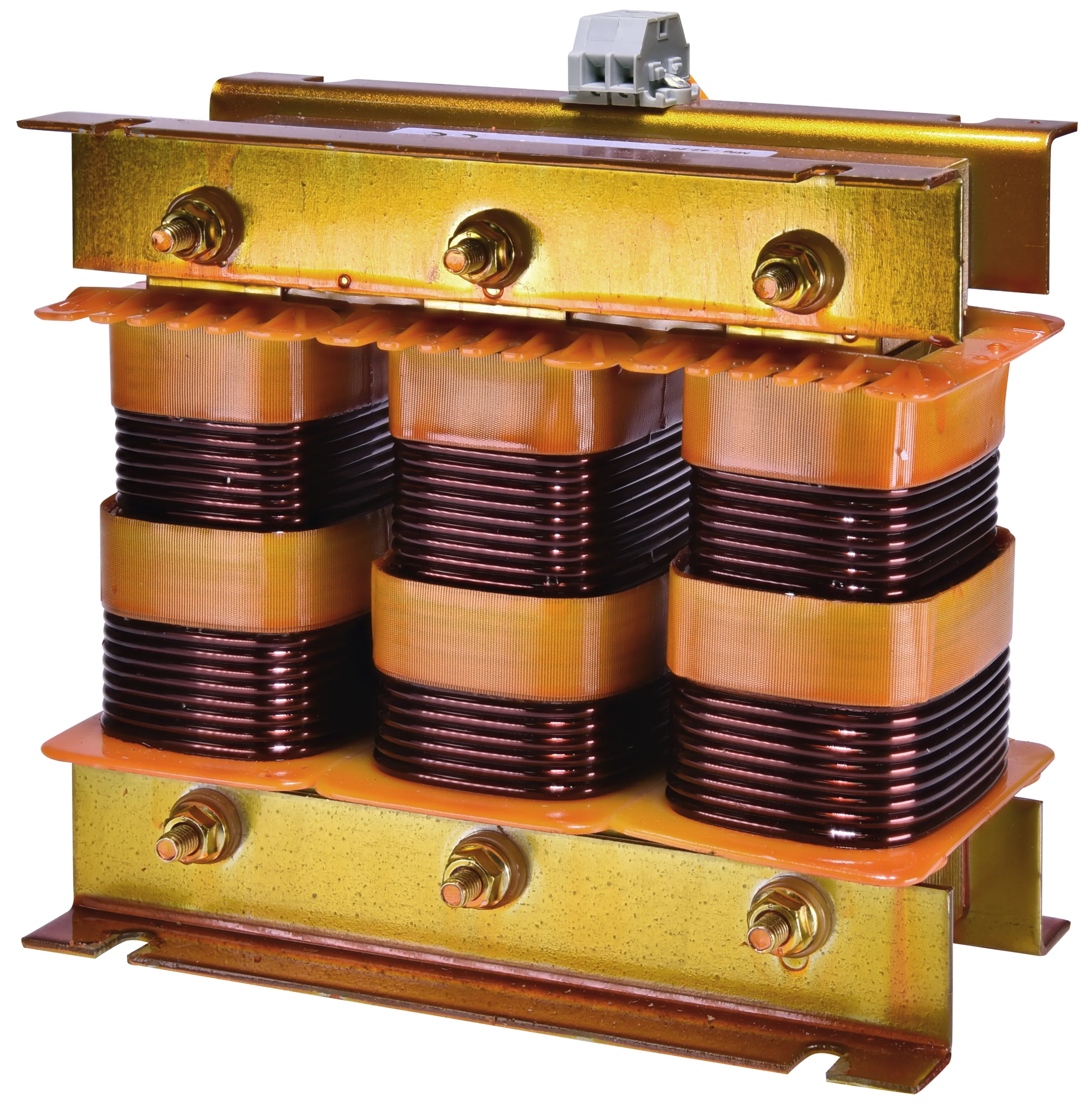

HFL 7/12,5 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 18
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 12,5
004656803
HFL 7/15 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 21,7
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 15
004656804
HFL 7/20 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 28,9
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 20
004656805

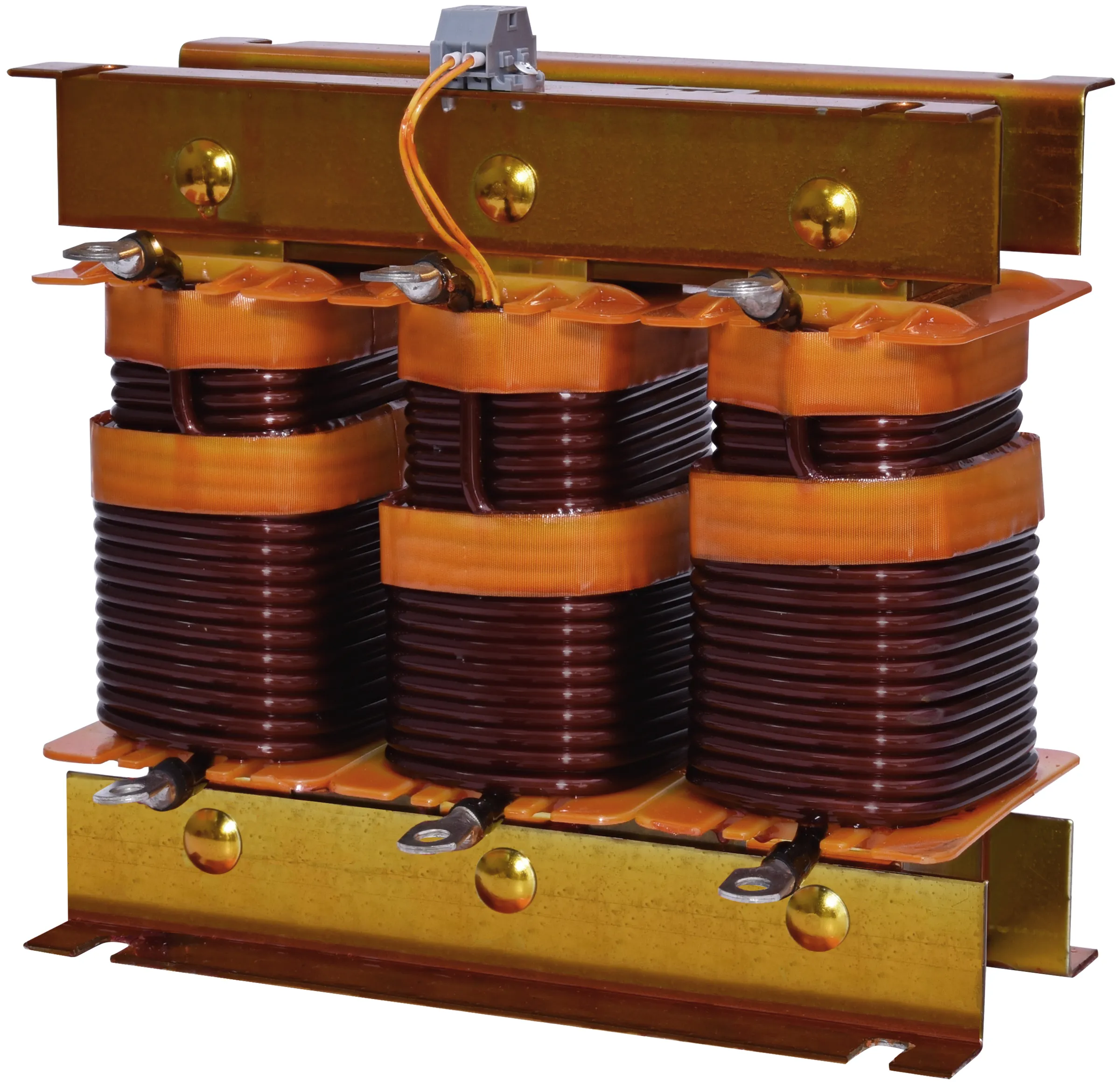

HFL 7/25 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 36,1
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 25
004656806
HFL 7/30 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 43,3
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 30
004656807

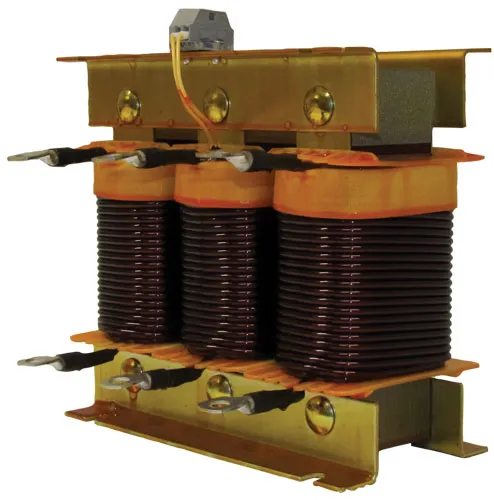

HFL 7/40 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 57,7
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 40
004656808

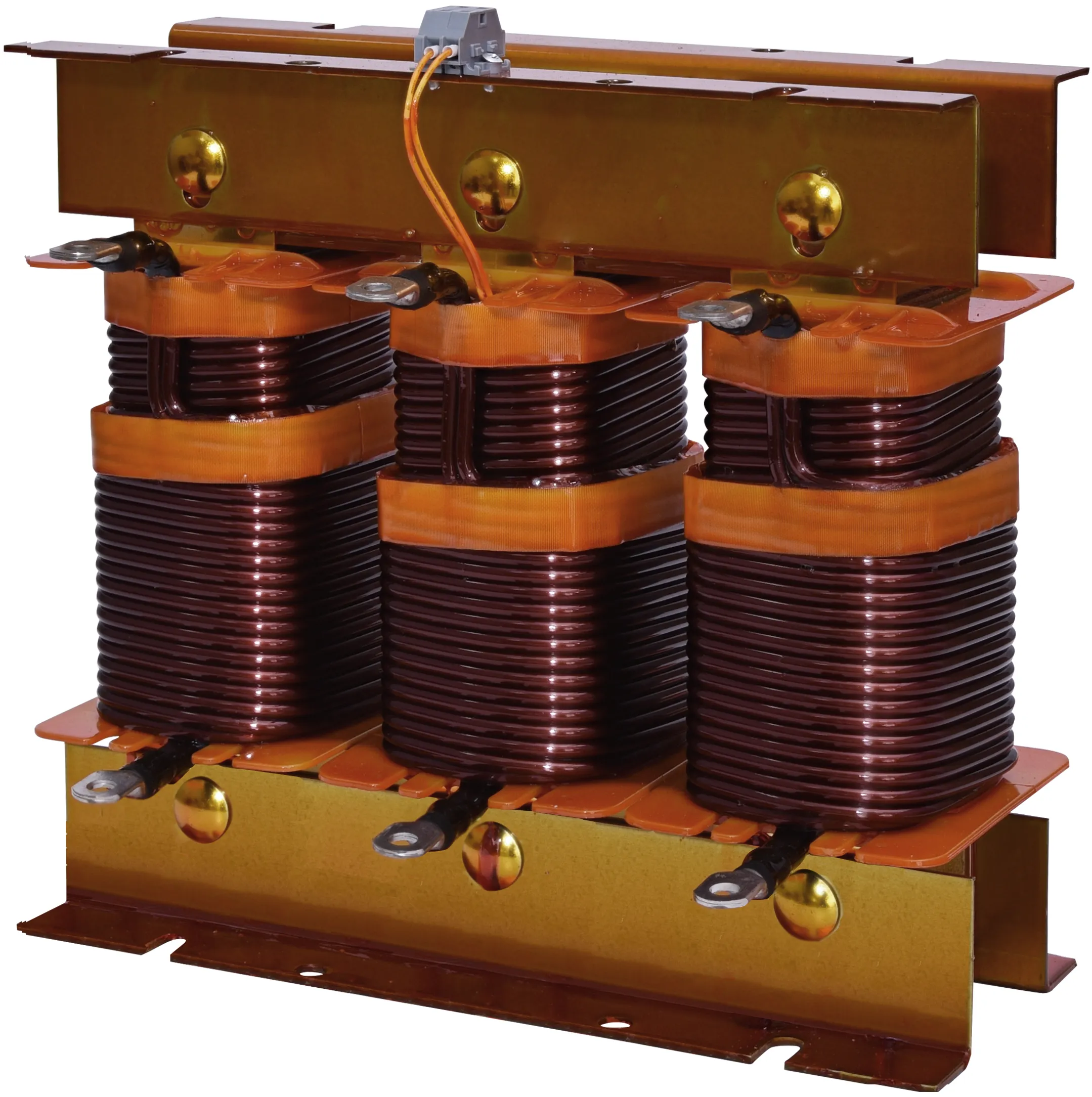

HFL 7/50 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 72,2
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 50
004656809
HFL 7/100 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 144
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 100
004656820
HFL 7/20 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 28,9
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 20
004656821
HFL 7/25 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 36,1
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 25
004656822
HFL 7/30 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 43,3
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 30
004656823
HFL 7/40 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 57,7
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 40
004656824
HFL 7/50 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 72,2
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 50
004656810
HFL 14/5 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 7,2
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 5
004656811
HFL 14/10 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 14,4
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 10
004656812
HFL 14/12,5 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 18
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 12,5
004656813
HFL 14/15 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 21,7
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 15
004656814
HFL 14/20 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 28,9
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 20
004656815
HFL 14/25 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 36,1
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 25
004656816
HFL 14/30 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 43,3
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 30
004656817
HFL 14/40 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 57,7
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 40
004656818
HFL 14/50 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 72,2
- Rated voltage (V):
- 400
- Type:
- copper wire
- Reactive power (kVAr):
- 50
004656830
HFL 14/20 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 28,9
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 20
004656831
HFL 14/25 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 36,1
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 25
004656832
HFL 14/30 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 43,3
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 30
004656833
HFL 14/40 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 57,7
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 40
004656834
HFL 14/50 Al
- Class name:
- Detuning reactor
- Rated current (A):
- 72,2
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 50
