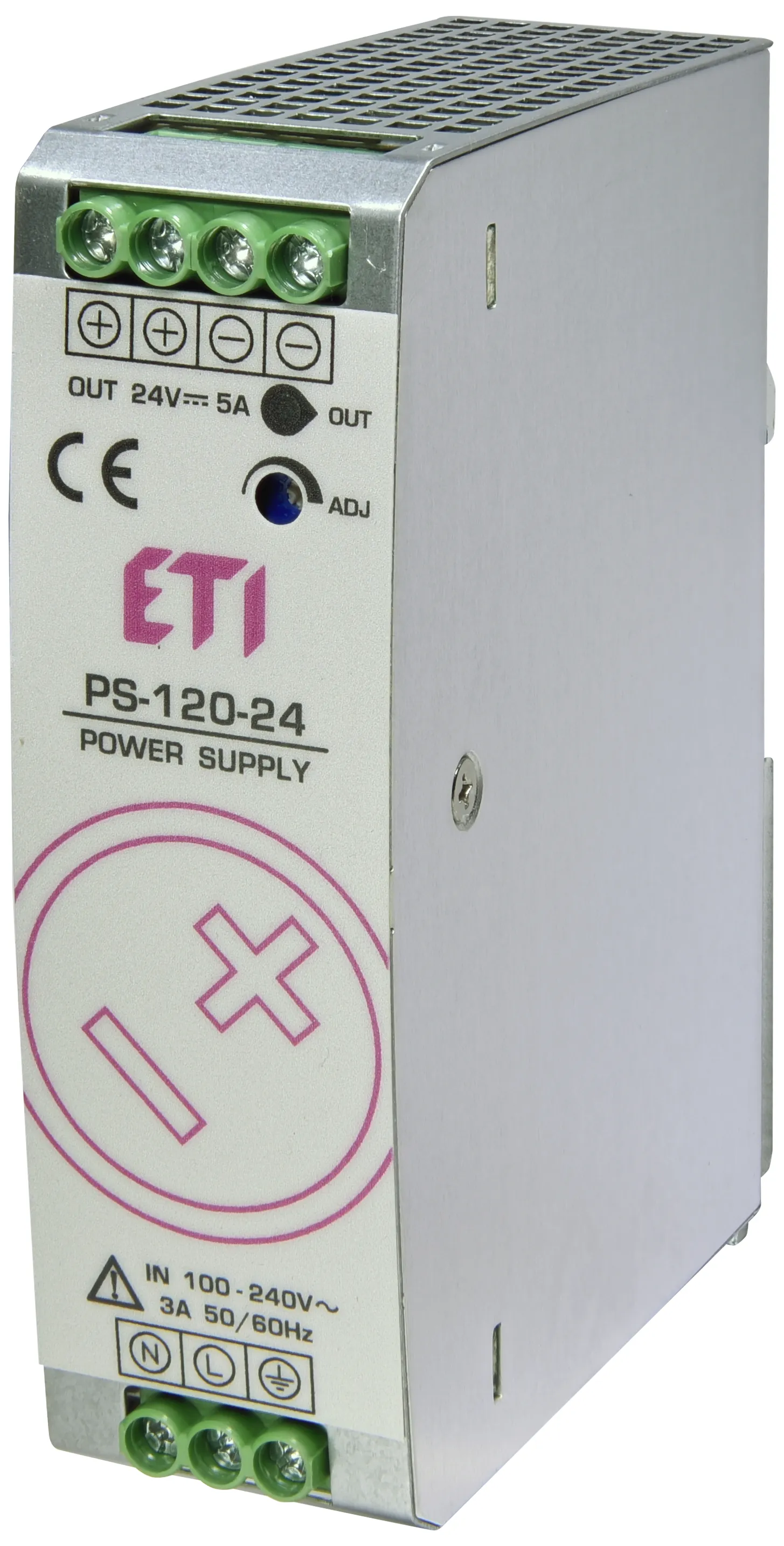

Power supply PS-120-24 004656682
Specifications
- ETI Code:
- 004656682
- Description:
- PS-120-24
- Class name:
- Power supply
- Mounting:
- DIN rail
- IP rating:
- IP20
- rated_supply_voltage_ac:
- 100 - 240
- rated_supply_voltage_dc:
- 140 - 340
- Output voltage:
- 24 V
- Output current (A):
- 5
- Rated Frequency (Hz):
- 47 - 63
Documents
Logistic Data
Product
- Net weight of the product
- 0.59 kg
- Customs tariff
- 85044060
- logis_net_width
- 40 mm
- logis_net_height
- 126 mm
- logis_net_depth
- 120 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895832447
- Transport packaging weight
- 0.59 kg
- Pallet quantity
- 1600
ETIM Clasification
- Classification
- EC002540
- Class name
- DC-power supply
- Type of drive
- 47 - 63
- Degree of protection (IP), front side
- IP20
- Mounting method
- DIN rail
- Rated control supply voltage DC
- 140 - 340
- Output voltage
- 24 V
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 24V
- Max. output current 1
- 5A
- Nominal value output voltage 1
- 24V
- Rated supply voltage AC 50 Hz
- 100-240V
- Rated supply voltage DC
- 140-340V
- Output voltage stabilized
- Yes
- Power output
- 120W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Width
- 40mm
- Height
- 130mm
- Depth
- 120mm
- Degree of protection (IP)
- IP20
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
PS-120-24
