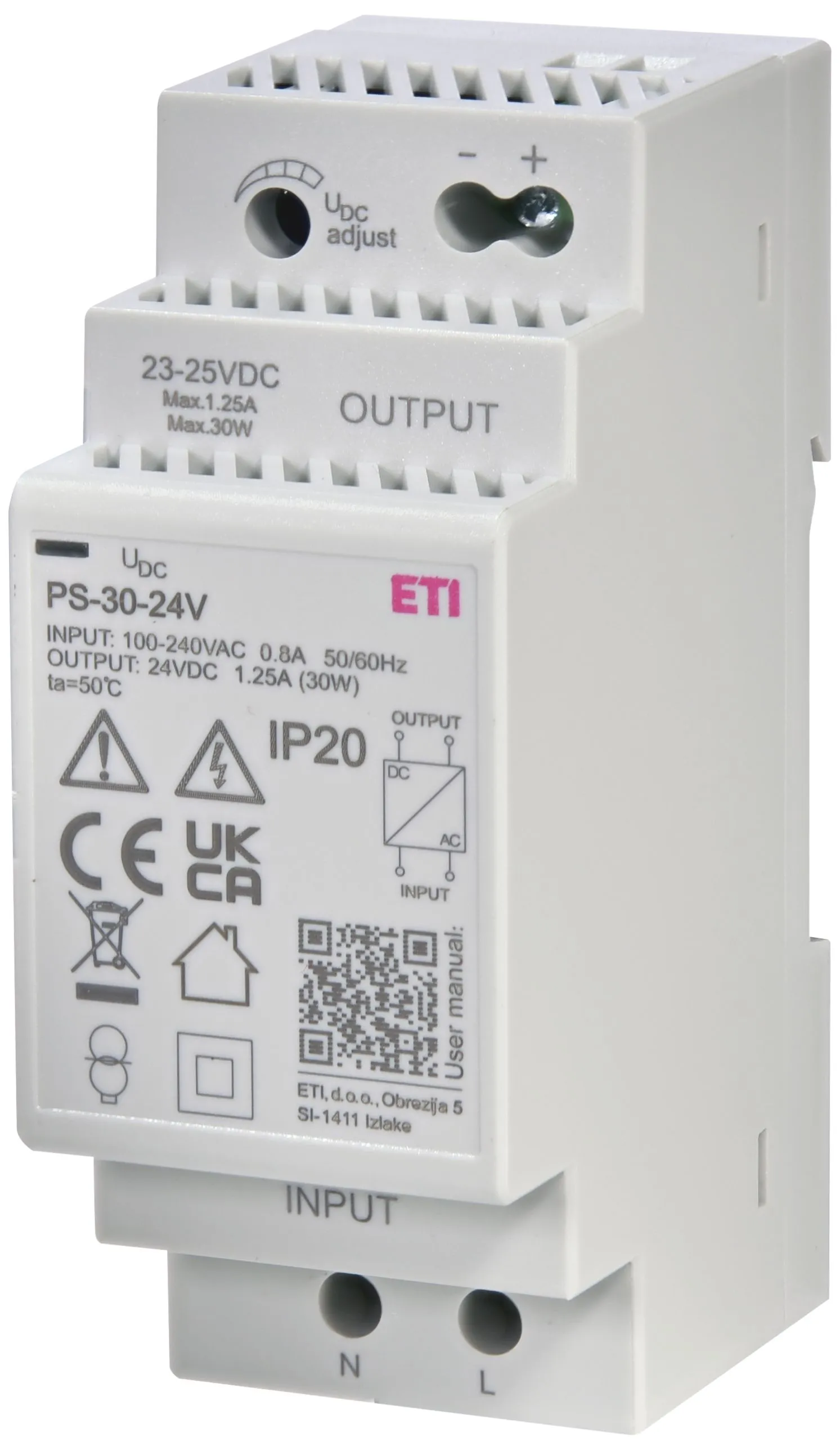

Power supply PS-30-24 002470133
Specifications
- ETI Code:
- 002470133
- Description:
- PS-30-24
- Class name:
- Power supply
- Mounting:
- DIN rail
- IP rating:
- IP20
- rated_supply_voltage_ac:
- 100 - 250
- rated_supply_voltage_dc:
- not applicable
- Output voltage:
- 24 V
- Output current (A):
- 1,25
- Rated Frequency (Hz):
- 50 / 60
Documents
Logistic Data
Product
- Net weight of the product
- 0.068 kg
- Customs tariff
- 85364900
- logis_net_width
- 52 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 65 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895473268
- Transport packaging weight
- 0.15 kg
- Pallet quantity
- 5143
ETIM Clasification
- Classification
- EC002540
- Class name
- DC-power supply
- Mounting method
- DIN rail
- Rated control supply voltage DC
- Not applicableV
- Output voltage
- 24 V
- Type of drive
- 50 / 60
- Degree of protection (IP), front side
- IP20
- Voltage type (supply voltage)
- AC
- Type of electric connection
- Screw connection
- 1st secondary output voltage
- 24V
- Rated control supply voltage AC 50 Hz
- 24…24V
- Max. output current 1
- 1.25A
- Nominal value output voltage 1
- 24V
- Rated supply voltage AC 50 Hz
- 100-240V
- Degree of protection (IP)
- IP20
- Output voltage stabilized
- Yes
- Power output
- 30W
- Stabilized
- Yes
- Rail mounting possible
- Yes
- Modular version
- Yes
- Width in number of modular spacings
- 2
- Width
- 35mm
- Height
- 90mm
- Depth
- 58mm
