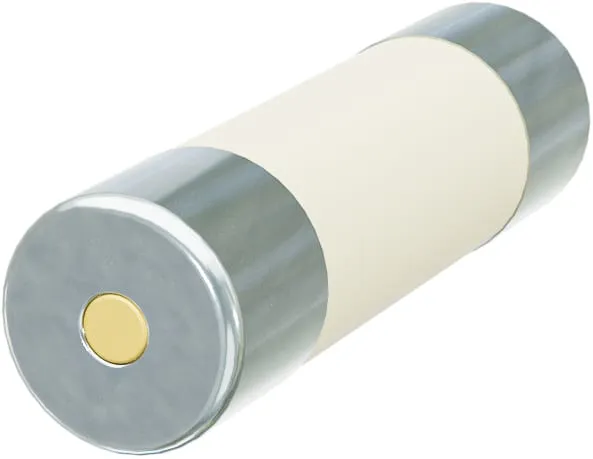

Fuse link CH14x51/P aR 20A/690V 002635111
Specifications
- ETI Code:
- 002635111
- Description:
- CH14x51/P aR 20A/690V
- Class name:
- Fuse link
- Product group:
- Semiconductor Protection
- Type:
- CH
- Size:
- 14x51
- Rated current (A):
- 20
- Rated AC voltage (V):
- 690
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 200
- Breaking capacity DC (kA):
- 50
- Application:
- For protection of semiconductor devices
- Indicator:
- Striker pin status indicator
- Power dissipation (W):
- 6
- Operating joule integral (A2s):
- 180
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895362616
- Net weight of the product
- 0.022 kg
- Customs tariff
- 85361050
- logis_net_width
- 14 mm
- logis_net_height
- 51 mm
- logis_net_depth
- 14 mm
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895356349
- Transport packaging weight
- 0.22 kg
- Pallet quantity
- 30000
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 20A
