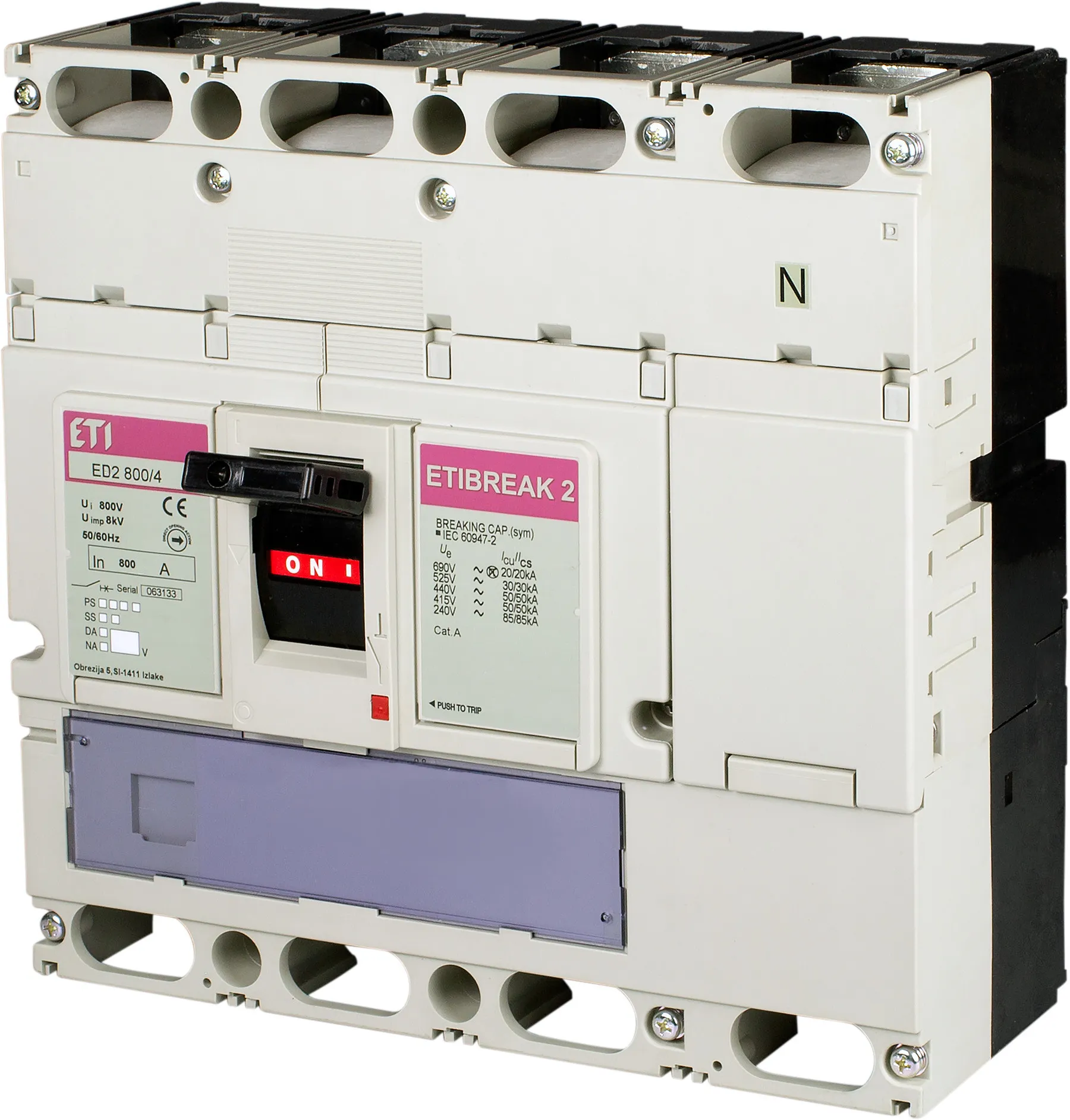

Switch disconnector ED2 800/4 004672380
Specifications
- ETI Code:
- 004672380
- Description:
- ED2 800/4
- Class name:
- Switch disconnector
- Rated current (A):
- 800
- Number of poles:
- 4
- Connection type:
- front connection
- Standards:
- IEC 60947-3
- Rated impulse withstand voltage Uimp (kV):
- 8kV
- Utilization category:
- AC-23A, DC-22A
- Rated short-circuit making capacity Icm:
- 17
- Rated short-time withstand current Icw at 0,3s (kA):
- 10
- Rated operational voltage AC (V):
- 690
- Rated operational voltage DC (V):
- 250
- Rated insulation voltage (V):
- 800V
Documents
Logistic Data
Product
- Net weight of the product
- 11.5 kg
- Customs tariff
- 85362090
- logis_net_width
- 280 mm
- logis_net_height
- 273 mm
- logis_net_depth
- 145 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 5904723006231
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895665588
- Transport packaging weight
- 11.5 kg
- Pallet quantity
- 70
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Rated permanent current Iu
- 800A
- Conditioned rated short-circuit current Iq
- 70kA
- Number of poles
- 4
- Motor drive optional
- Yes
- Voltage release optional
- Yes
- Device construction
- Built-in device fixed built-in technique
- Suitable for floor mounting
- Yes
- Type of control element
- Rocker lever
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
