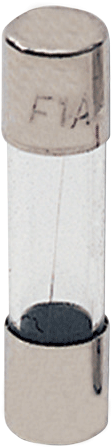

Fuse link Mini fuse 5x20 T 250mA/250V 006710042
Specifications
- ETI Code:
- 006710042
- Description:
- Mini fuse 5x20 T 250mA/250V
- Class name:
- Fuse link
- Rated current (A):
- 0,25
- Type:
- CH
- Size:
- 5x20
- Characteristics:
- T
- Rated AC voltage (V):
- 250
- Breaking capacity AC (kA):
- 0,035
- Application:
- Electronic devices protection
- Standards:
- IEC 60127-1, IEC 60127-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895907169
- Net weight of the product
- 0.005 kg
- Customs tariff
- 85361010
- logis_net_width
- 5 mm
- logis_net_height
- 20 mm
- logis_net_depth
- 5 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 8024873015567
- Basic packaging weight
- 0.05 kg
Transport packaging
- Transport packaging quantity
- 100
- EAN code for a transport packaging
- 3838895705833
- Transport packaging weight
- 0.51 kg
- Pallet quantity
- 160000
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Breaking capacity
- 0,035
- Utilization category
- T
- Application
- Electronic devices protection
- Construction size
- CH5
- Max. rated operation voltage Ue AC
- 250
- Release characteristic
- Time-lag (T)
- Model
- Glass fuse
- Rated current
- 0,25A
- Rated voltage
- 250V
- Dimensions
- 5x20 mm
