Shunt trip release DA EFI 002069004
Specifications
- ETI Code:
- 002069004
- Description:
- DA EFI
- Class name:
- Shunt trip release
- Function:
- Shunt trip release
- For use with:
- EFI (16-80 A)
- Rated voltage (V):
- 230
- Max. inrush current (A):
- 0.8
- Rated Frequency (Hz):
- 50/60
- Rated cross section:
- 1-2.5
- Standards:
- EN 60715
Documents
Logistic Data
Product
- Net weight of the product
- 36 g
- Customs tariff
- 85389099
- logis_net_width
- 9 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 63 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895524878
- Basic packaging weight
- 0.045 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895524885
- Transport packaging weight
- 0.6 kg
- Pallet quantity
- 2880
ETIM Clasification
- Classification
- EC001023
- Class name
- Shunt release (for power circuit breaker)
- Type of drive
- 50/60
- Rated voltage
- 230
- Connectable conductor cross section multi-wired
- 1-2.5
- Rated control supply voltage AC 50 Hz
- 230…230V
- Voltage type for actuating
- AC
- Type of electric connection
- Screw connection
- Suitable for overload relay
- Yes

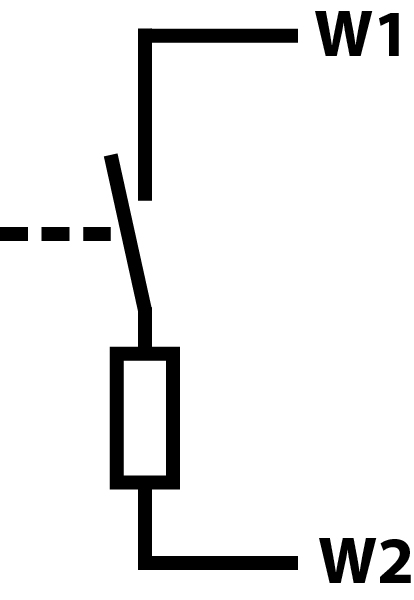

Images & Diagrams
