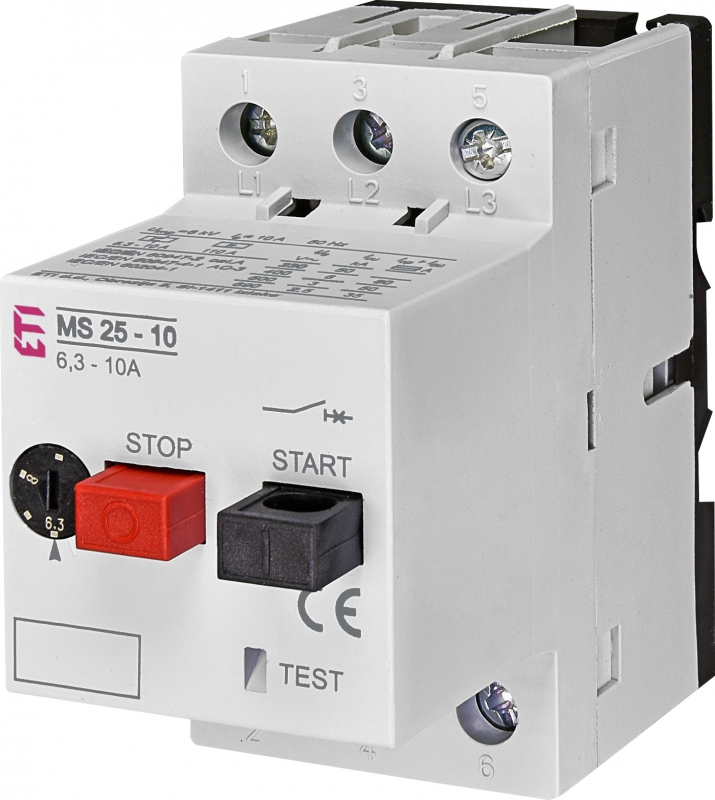

Mot.protec.circuit breaker MS25-10 004600100
Specifications
- ETI Code:
- 004600100
- Description:
- MS25-10
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 6,3 - 10
- Short-circuit release Irm (A):
- 110
- Rated operation power at AC3 (kW):
- 3…4
- Max. rated operational voltage (V AC):
- 690
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.255 kg
- Customs tariff
- 85365019
- logis_net_width
- 45 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 87 mm
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895576372
- Basic packaging weight
- 0.25 kg
Level 2 Packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3838895576389
- Transport packaging weight
- 12.5 kg
- Pallet quantity
- 3200
ETIM Clasification
- Classification
- EC000074
- Class name
- Motor protection circuit-breaker
- Overload release current setting
- 10…10A
- Adjustment range undelayed short-circuit release
- 6.3…6.3A
- Phase failure sensitive
- Yes
- Switch off technique
- Thermomagnetic
- Rated operating voltage
- 400…400V
- Rated operation power at AC-3, 230 V
- 3/4kW
- Rated operation power at AC-3, 400 V
- 3/4kW
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Push button
- With integrated auxiliary switch
- Yes
- With integrated under voltage release
- Yes
- Number of poles
- 3
- Degree of protection (IP)
- IP20
