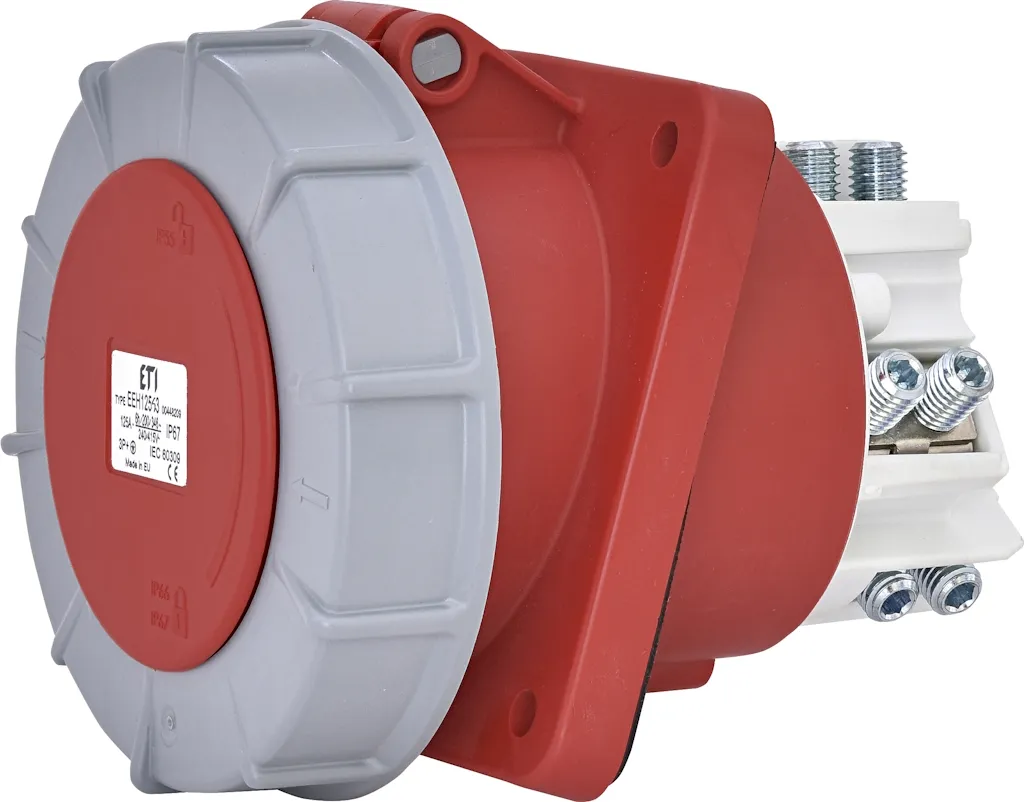

CEE Socket EEH 12543 004482090
Specifications
- ETI Code:
- 004482090
- Description:
- EEH 12543
- Class name:
- CEE Socket
- Rated voltage (V):
- 400
- Type: socket/plug:
- Built-in wall socket
- Number of poles:
- 3+PE
- IP rating:
- IP67
Documents
Logistic Data
Product
- Customs tariff
- 85366990
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895674931
- Basic packaging weight
- 0.89 kg
Transport packaging
- Transport packaging quantity
- 2
- EAN code for a transport packaging
- 3838895674948
- Transport packaging weight
- 1.845 kg
- Pallet quantity
- 258
ETIM Clasification
- Classification
- EC001317
- Class name
- Panel-mounted CEE socket outlet
- IEC-amperage
- 125A
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Number of poles
- 3
- Clock hour position
- 6h
- Identification colour
- Red
- Degree of protection (IP)
- IP67
- Connection system
- Screwed terminal
- Insert direction
- Straight
- Material
- Plastic
