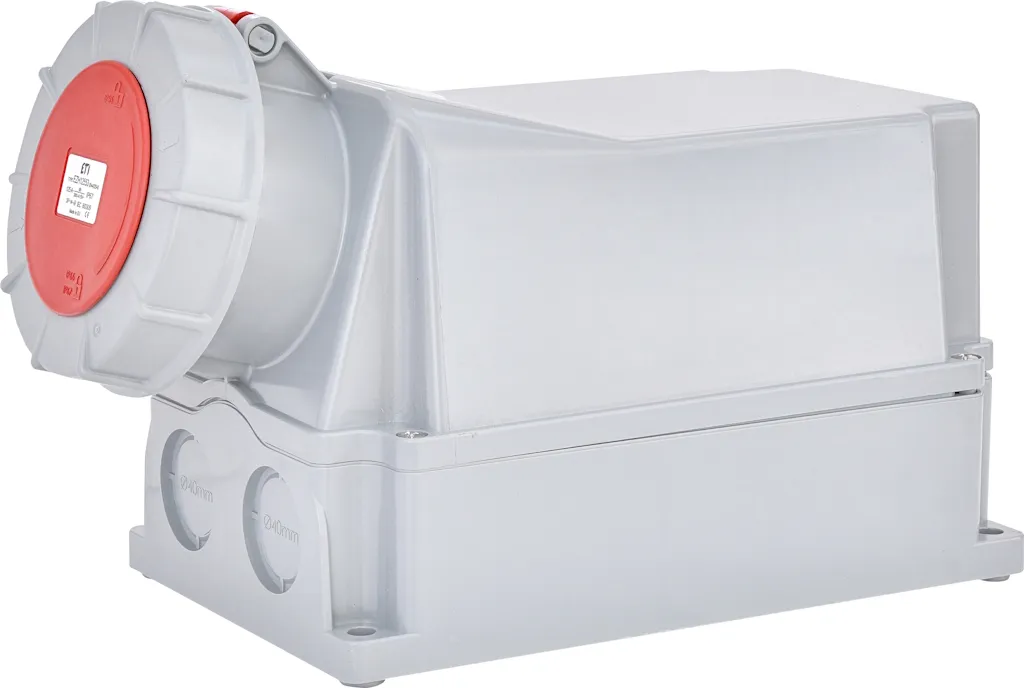

CEE Socket EZH 12553 004482049
Specifications
- ETI Code:
- 004482049
- Description:
- EZH 12553
- Class name:
- CEE Socket
- Rated voltage (V):
- 400
- Type: socket/plug:
- Wall socket
- Number of poles:
- 3+N+PE
- IP rating:
- IP67
Documents
Logistic Data
Product
- Net weight of the product
- 1.95 kg
- Customs tariff
- 85366990
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895674115
- Basic packaging weight
- 1.95 kg
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895674122
- Transport packaging weight
- 1.95 kg
- Pallet quantity
- 140
ETIM Clasification
- Classification
- EC001321
- Class name
- CEE socket outlet
- Model
- Surface mounted (plaster)
- IEC-amperage
- 125A
- Number of poles
- 5
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Clock hour position
- 6h
- Identification colour
- Red
- Degree of protection (IP)
- IP67
- Connection system
- Screwed terminal
- Cable entry
- Gland nut
- Material
- Plastic
- Type of fastening
- Inner lying mounting
