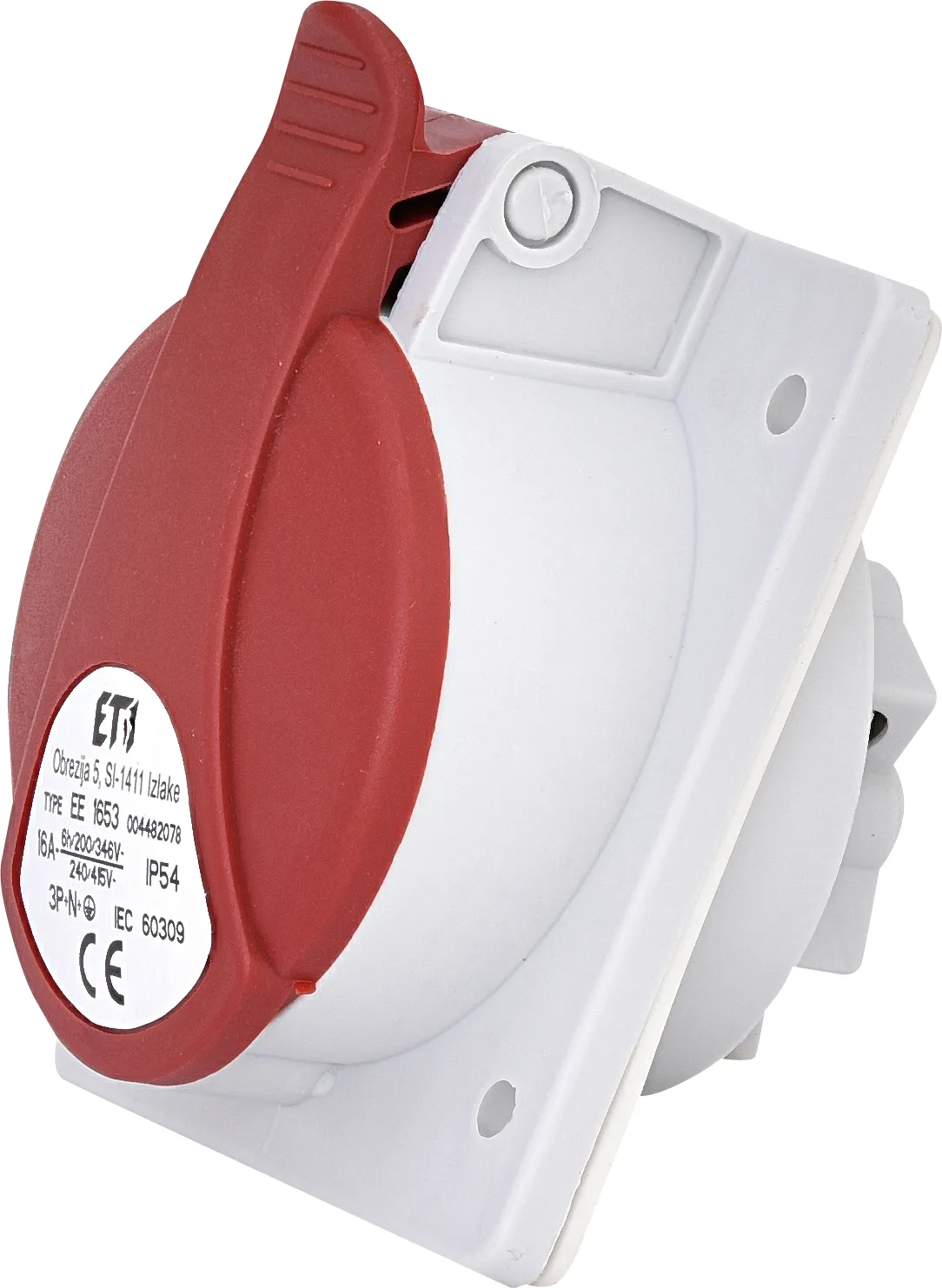

CEE Socket EE 1653 004482078
Specifications
- ETI Code:
- 004482078
- Description:
- EE 1653
- Class name:
- CEE Socket
- Rated current (A):
- 16
- Rated voltage (V):
- 400
- Number of poles:
- 3+N+PE
- IP rating:
- IP54
- Type: socket/plug:
- Built-in wall socket
Documents
Logistic Data
Product
- Net weight of the product
- 0.136 kg
- Customs tariff
- 85366990
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895674702
- Transport packaging weight
- 1.68 kg
- Pallet quantity
- 2520
ETIM Clasification
- Classification
- EC001317
- Class name
- Panel-mounted CEE socket outlet
- IEC-amperage
- 16A
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Rated voltage
- 400V
- Rated frequency
- 50Hz
- Number of poles
- 5
- Clock hour position
- 6h
- Identification colour
- Red
- Degree of protection (IP)
- IP54
- Connection system
- Screwed terminal
- Insert direction
- Straight
- Cable entry
- None
- Material
- Plastic
- Flange size vertical
- 85mm
- Drill hole distance vertical
- 60mm
- Flange size horizontal
- 75mm
- Drill hole distance horizontal
- 60mm
