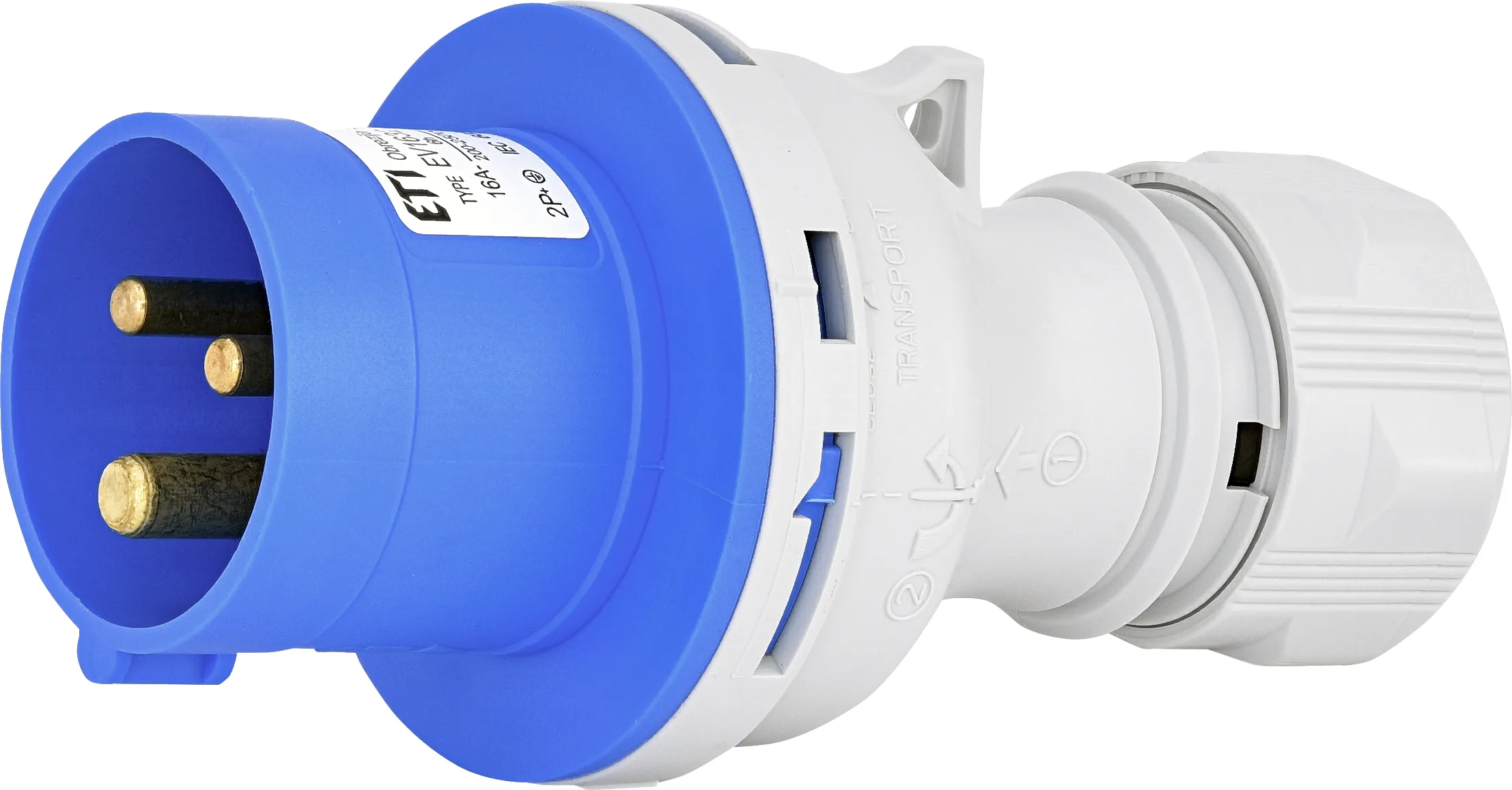

CEE Plug EV 1632 004482016
Specifications
- ETI Code:
- 004482016
- Description:
- EV 1632
- Class name:
- CEE Plug
- Rated current (A):
- 16
- Rated voltage (V):
- 230
- Number of poles:
- 2+PE
- IP rating:
- IP44
- Type: socket/plug:
- Plug
Documents
Logistic Data
Product
- Customs tariff
- 85366990
Transport packaging
- Transport packaging quantity
- 14
- EAN code for a transport packaging
- 3838895673460
- Transport packaging weight
- 1.82 kg
- Pallet quantity
- 1792
ETIM Clasification
- Classification
- EC000140
- Class name
- CEE plug
- IEC-amperage
- 16A
- Number of poles
- 2
- Voltage according to EN 60309-2
- 230 V (50+60 Hz) blue
- Identification colour
- Blue
- Degree of protection (IP)
- IP44
- Connection system
- Screwed terminal
- Cable entry
- Gland nut
- Insert direction
- Straight
- Material
- Plastic
