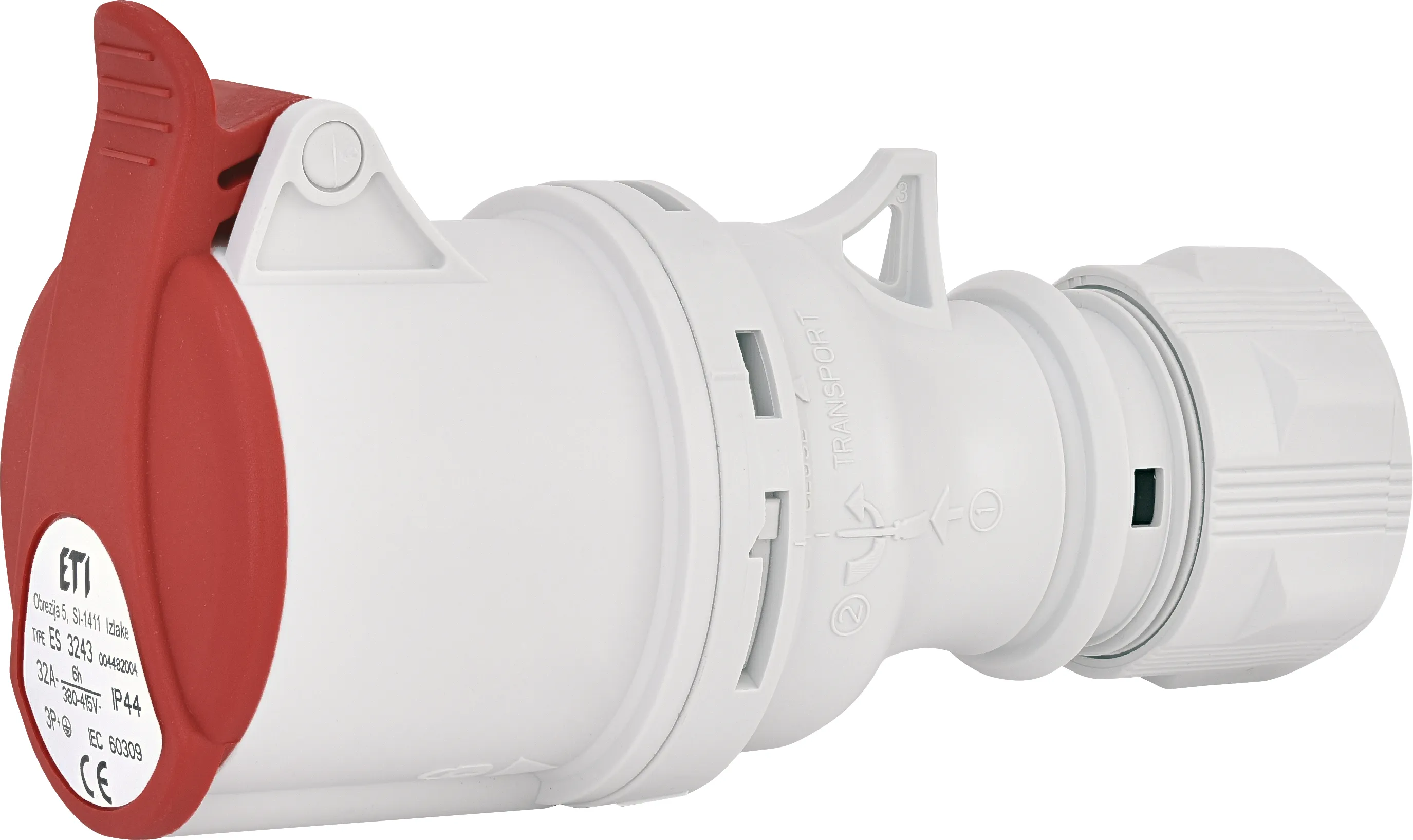

CEE Socket ES 3243 004482004
Specifications
- ETI Code:
- 004482004
- Description:
- ES 3243
- Class name:
- CEE Socket
- Rated current (A):
- 32
- Rated voltage (V):
- 400
- Number of poles:
- 3+PE
- IP rating:
- IP44
- Type: socket/plug:
- Connecting sockets
Documents
Logistic Data
Product
- Net weight of the product
- 0.289 kg
- Customs tariff
- 85366990
Transport packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838895673224
- Transport packaging weight
- 2.61 kg
- Pallet quantity
- 1890
ETIM Clasification
- Classification
- EC001320
- Class name
- CEE coupling
- IEC-amperage
- 32A
- Number of poles
- 4
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Clock hour position
- 6h
- Identification colour
- Red
- Degree of protection (IP)
- IP44
- Connection system
- Screwed terminal
- Insert direction
- Straight
- Cable entry
- Gland nut
- Material
- Plastic
