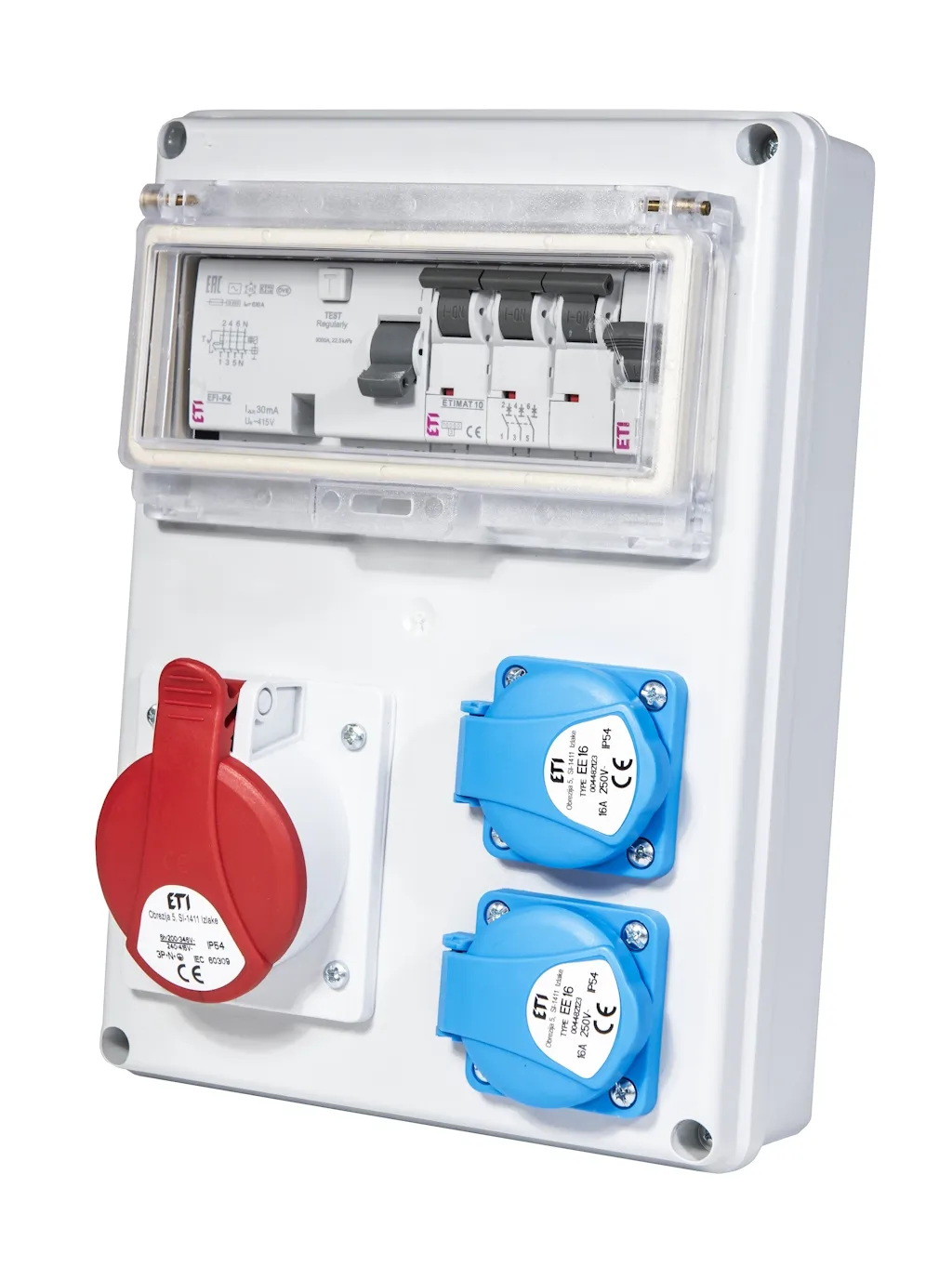

Assemblied distribution box EDS8 RCD 2/1 32 B 001105413
Specifications
- ETI Code:
- 001105413
- Description:
- EDS8 RCD 2/1 32 B
- Class name:
- Assemblied distribution box
- Rated current (A):
- 32
- Rated voltage (V):
- 400
- Type: socket/plug:
- 1x32A(5P), 2xGROUND PIN
- Number of modules:
- 8
- IP rating:
- IP44
- MCBs_applied_EDS:
- 1xB16/1, 1xB32/3
- Additional devices:
- with RCD
Documents
Logistic Data
Product
- Net weight of the product
- 1.5 kg
- Customs tariff
- 85371098
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895966401
- Transport packaging weight
- 1.5 kg
- Pallet quantity
- 146
ETIM Clasification
- Classification
- EC000379
- Class name
- CEE socket outlet combination
- Rated voltage
- 400
- Rated current
- 32
- Degree of protection (IP), front side
- IP44
- CEE socket outlet 32 A
- 1x32A5p400V
- Protection
- Overcurrent switch
- Earth leakage switch
- Earth leakage switch with IFN 30 mA (standard)
- Number of miniature circuit breakers (MCB)
- 2
- Housing material
- Plastic
- Power supply/connection possibility
- 1 cable (branch line)
- Type of mains connection
- Other
- Handling
- Wall mounting
- Degree of protection (IP)
- IP44
- Colour
- Grey
- Height
- 260mm
- Width
- 190mm
- Depth
- 84mm
EDS8 RCD 2/1 32 B
