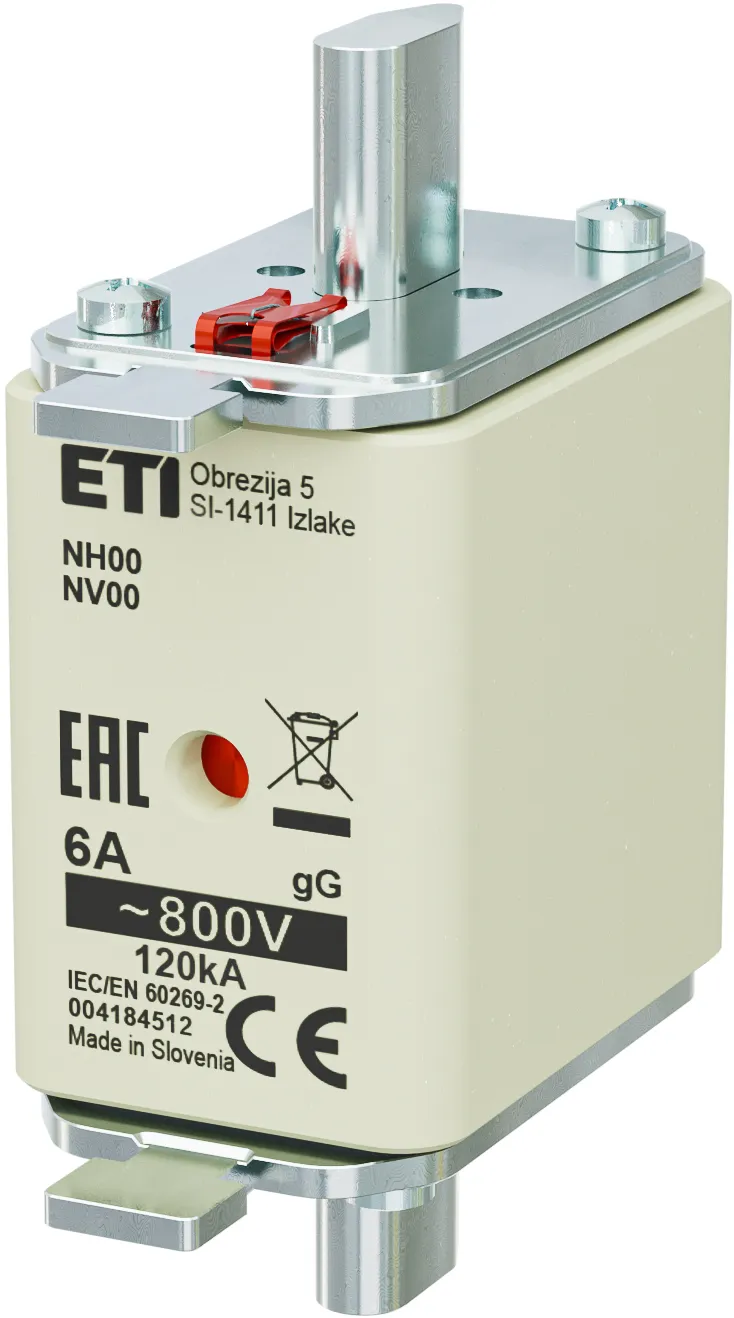

Fuse link NH00 gG 6A/800V 004184512
Specifications
- ETI Code:
- 004184512
- Description:
- NH00 gG 6A/800V
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 6
- Type:
- NH
- Size:
- NH00
- Characteristics:
- gG
- Rated AC voltage (V):
- 800
- Indicator:
- Combination fuse status indicator
- Breaking capacity AC (kA):
- 120
- Operating joule integral (A2s):
- 650
- Prearcing joule integral (A2s):
- 63
- Application:
- For cable protection on 800V a.c. system voltage
- Power dissipation (W):
- 1,9
- Power dissipation (0,7x In) (W):
- 0,8
- Standards:
- IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895946656
- Net weight of the product
- 170 g
- Customs tariff
- 85361010
- logis_net_width
- 30 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 56 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895943495
- Basic packaging weight
- 0.483 kg
Transport packaging
- Transport packaging quantity
- 90
- EAN code for a transport packaging
- 3838895943501
- Transport packaging weight
- 14.84 kg
- Pallet quantity
- 4680
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Max. rated operation voltage Ue AC
- 800
- Breaking capacity
- 120
- Application
- For cable protection on 800V a.c. system voltage
- Construction size
- NH00
- Rated current
- 6
- Rated voltage
- 800
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- Other
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
