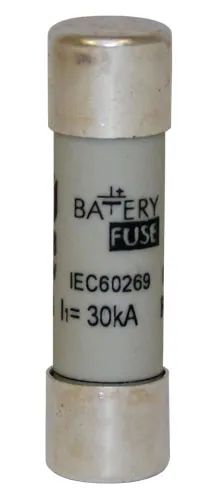

Fuse link CH10x38 gBat 25A/550V DC 002626025
Specifications
- ETI Code:
- 002626025
- Description:
- CH10x38 gBat 25A/550V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 25
- Type:
- CH
- Size:
- 10x38
- Characteristics:
- gBAT
- Rated DC voltage (V):
- 550
- Breaking capacity DC (kA):
- 30
- Operating joule integral (A2s):
- 270
- L/R (ms):
- 10
- Prearcing joule integral (A2s):
- 140
- Application:
- Battery protection
- Power dissipation (W):
- 4,1
- Power dissipation (0,7x In) (W):
- 1,65
- Standards:
- IEC 60269
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400056894
- Net weight of the product
- 8.3 g
- Customs tariff
- 85361050
- logis_net_width
- 10 mm
- logis_net_height
- 38 mm
- logis_net_depth
- 10 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895695394
- Basic packaging weight
- 0.08 kg
Transport packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895695400
- Transport packaging weight
- 4.1 kg
- Pallet quantity
- 84000
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Application
- Battery protection
- Construction size
- CH10
- Rated current
- 25
- Rated voltage DC
- 550
- Size
- 10x38 mm
- Rated voltage
- Other
- Utilization category
- Other
- Nominal current
- 25A
Characteristic
