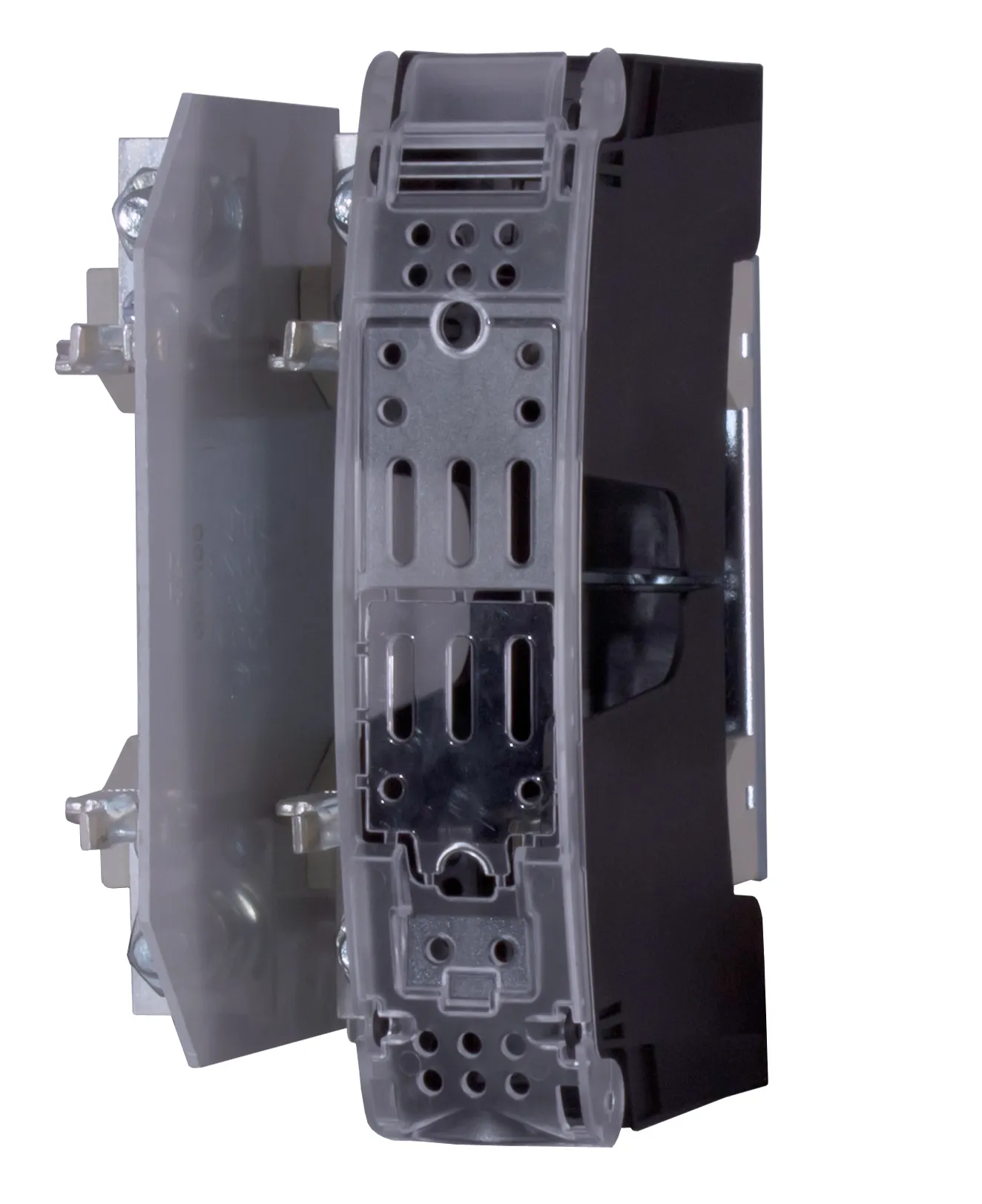

Fuse - base PK 00 P00-2P00 3p S 004132106
Specifications
- ETI Code:
- 004132106
- Description:
- PK 00 P00-2P00 3p S
- Class name:
- Fuse - base
- Product group:
- LV-fuse base
- Size:
- NH00
- Number of poles:
- 3
- Rated current (A):
- 160
- Rated AC voltage (V):
- 690
- Breaking capacity AC (kA):
- 200
- Rated Frequency (Hz):
- 40-60
- Overvoltage Category:
- III
- Mounting:
- Screw-on
- Standards:
- IEC 60269-2
- Ambient temperature (°C):
- -25... 55°C
- Conventional free air thermal current with fuse links (A):
- 160A
- Conventional free air thermal current with solid links (A):
- 200A
- Max. permissable power dissipation per fuse link (W):
- 12
- Rated operating mode:
- uninterrupted
- Pollution degree:
- 3
Documents
Logistic Data
Product
- Net weight of the product
- 0.7 kg
- Customs tariff
- 85389099
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895772323
- Basic packaging weight
- 0.78 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895772330
- Transport packaging weight
- 12.155 kg
- Pallet quantity
- 135
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Construction size
- NH00
- Number of poles
- 3
- Rated current
- 160
