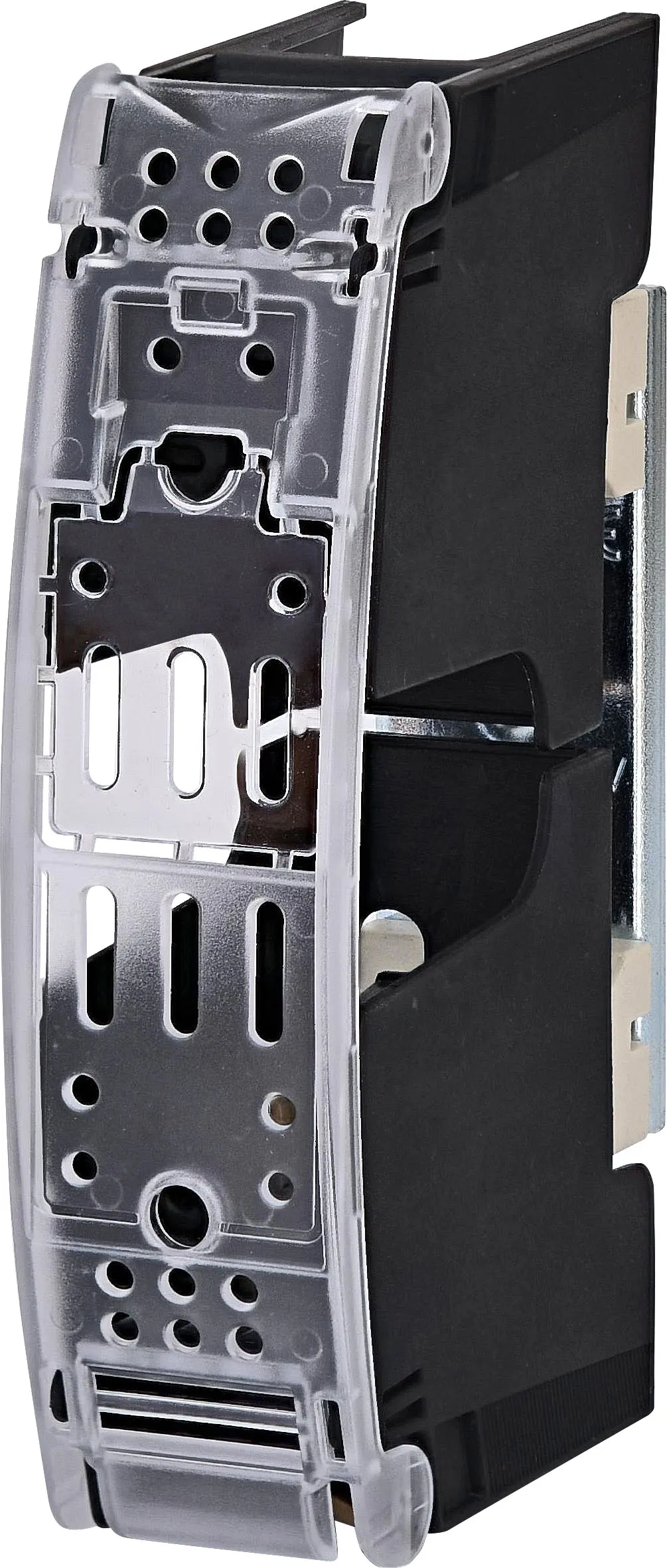

Fuse link base PKIP 00 P00-P00 1p S 004123026

Specifications

ETI Code:
004123026
Description:
PKIP 00 P00-P00 1p S
Class name:
Fuse link base
Product group:
LV-fuse base
Size:
NH00
No. Of poles:
1
Rated current (A):
160
Rated AC voltage (V):
690
Breaking capacity AC (kA):
200
Rated Frequency (Hz):
40-60
Overvoltage Category:
III
Mounting:
Screw-on
Standards:
IEC 60269-2
Ambient temperature (°C):
-25... 55°C
Conventional free air thermal current with fuse links (A):
160A
Conventional free air thermal current with solid links (A):
200A
Max Permissable Power Dissipation per Fuse Link (W):
12
Rated operating mode:
uninterrupted
Pollution Degree:
3

Documents

Product

EAN code for a single product
3838400038760
Net weight of the product
0.255  kg
Customs tariff
85389099

Level 1 Packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895772149
Basic packaging weight
0.845  kg

Level 2 Packaging

Transport packaging quantity
45
EAN code for a transport packaging
3838895772156
Transport packaging weight
13.13  kg
Pallet quantity
405
Classification
EC000067
Class name
Low Voltage HRC fuse base
Construction size
NH00
Number of poles
1
Rated current
160
ETIM Classification – Version 7.0
