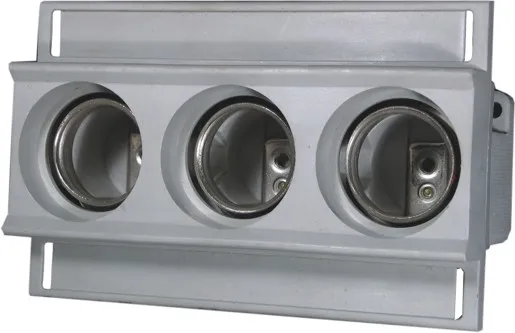

Fuse - base DIII E33 63A EZN 3p+ZP 002323016
Specifications
- ETI Code:
- 002323016
- Description:
- DIII E33 63A EZN 3p+ZP
- Class name:
- Fuse - base
- Mounting type:
- TH 35
- Type:
- EZN/3
- Size:
- DIII
- Dimensions:
- E33
- Number of poles:
- 3
- Rated current (A):
- 63
- Rated AC voltage (V):
- 500
- Connection:
- M5
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895906209
- Net weight of the product
- 0.538 kg
- Customs tariff
- 85389099
- logis_net_width
- 148 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 56 mm
Basic packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895005247
- Basic packaging weight
- 3.11 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895717638
- Transport packaging weight
- 13 kg
- Pallet quantity
- 720
ETIM Clasification
- Classification
- EC000094
- Class name
- D-system fuse base
- Max. rated operation voltage Ue AC
- 500
- Number of knife blade fuse holders
- 3
- Number of poles
- 3
- Construction size
- DIII
- Material
- Porcelain
- Model
- Fitted screw
- Mounting method
- Other
- Rated voltage
- 500V
- Rated current
- 63A
