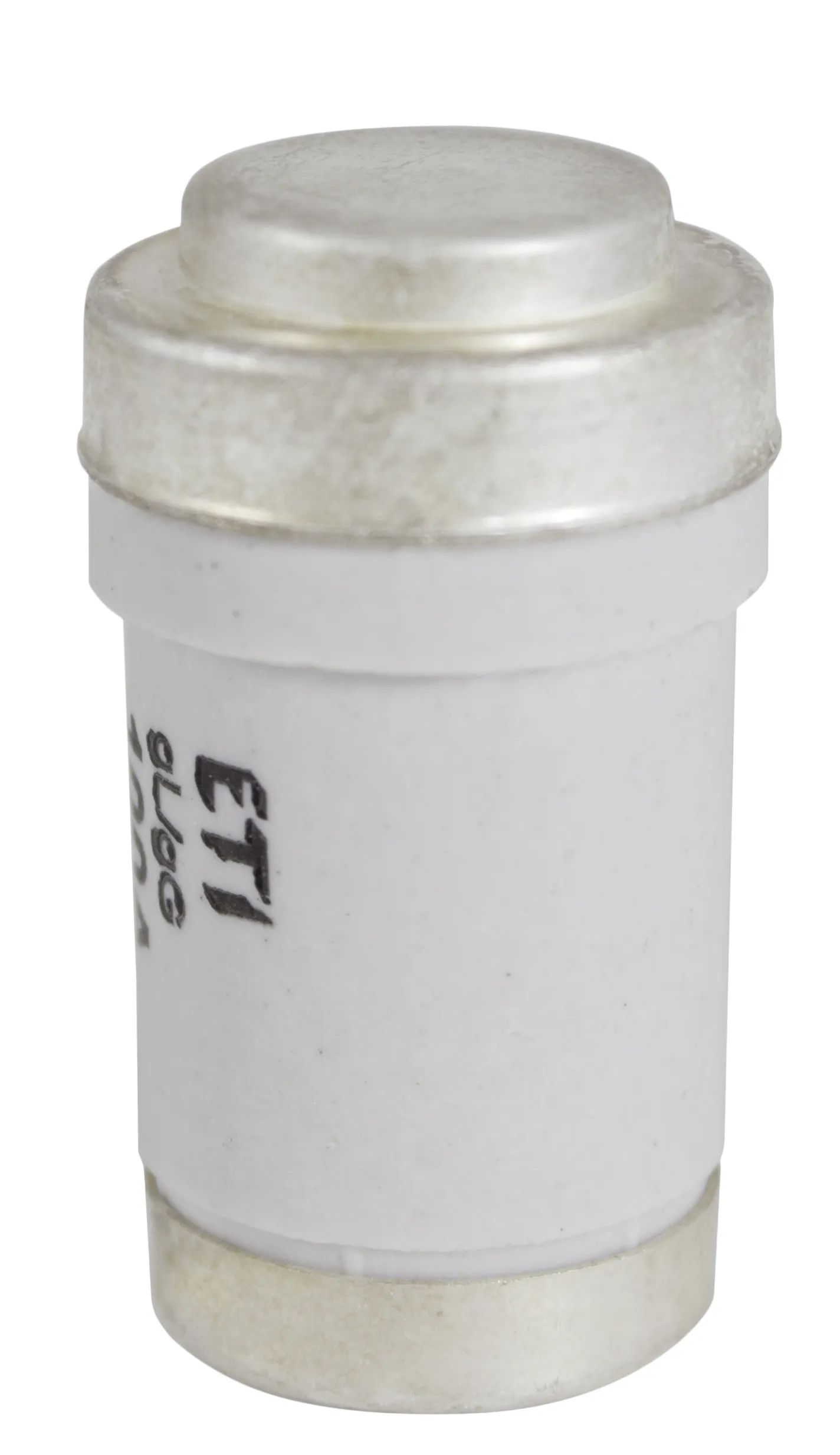

Fuse link D03 gG 80A/400V 002213001
Specifications
- ETI Code:
- 002213001
- Description:
- D03 gG 80A/400V
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 80
- Size:
- D03
- Type:
- D0
- Rated AC voltage (V):
- 400
- Rated DC voltage (V):
- 250
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 50
- Breaking capacity DC (kA):
- 8
- Application:
- For cable protection
- Dimensions:
- M30X2
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 5,3
- Operating joule integral (A2s):
- 34.560
- Prearcing joule integral (A2s):
- 12.960
- Standards:
- DIN EN 60269-1, DIN EN 60269-3
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400029850
- Net weight of the product
- 37 g
- Customs tariff
- 85361090
- logis_net_width
- 23 mm
- logis_net_height
- 23 mm
- logis_net_depth
- 43 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895137351
- Basic packaging weight
- 0.365 kg
Transport packaging
- Transport packaging quantity
- 400
- EAN code for a transport packaging
- 3838895163541
- Transport packaging weight
- 14.9 kg
- Pallet quantity
- 20800
ETIM Clasification
- Classification
- EC001642
- Class name
- D0-system fuse link
- Max. rated operation voltage Ue AC
- 400
- Application
- For cable protection
- Rated voltage DC
- 250
- Breaking capacity
- 50
- Type of fuse status indicator
- Top fuse status indicator
- Construction size
- D03
- Rated current
- 80A
- Rated voltage
- 400V
- Colour code
- Silver
Characteristic
