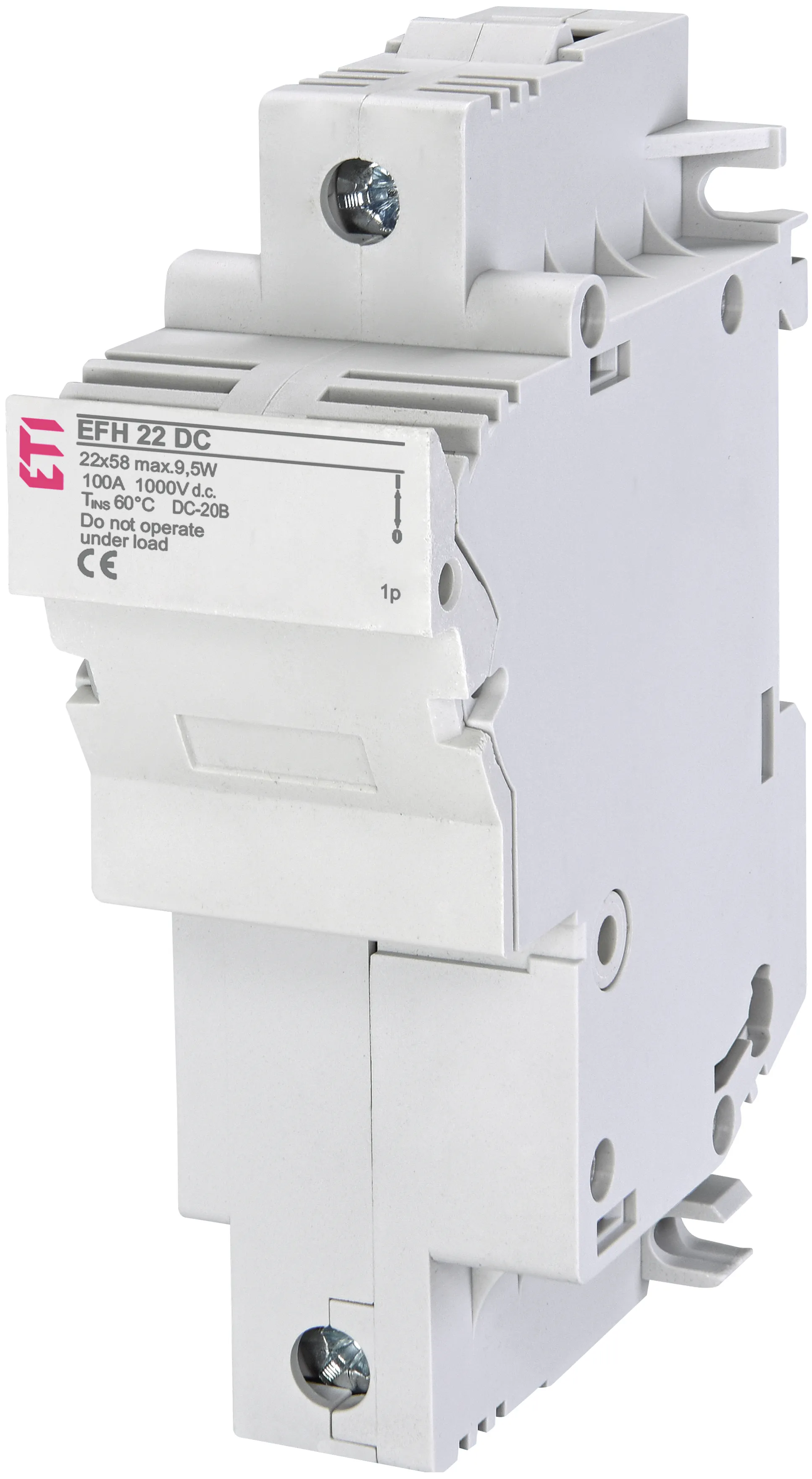

Fuse - base EFH 22 DC 1p 002570201
Specifications
- ETI Code:
- 002570201
- Description:
- EFH 22 DC 1p
- Class name:
- Fuse - base
- Rated current (A):
- 100
- Number of poles:
- 1
- To use with:
- CH gPV fuse-links
- Size:
- 22x58
- Rated DC voltage (V):
- 1000
- Application:
- Photovoltaic Installation
- Product group:
- LV-fuse disconnector
- Utilization category:
- DC-20B
- Connection:
- 4 - 50mm2
- Mounting:
- 35mm DIN rail
- Catalogue Group:
- LV-fuse disconnector
- Ambient temperature (°C):
- -5 + 40°C
- Mounting type:
- TH 35
- Standards:
- IEC60947-1, IEC60947-3
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895910640
- Net weight of the product
- 156 g
- Customs tariff
- 85389099
- logis_net_width
- 36 mm
- logis_net_height
- 120 mm
- logis_net_depth
- 76 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895798026
- Basic packaging weight
- 0.503 kg
Transport packaging
- Transport packaging quantity
- 105
- EAN code for a transport packaging
- 3838895798033
- Transport packaging weight
- 18.377 kg
- Pallet quantity
- 2100
ETIM Clasification
- Classification
- EC002705
- Class name
- Holder for cylindrical fuse
- Construction size
- 22x58
- Number of knife blade fuse holders
- 1
- Application
- Photovoltaic Installation
- Rated current
- 100
- Rated voltage DC
- 1000
- Mounting method
- Other
- Number of poles
- 1
