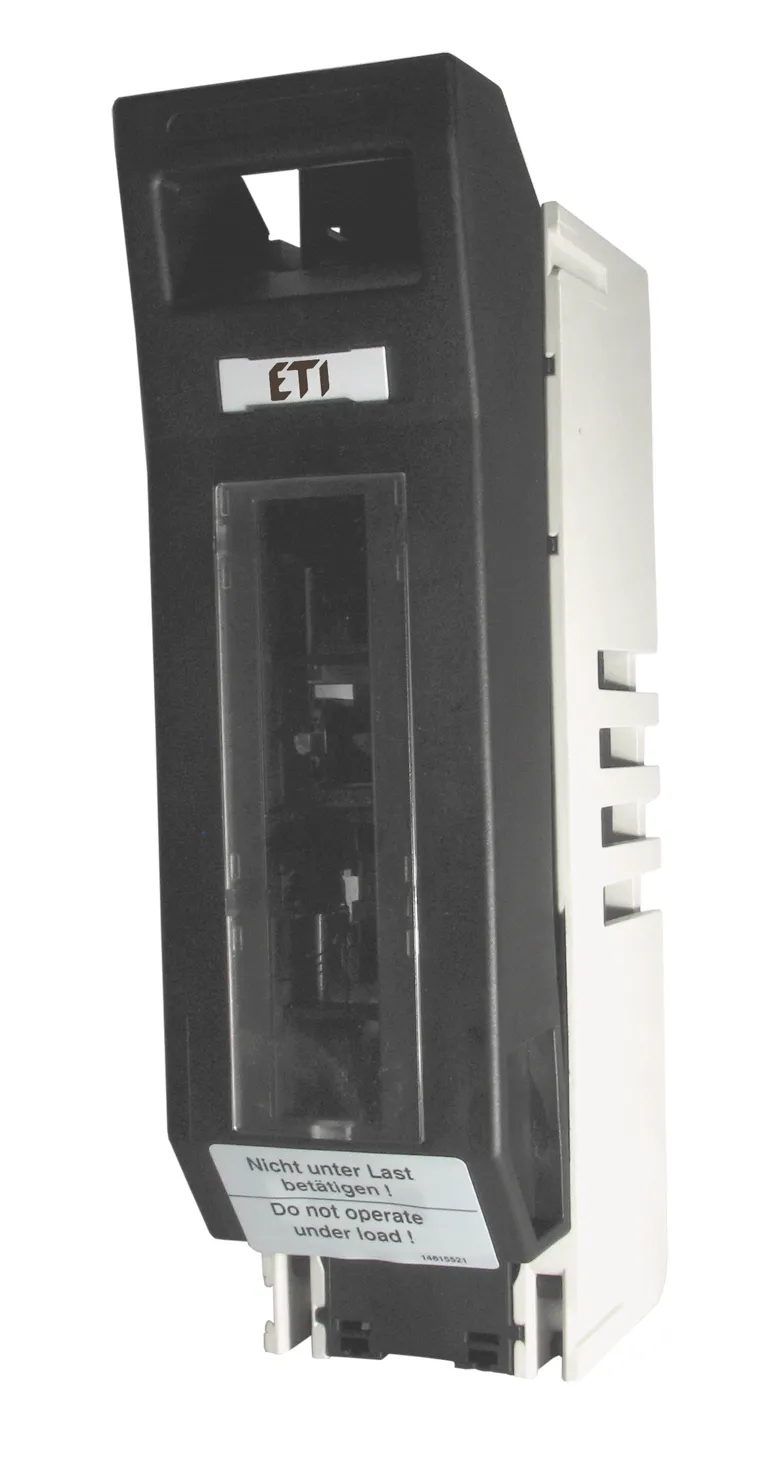

Fuse switch disconnector TL1-1/9/1000V/PV 004122038
Specifications
- ETI Code:
- 004122038
- Description:
- TL1-1/9/1000V/PV
- Class name:
- Fuse switch disconnector
- Rated current (A):
- 160
- Size:
- 1
- Rated DC voltage (V):
- 1000
- Product group:
- LV-fuse disconnector
- Connection:
- M10
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 1.042 kg
- Customs tariff
- 85365080
- logis_net_width
- 69 mm
- logis_net_height
- 230 mm
- logis_net_depth
- 119 mm
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895601487
- Basic packaging weight
- 1.04 kg
Level 2 Packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838400068927
- Transport packaging weight
- 1.07 kg
ETIM Clasification
- Classification
- EC001040
- Class name
- Fuse switch disconnector
- Rated voltage DC
- 1000
- Rated current
- 160
- Construction size
- 1
- Version as main switch
- Yes
- Rated permanent current Iu
- 160A
- Suitable for fuses
- NH1
- Number of poles
- 1
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Cover grip
- Degree of protection (IP), front side
- IP20
