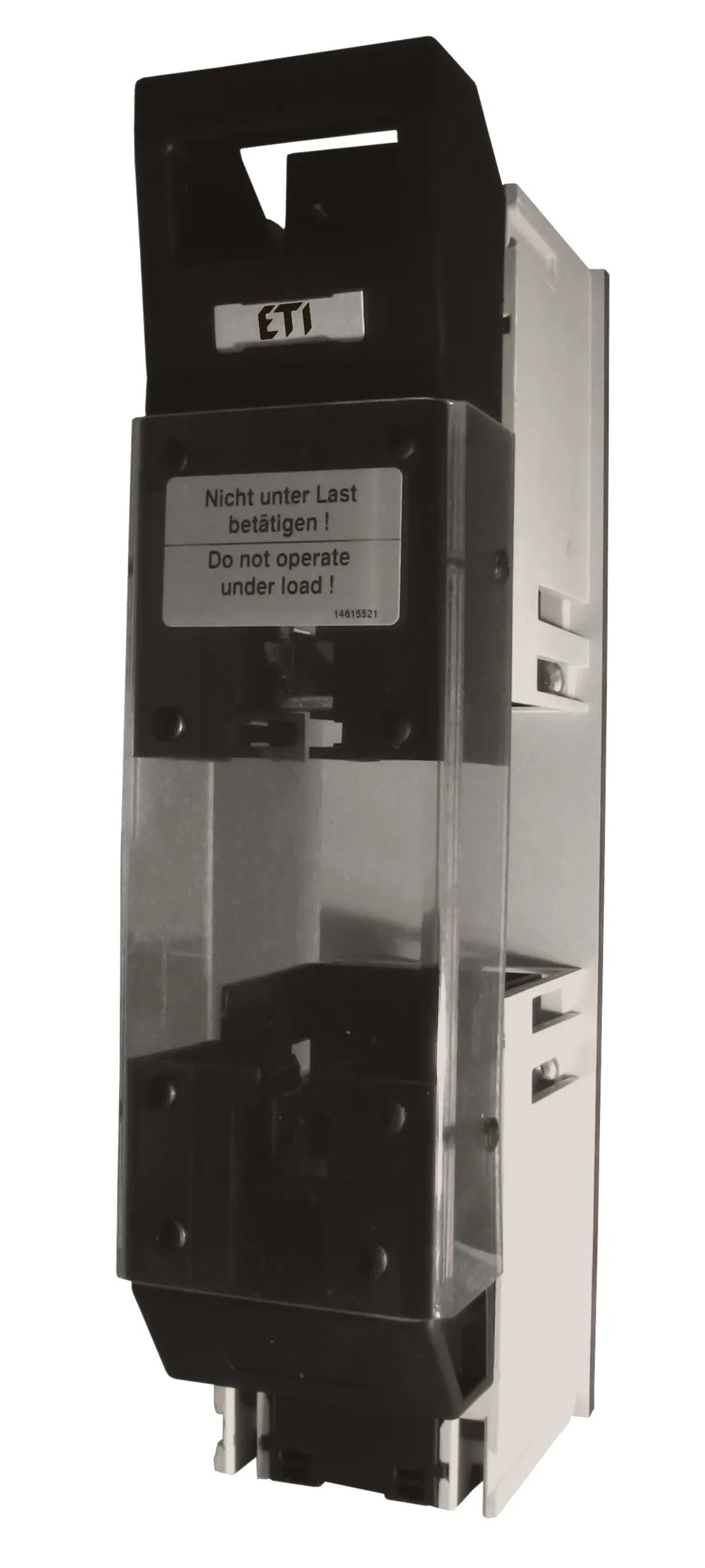

Fuse switch disconnector TL3-1/9/1200V 004122037
Specifications
- ETI Code:
- 004122037
- Description:
- TL3-1/9/1200V
- Class name:
- Fuse switch disconnector
- Rated current (A):
- 630
- Size:
- 3L
- Rated AC voltage (V):
- 1200
- Rated DC voltage (V):
- 1000
- Product group:
- LV-fuse disconnector
- Connection:
- M10
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 2.511 kg
- Customs tariff
- 85365080
- logis_net_width
- 99 mm
- logis_net_height
- 330 mm
- logis_net_depth
- 153 mm
Level 1 Packaging
- EAN code for a basic packaging
Level 2 Packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895601425
- Transport packaging weight
- 2.416 kg
- Pallet quantity
- 71
ETIM Clasification
- Classification
- EC001040
- Class name
- Fuse switch disconnector
- Construction size
- 3L
- Rated current
- 630
- Rated voltage DC
- 1000
- Version as main switch
- Yes
- Max. rated operation voltage Ue AC
- 1200V
- Rated permanent current Iu
- 630A
- Suitable for fuses
- NH3
- Number of poles
- 1
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Cover grip
- Degree of protection (IP), front side
- IP20
