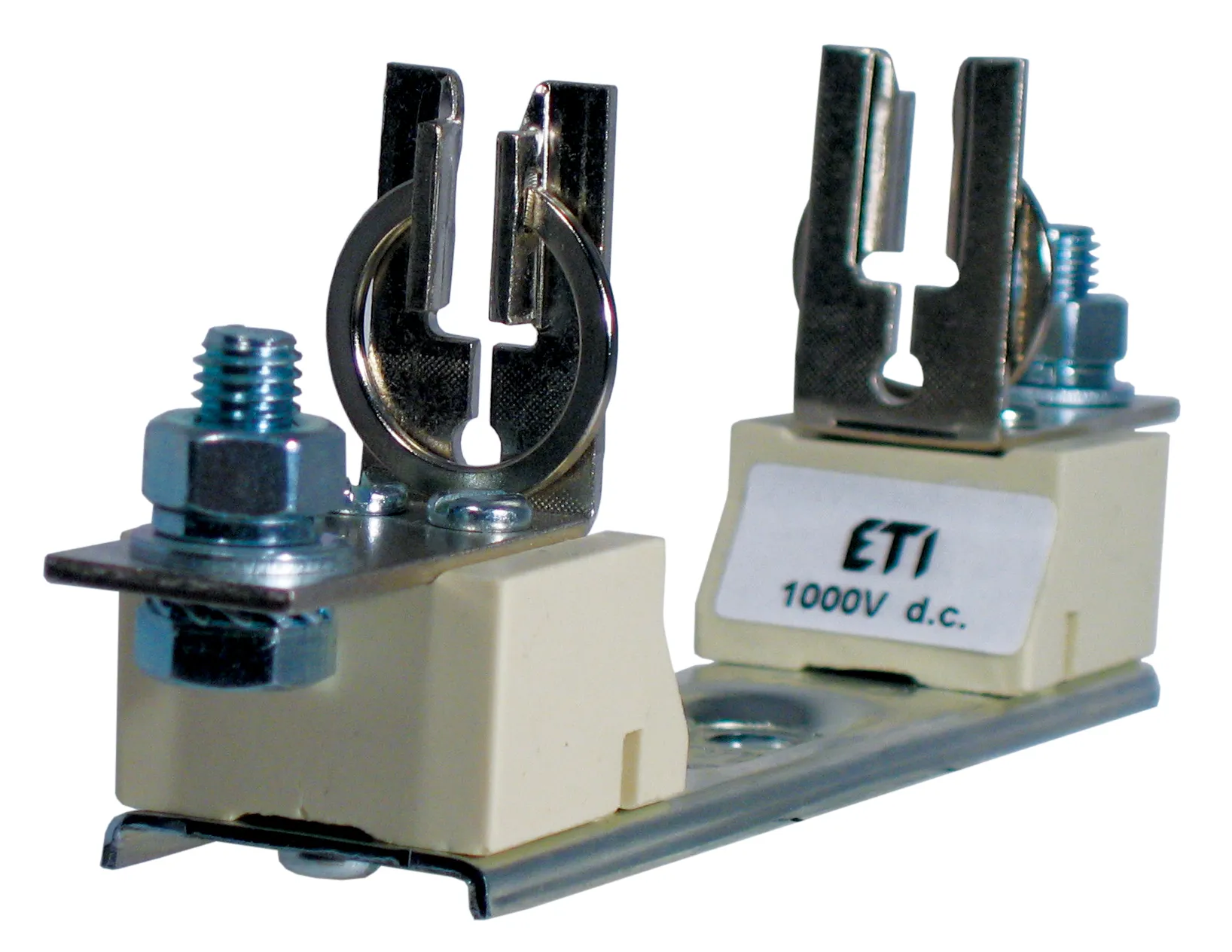

Fuse - base PK 0 M8-M8 DC 1000V 1p 004122033
Specifications
- ETI Code:
- 004122033
- Description:
- PK 0 M8-M8 DC 1000V 1p
- Class name:
- Fuse - base
- Rated current (A):
- 160
- Size:
- NH0
- Rated AC voltage (V):
- 1000
- Rated DC voltage (V):
- 1000
- Product group:
- LV-fuse base
- Connection:
- M8
- Mounting:
- Screw mounting
- Standards:
- IEC60269
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400059741
- Net weight of the product
- 288.8 g
- Customs tariff
- 85389099
- logis_net_width
- 33 mm
- logis_net_height
- 170 mm
- logis_net_depth
- 60 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895524755
- Basic packaging weight
- 0.84 kg
Transport packaging
- Transport packaging quantity
- 90
- EAN code for a transport packaging
- 3838895524762
- Transport packaging weight
- 25.99 kg
- Pallet quantity
- 1440
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Max. rated operation voltage Ue AC
- 1000
- Rated voltage DC
- 1000
- Mounting method
- Screw mounting
- Construction size
- Other
- Number of poles
- 1
- Rated current
- 160A
