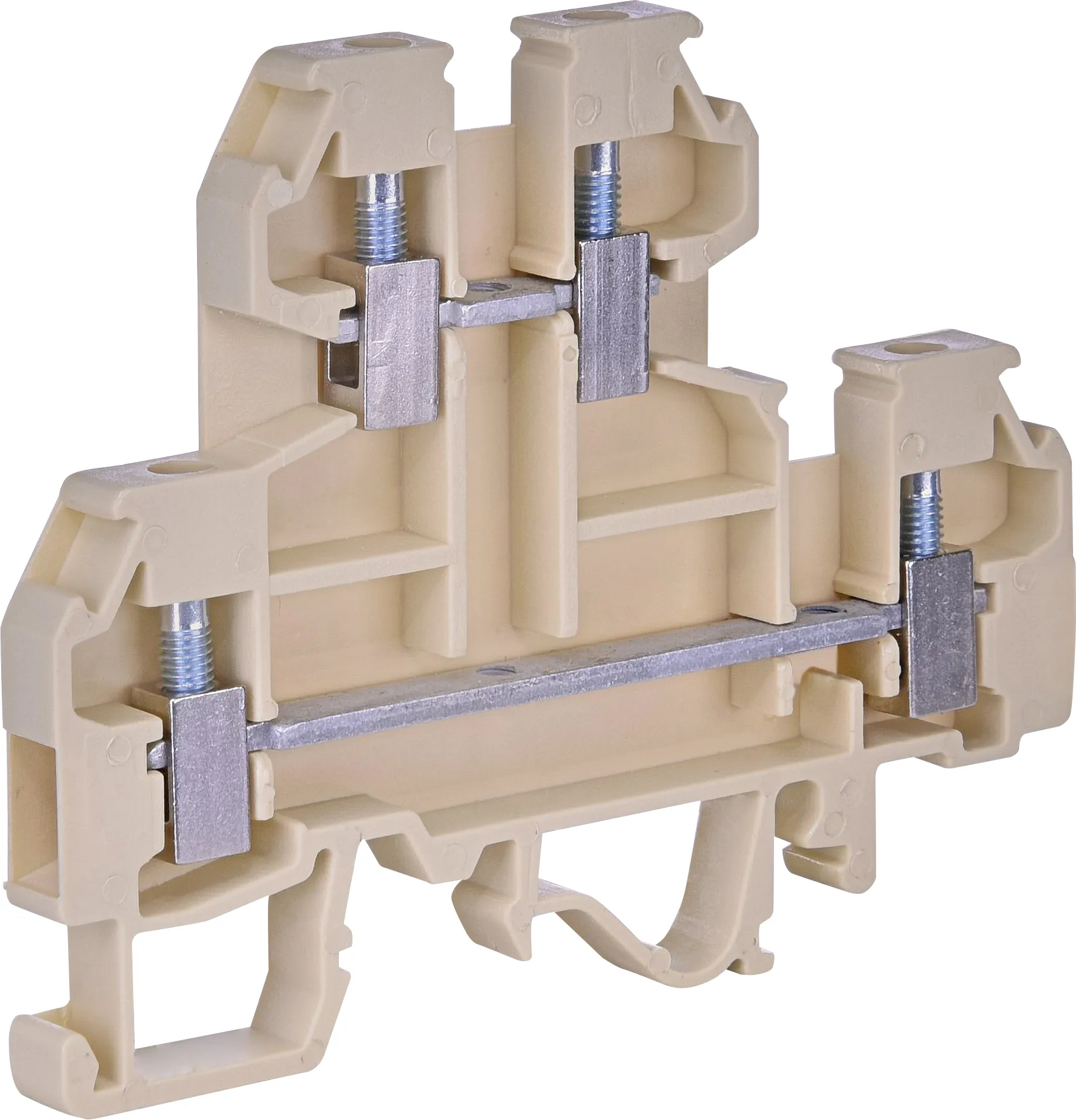

Line-up terminal VS 2,5 NA 003901243
Specifications
- ETI Code:
- 003901243
- Description:
- VS 2,5 NA
- Class name:
- Line-up terminal
- Mounting:
- DIN rail (top hat rail) 35 mm
- Level:
- Double
- Rated voltage (V):
- none
- Type:
- SM Line-up terminals
- Rated impulse withstand voltage Uimp (kV):
- none
- Rated cross section:
- 5
- Max current with rated cross-section (mm²):
- 24
- Max. current with max. cross-section (mm²):
- none
- Cross connection:
- YES
- End section needed:
- YES
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400081971
- Net weight of the product
- 0.015 kg
- Customs tariff
- 85369010
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3831012324955
- Transport packaging weight
- 0.726 kg
- Pallet quantity
- 55100
ETIM Clasification
- Classification
- EC001329
- Class name
- Multi level installation terminal block
- Rated impulse withstand voltage Uimp
- none
- Clamping range
- 2,5
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.3…2.5mm²
- Connectable conductor cross section solid-core
- 0.3…4mm²
- Rated current In
- 24A
- Rated voltage
- 440V
- Type of electrical connection 1
- Clip connection
- Connection position
- Sideways
- Number of potentials
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Width/grid dimension
- 5mm
- Height at lowest possible mounting height
- 54.5mm
- Length
- 69.5mm
- Closing plate required
- Yes
- Basic colour
- Beige
VS 2,5 NA
