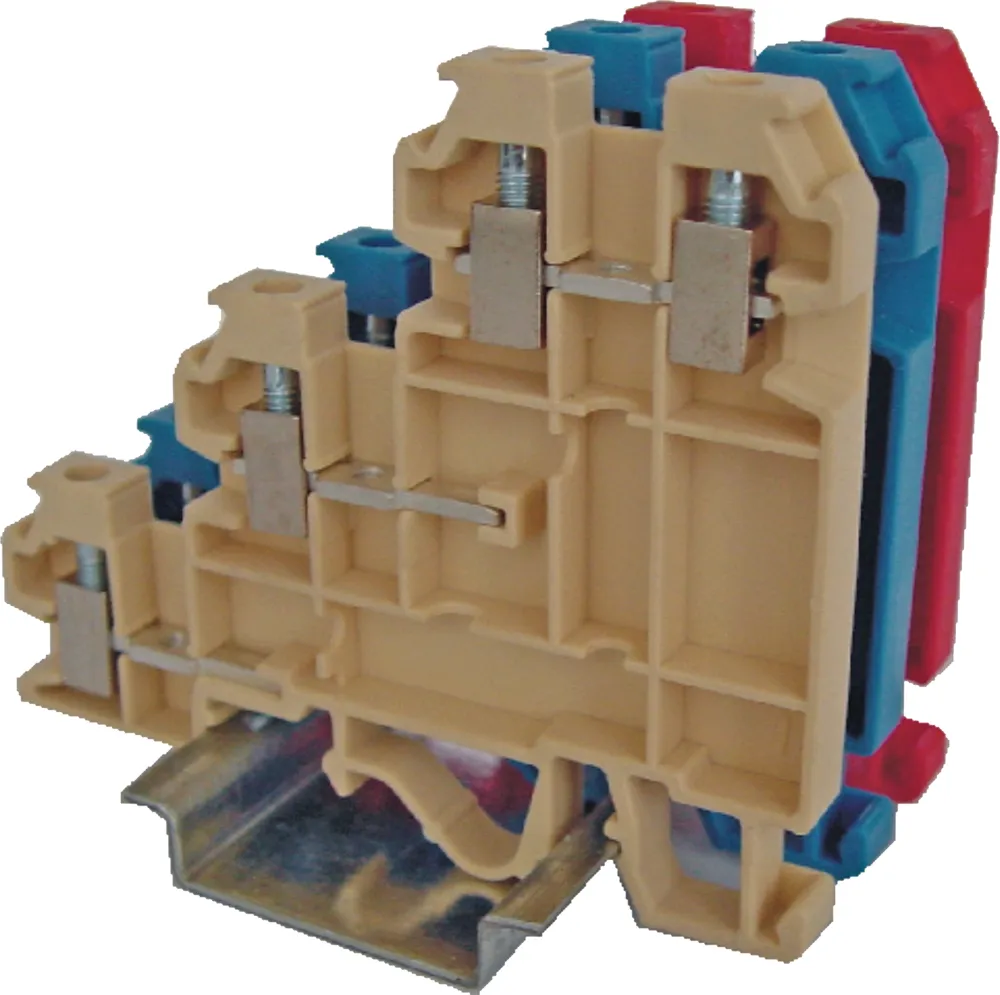

Line-up terminal VS 2,5 INNPN 003901219
Specifications
- ETI Code:
- 003901219
- Description:
- VS 2,5 INNPN
- Class name:
- Line-up terminal
- Mounting:
- DIN rail (top hat rail) 35 mm
- Level:
- Single
- Rated voltage (V):
- none
- Type:
- SM Line-up terminals
- Rated impulse withstand voltage Uimp (kV):
- none
- Rated cross section:
- 2,5
- Max current with rated cross-section (mm²):
- 24
- Max. current with max. cross-section (mm²):
- none
- Connectable conductor cross section solid-core (mm²):
- 0.3 - 4
- Cross connection:
- YES
- End section needed:
- YES
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400081896
- Net weight of the product
- 0.014 kg
- Customs tariff
- 85369010
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3831012323217
- Transport packaging weight
- 0.695 kg
- Pallet quantity
- 57550
ETIM Clasification
- Classification
- EC000897
- Class name
- Feed-through terminal block
- Colour
- Other
