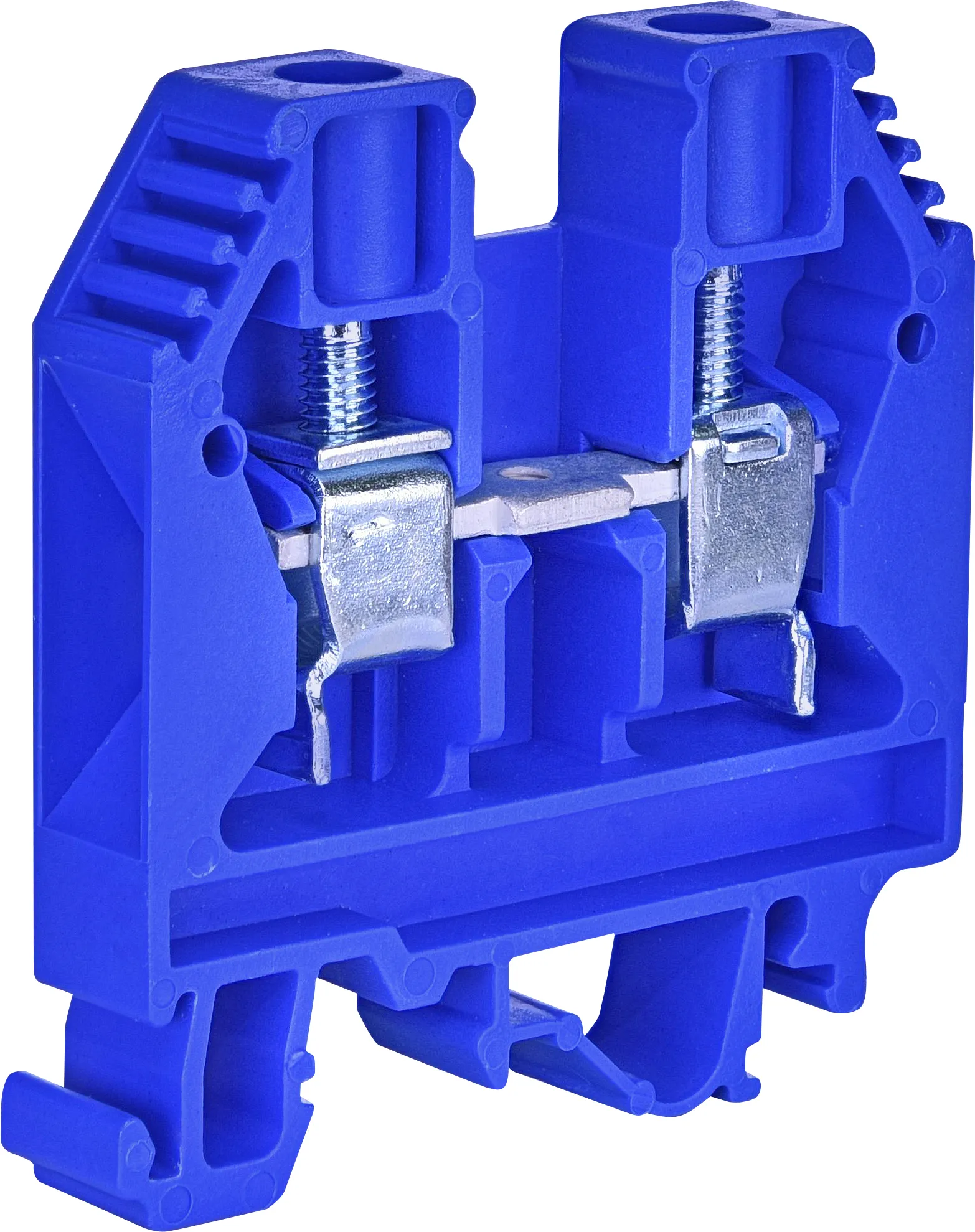

Line-up terminal VS 10 PA N 003901102
Specifications
- ETI Code:
- 003901102
- Description:
- VS 10 PA N
- Class name:
- Line-up terminal
- Mounting:
- DIN rail (top hat rail) 35 mm
- Level:
- Single
- Rated voltage (V):
- 660
- Type:
- SM Line-up terminals
- Rated impulse withstand voltage Uimp (kV):
- none
- Color:
- Blue
- Rated cross section:
- 10
- Max current with rated cross-section (mm²):
- 57
- Max. current with max. cross-section (mm²):
- none
- Cross connection:
- YES
- End section needed:
- YES
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400081155
- Net weight of the product
- 0.024 kg
- Customs tariff
- 85369010
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3831012323460
- Transport packaging weight
- 1.202 kg
- Pallet quantity
- 33300
ETIM Clasification
- Classification
- EC000897
- Class name
- Feed-through terminal block
- Rated impulse withstand voltage Uimp
- none
- Clamping range
- 10
- Connectable conductor cross section fine-strand without cable end sleeve
- 4…10mm²
- Connectable conductor cross section solid-core
- 2.5…10mm²
- Rated current In
- 57A
- Rated voltage
- 660V
- Type of electrical connection 1
- Clip connection
- Connection position
- Sideways
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Width/grid dimension
- 10mm
- Height at lowest possible mounting height
- 56mm
- Length
- 55mm
- Closing plate required
- Yes
- Colour
- Blue
VS 10 PA N
