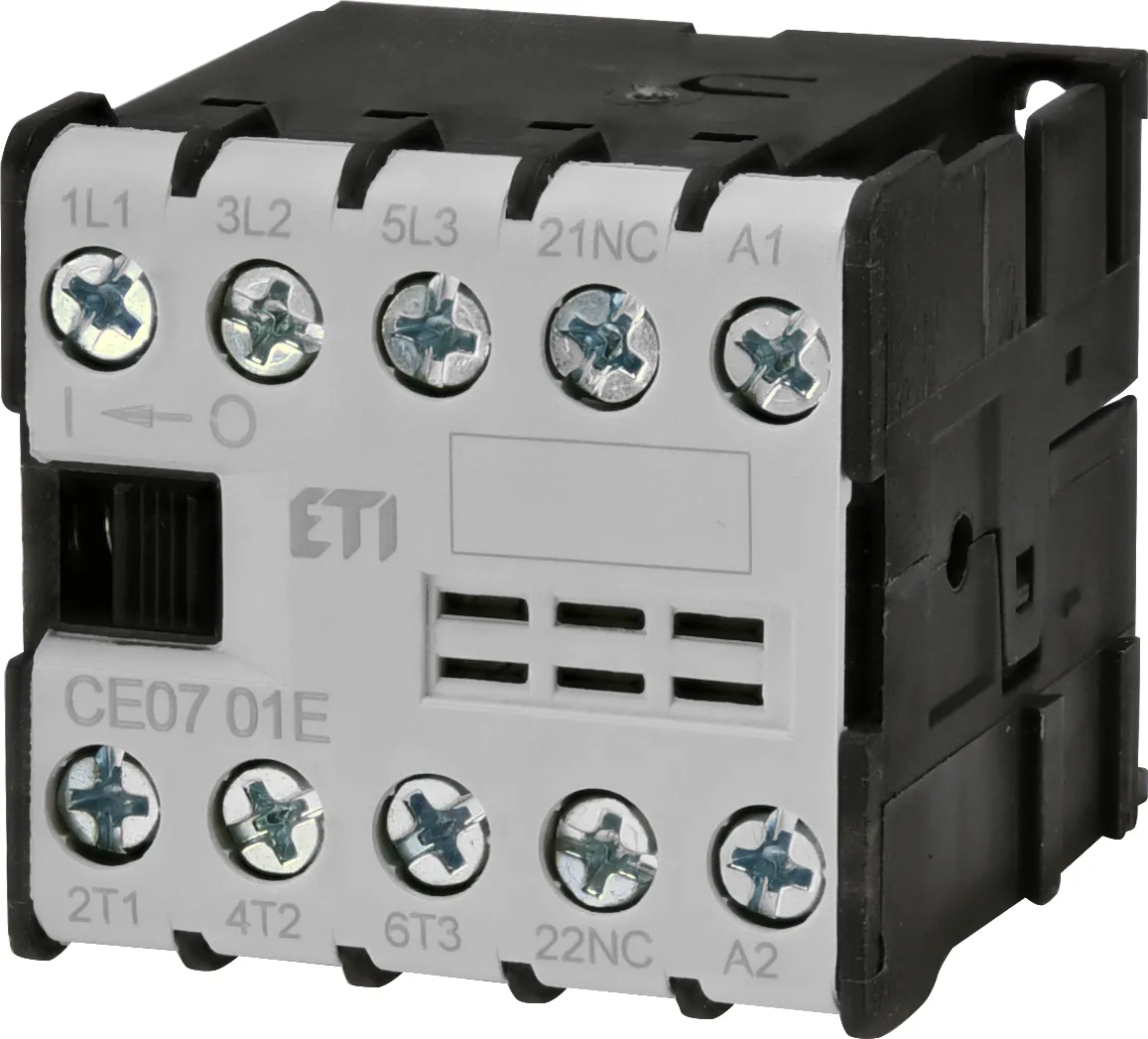

Miniature motor contactor CE07.01-24V-50/60Hz 004641010
Specifications
- ETI Code:
- 004641010
- Description:
- CE07.01-24V-50/60Hz
- Class name:
- Miniature motor contactor
- Rated operation current Ie at AC1 (A):
- 16
- Rated operation current Ie at AC3, 400 V (A):
- 7
- Rated operational voltage AC (V):
- 400
- Rated AC control circuit voltage Uc (V):
- 24V
- Rated operation power at AC3 (kW):
- 3
- Number of NO contacts:
- 3
- Number of auxiliary NC contacts:
- 1
- Function:
- Miniature contactors
Documents
Logistic Data
Product
- Net weight of the product
- 0.12 kg
- Customs tariff
- 85364900
- logis_net_width
- 45 mm
- logis_net_height
- 45 mm
- logis_net_depth
- 52 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 7890355107881
- Transport packaging weight
- 0.13 kg
- Pallet quantity
- 6667
ETIM Clasification
- Classification
- EC000066
- Class name
- Power contactor, AC switching
- Rated control supply voltage AC 50 Hz
- 24…24V
- Rated control supply voltage AC 60 Hz
- 24…24V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-1, 400 V
- 16A
- Rated operation current Ie at AC-3, 400 V
- 7A
- Rated operation power at AC-3, 400 V
- 3kW
- Number of auxiliary contacts as normally closed contact
- 1
- Type of electrical connection of main circuit
- Frame clamp
- Number of normally open contacts as main contact
- 3
