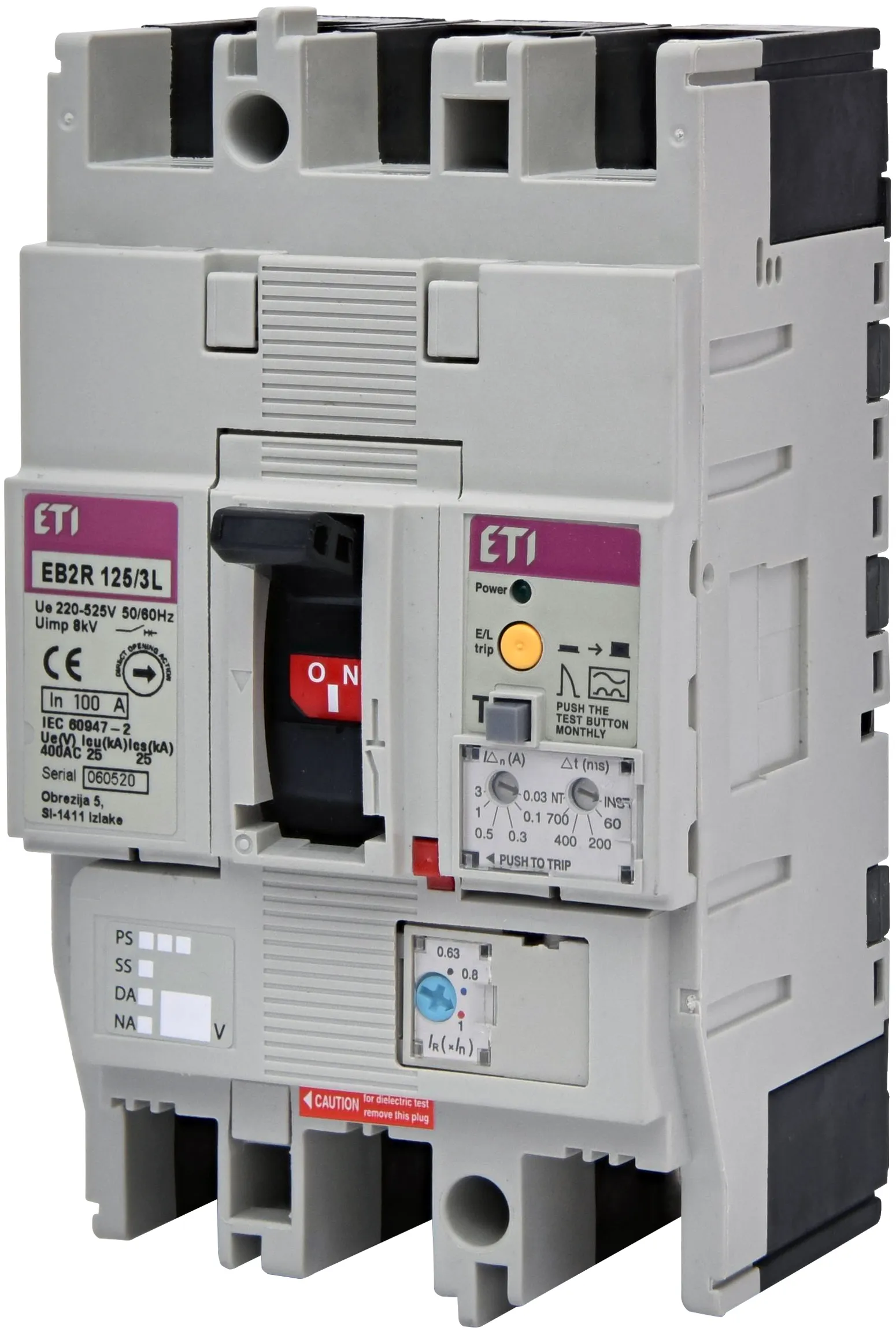

Molded Case Circuit Breaker EB2R 125/3L 100A 3P 004671505
Specifications
- ETI Code:
- 004671505
- Description:
- EB2R 125/3L 100A 3P
- Class name:
- Molded Case Circuit Breaker
- Function:
- MCCB + RCD
- Rated current (A):
- 100
- Number of poles:
- 3
- Connection type:
- front connection
- Standards:
- 60947
- Rated impulse withstand voltage Uimp (kV):
- 8
- Rated short-circuit breaking capacity at 415V Icu/Ics (kA):
- 25/19
- Rated operational voltage AC (V):
- 525V
- Rated operational voltage DC (V):
- n.a.
- Rated insulation voltage (V):
- 800
- Thermal adjustment:
- 0,63-1
- Magnetic adjustment:
- fixed
- Adjustable or fixed:
- adjustable
Documents
Logistic Data
Product
- Net weight of the product
- 1.1 kg
- Customs tariff
- 85362090
- logis_net_width
- 90 mm
- logis_net_height
- 155 mm
- logis_net_depth
- 92 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895502425
- Transport packaging weight
- 1 kg
- Pallet quantity
- 800
ETIM Clasification
- Classification
- EC000228
- Class name
- Power circuit-breaker for trafo/generator/installation protection
- Number of knife blade fuse holders
- 3
- Rated current
- 100
- Rated impulse withstand voltage Uimp
- 8
- Rated short-circuit breaking capacity according to EN 60898
- 25/19
- Frame size according to IEC
- 125A
- Rated permanent current Iu
- 100A
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 25kA
- Overload release current setting
- 63…100A
- Adjustment range undelayed short-circuit release
- 1200…1200A
- Integrated earth fault protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Device construction
- Built-in device fixed built-in technique
- With switched-off indicator
- Yes
- Number of poles
- 3
- Type of control element
- Rocker lever
- Motor drive integrated
- No
- Motor drive optional
- Yes
- Degree of protection (IP)
- IP20
