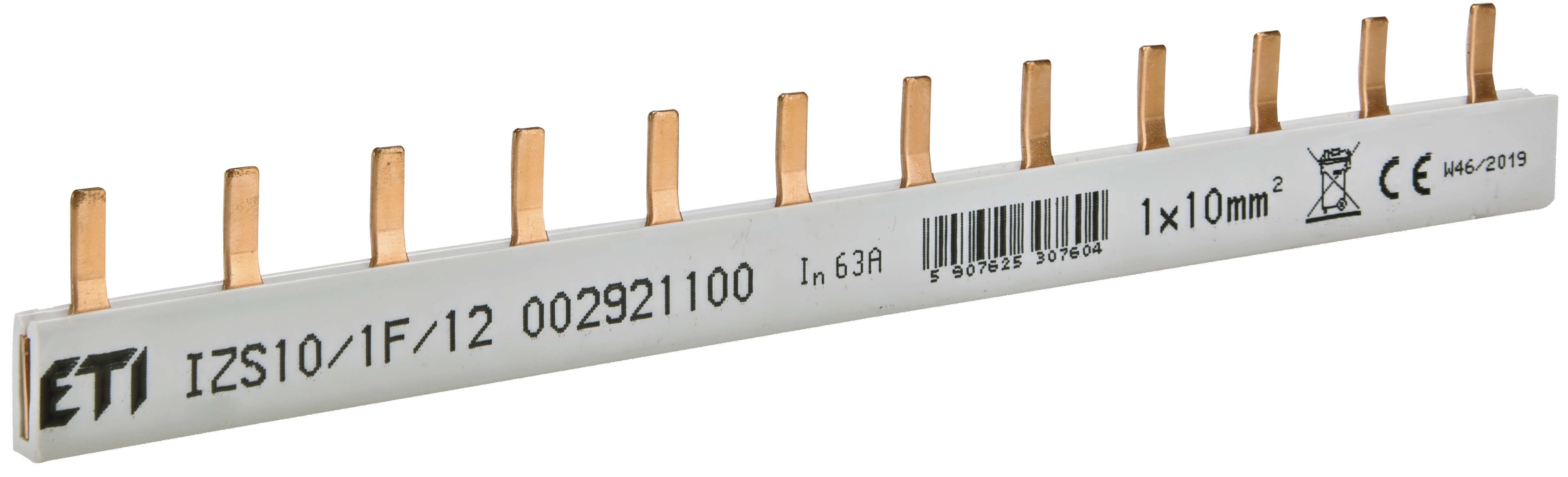

Insulated busbar IZS10/1F/12 (0,21) 002921100
Specifications
- ETI Code:
- 002921100
- Description:
- IZS10/1F/12 (0,21)
- Class name:
- Insulated busbar
- Function:
- Section rails
- Type:
- Pin type
- Rated current (A):
- 63
- Rated voltage (V):
- 500 V AC
- Rated cross section:
- 10
- Lenght in modules:
- 12
- Number of phases:
- 1
- Type accessories:
- Section rails
- For use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
Documents
Logistic Data
Product
- EAN code for a single product
- 5907625307604
- Net weight of the product
- 0.04 kg
- Customs tariff
- 85389099
- logis_net_width
- 215 mm
- logis_net_height
- 27 mm
- logis_net_depth
- 6 mm
Basic packaging
- Basic packaging quantity
- 40
- EAN code for a basic packaging
- 5907625307611
- Basic packaging weight
- 1.6 kg
Transport packaging
- Transport packaging quantity
- 480
- EAN code for a transport packaging
- 5907625307628
- Transport packaging weight
- 19.2 kg
- Pallet quantity
- 20160
ETIM Clasification
- Classification
- EC000215
- Class name
- Phase busbar
- Number of phases
- 1
- Module width
- 17,8mm
- Cross section
- 10mm²
- Length
- 210mm
- Rated permanent current Iu
- 63A
- Type of electric connection
- Pin
- Insulated
- Yes
- Max. rated operation voltage Ue
- 500V
