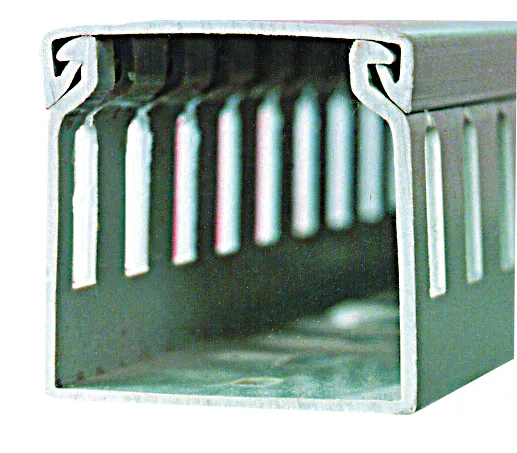

Installation channel B 25x40 T (2m) 003911034

Specifications

ETI Code:
003911034
Description:
B 25x40 T (2m)
Class name:
Installation channel
Height (mm):
40
Width (mm):
25
Depth (mm):
2000
Material:
PCV
Working Temperature (°C):
max. 70
Type accessories:
Installation channels

Documents

Product

EAN code for a single product
3838400043153
Net weight of the product
0.584  kg
Customs tariff
39259020

Level 1 Packaging

Basic packaging quantity
2
EAN code for a basic packaging
3838895458821
Basic packaging weight
1.04  kg

Level 2 Packaging

Transport packaging quantity
36
EAN code for a transport packaging
3838895448921
Transport packaging weight
18.72  kg
Pallet quantity
900
Classification
EC000012
Class name
Slotted cable trunking system
Height
40mm
Width
25mm
Distance of slots
6mm
Slit width
4mm
Type of side wall
Hole-/slot punching
Length
2000mm
Halogen free
Yes
Self-extinguishing
Yes
Current leak stable
Yes
Type of fastening
Bottom perforation
With cover
Yes
Colour
Stone grey
ETIM Classification – Version 7.0
