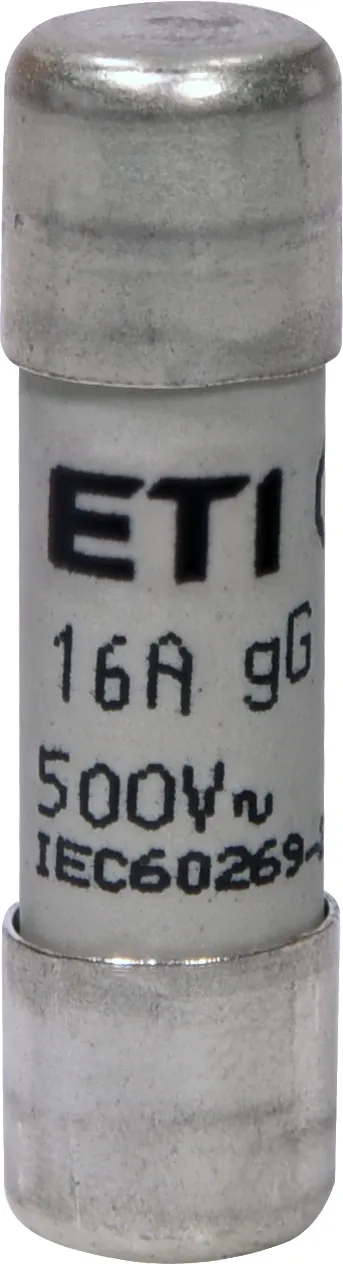

Fuse link CH10x38 gG 16A/500V 002651019
Specifications
- ETI Code:
- 002651019
- Description:
- CH10x38 gG 16A/500V
- Class name:
- Fuse link
- Type:
- CH
- Size:
- 10x38
- Rated current (A):
- 16
- Rated AC voltage (V):
- 500
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120
- Application:
- For cable protection
- Power dissipation (W):
- 1,9
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- Customs tariff
- 85361050
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400094667
- Basic packaging weight
- 0.081 kg
Transport packaging
- Transport packaging quantity
- 1800
- EAN code for a transport packaging
- 3838400094674
- Transport packaging weight
- 15.038 kg
- Pallet quantity
- 57600
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Voltage type
- AC
- Rated current
- 16A
- Rated voltage
- 500V
