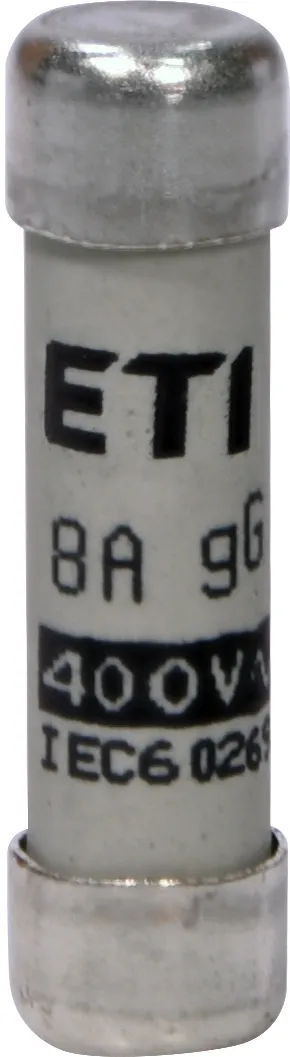

Fuse link CH8x32 gG 8A/400V 002651005
Specifications
- ETI Code:
- 002651005
- Description:
- CH8x32 gG 8A/400V
- Class name:
- Fuse link
- Type:
- CH
- Size:
- 8x32
- Rated current (A):
- 8
- Rated AC voltage (V):
- 400
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 20
- Application:
- For cable protection
- Power dissipation (W):
- 1
- Standards:
- IEC 60269-1, IEC 60269-2
Documents
Logistic Data
Product
- Net weight of the product
- 0.005 kg
- Customs tariff
- 85361010
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838400094360
- Basic packaging weight
- 0.046 kg
Transport packaging
- Transport packaging quantity
- 2500
- EAN code for a transport packaging
- 3838400096449
- Transport packaging weight
- 11.897 kg
- Pallet quantity
- 80000
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Max. rated operation voltage Ue AC
- 400
- Construction size
- CH8
- Application
- For cable protection
- Rated current
- 8
- Size
- 8x32 mm
- Rated voltage
- 400V
- Voltage type
- AC
- Utilization category
- Other
- Rated operating frequency
- 50Hz
- Breaking capacity
- 20kA
