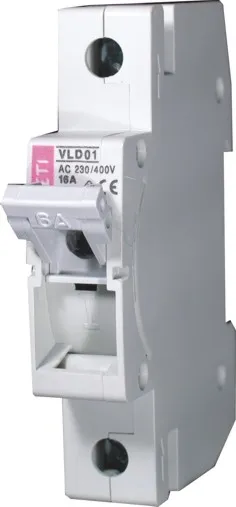

Fuse switch disconnector VL D01 16A 1p 002261003
Specifications
- ETI Code:
- 002261003
- Description:
- VL D01 16A 1p
- Class name:
- Fuse switch disconnector
- Mounting type:
- TH 35
- Product group:
- LV-fuse disconnector
- Utilization category:
- AC-22A
- Size:
- D01
- Number of poles:
- 1
- Rated current (A):
- 16
- Rated AC voltage (V):
- 230/400
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400030290
- Net weight of the product
- 0.075 kg
- Customs tariff
- 85389099
- logis_net_width
- 18 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895329367
- Basic packaging weight
- 0.864 kg
Transport packaging
- Transport packaging quantity
- 108
- EAN code for a transport packaging
- 3838895329374
- Transport packaging weight
- 8.096 kg
- Pallet quantity
- 5616
ETIM Clasification
- Classification
- EC000277
- Class name
- D0-system switch disconnector
- Number of knife blade fuse holders
- 1
- Mounting method
- 35mm DIN rail
- Max. rated operation voltage Ue AC
- 230/400
- Number of poles
- 1
- Construction size
- D01
- Rated voltage
- 230V
- Rated current
- 16A
