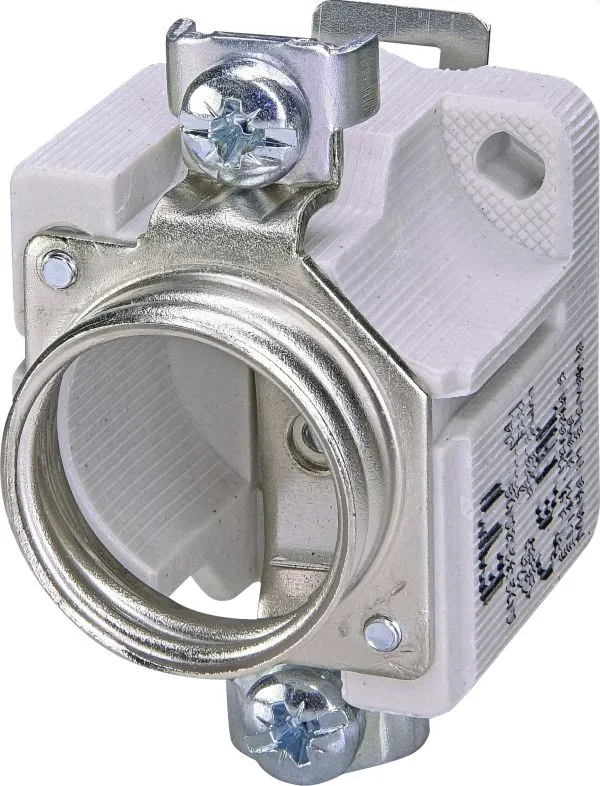

Fuse - base DII E27 25A EZN 1p 002322009
Specifications
- ETI Code:
- 002322009
- Description:
- DII E27 25A EZN 1p
- Class name:
- Fuse - base
- Mounting type:
- TH 35
- Type:
- EZN
- Size:
- DII
- Dimensions:
- E27
- Number of poles:
- 1
- Rated current (A):
- 25
- Rated AC voltage (V):
- 500
- Connection:
- M5
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895906162
- Net weight of the product
- 0.104 kg
- Customs tariff
- 85389099
- logis_net_width
- 39 mm
- logis_net_height
- 70 mm
- logis_net_depth
- 56 mm
Basic packaging
- Basic packaging quantity
- 15
- EAN code for a basic packaging
- 3838895000457
- Basic packaging weight
- 1.5 kg
Transport packaging
- Transport packaging quantity
- 105
- EAN code for a transport packaging
- 3838895717119
- Transport packaging weight
- 10.7 kg
- Pallet quantity
- 3150
ETIM Clasification
- Classification
- EC000094
- Class name
- D-system fuse base
- Max. rated operation voltage Ue AC
- 500
- Number of knife blade fuse holders
- 1
- Number of poles
- 1
- Construction size
- DII
- Material
- Porcelain
- Model
- Fitted screw
- Rated voltage
- 500V
- Rated current
- 25A
