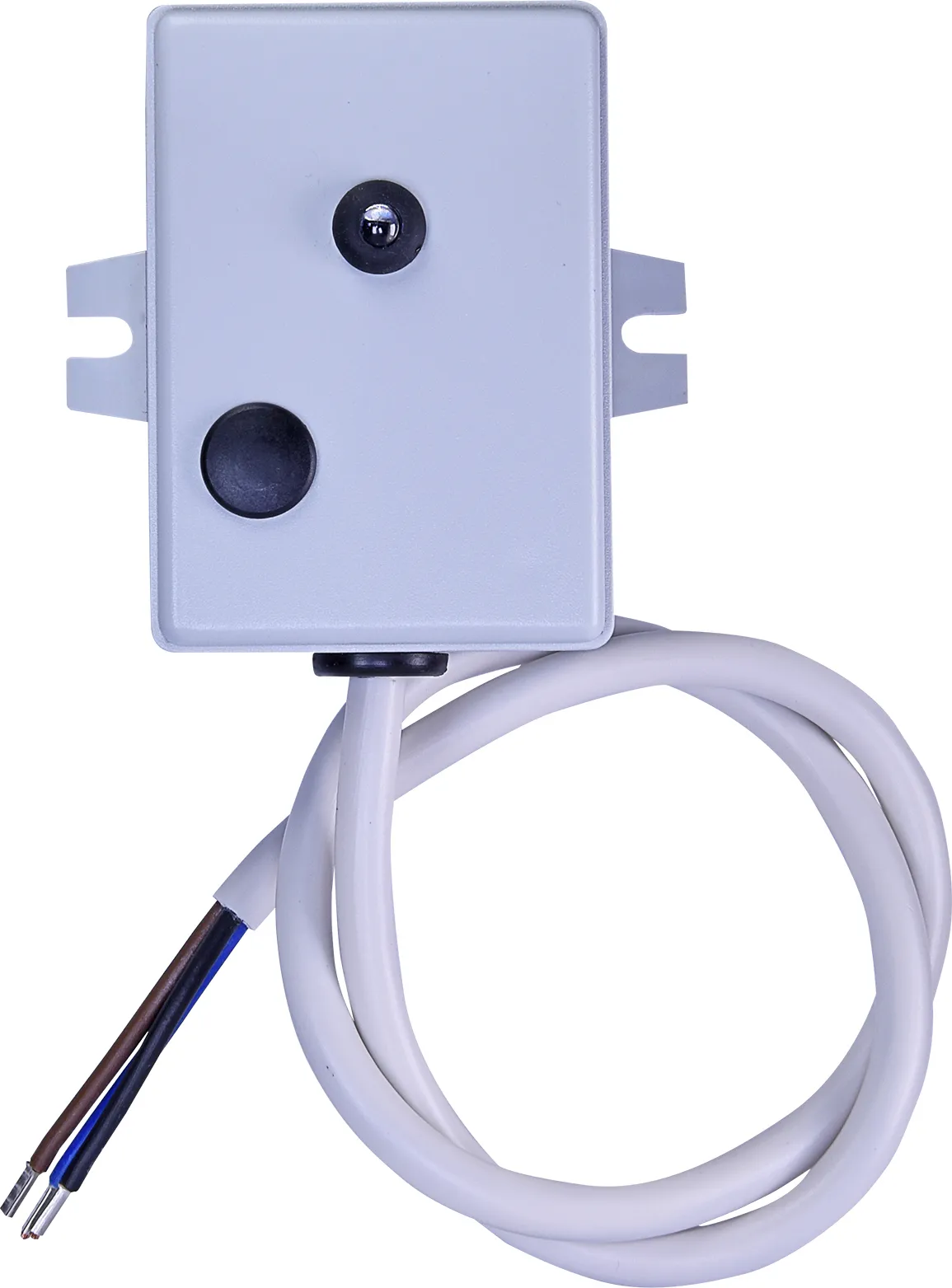

Twilight switch ETS-16b 002471102

Specifications

ETI Code:
002471102
Description:
ETS-16b
Class name:
Twilight switch
Maximum load capacity at AC1 (VA):
4000
Function:
Monitoring and Control relays
Supply voltage (V):
180-230
Luminous flux (Lx):
2 - 50
Number of contacts:
1
Rated current (A):
16
Voltage type:
AC
Category:
Twillight and staircase switches
Type of contacts:
NO - NO

Documents

Product

EAN code for a single product

Net weight of the product
0.15  kg
Customs tariff
85364900

Level 1 Packaging

Basic packaging quantity
1
EAN code for a basic packaging
5904722934672
Basic packaging weight
0.07  kg

Level 2 Packaging

Transport packaging quantity
6
EAN code for a transport packaging
3838895792314
Transport packaging weight
0.428  kg
Pallet quantity
9000
Classification
EC000189
Class name
Twilight switch
Voltage type
AC
Rated current
16
Contacts
1 make contact (NO)
Engaging brightness
2…2lx
Switching-off brightness
50…50lx
Switch-off delay
20s
Switching-on delay
20s
Mounting method
Surface mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Colour
Grey
Nominal voltage
230V
Max. switching current (resistive load)
16A
Suitable for degree of protection (IP)
IP65
ETIM Classification – Version 7.0
