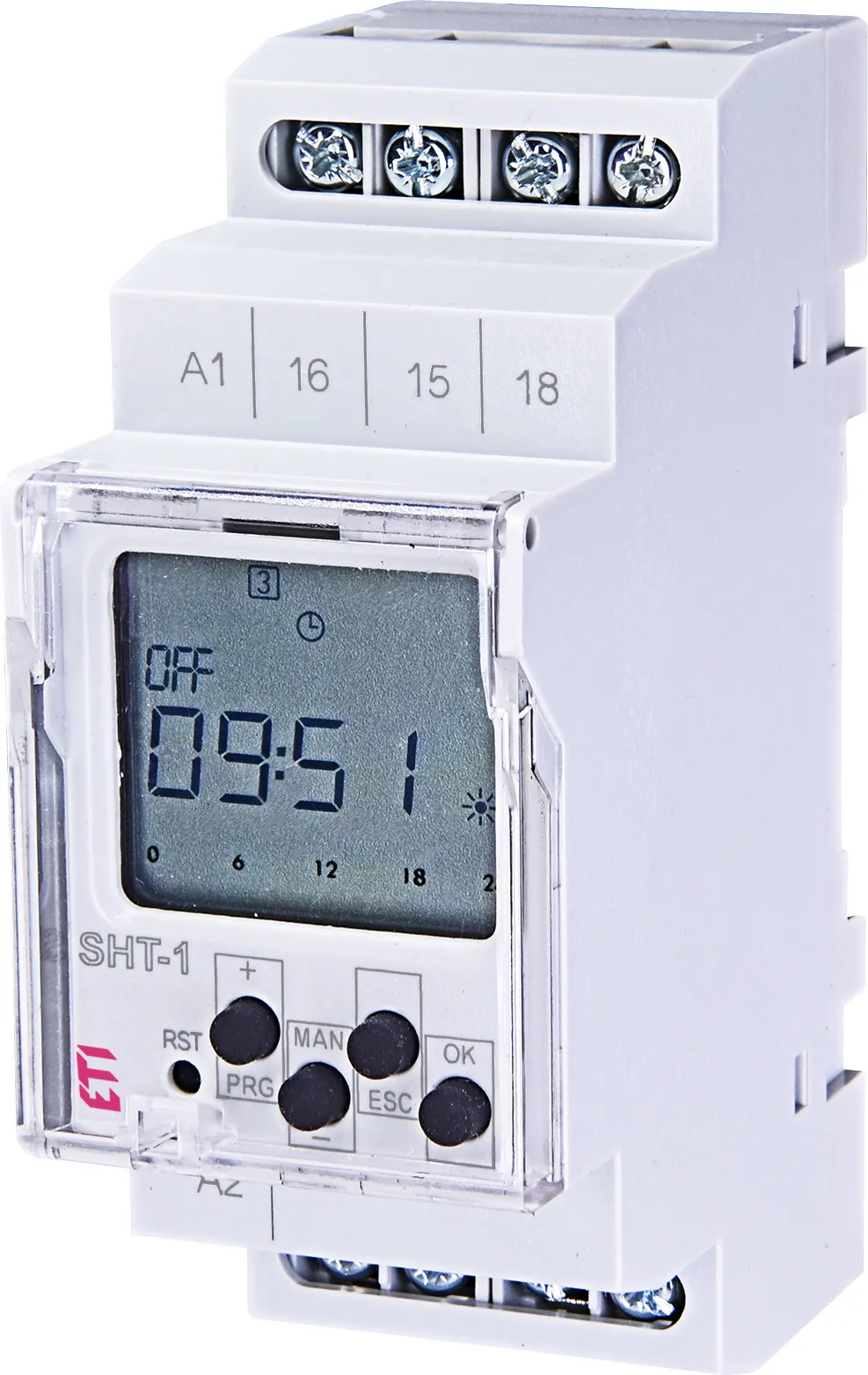

Time relay - digital SHT-1/UNI 002470051
Specifications
- ETI Code:
- 002470051
- Description:
- SHT-1/UNI
- Class name:
- Time relay - digital
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Time relay
- Rated current (A):
- 16
- Voltage type:
- AC/DC
- Supply voltage (V):
- 12 - 240
- Type of contacts:
- CO
- Number of contacts:
- 1
- Time range:
- daily, weekly
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.13 kg
- Customs tariff
- 85364900
- logis_net_width
- 36 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 65 mm
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895906421
- Basic packaging weight
- 0.13 kg
Level 2 Packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 8595188121071
- Transport packaging weight
- 0.13 kg
- Pallet quantity
- 6154
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
SHT-1/UNI
