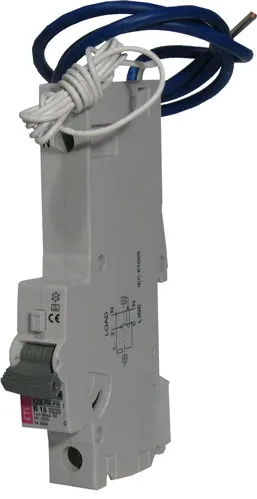

RCBO KZS-1M-FN AC C20/0.03 002175525
Specifications
- ETI Code:
- 002175525
- Description:
- KZS-1M-FN AC C20/0.03
- Class name:
- RCBO
- Rated residual current (A):
- 0.03
- Current type:
- AC
- Rated current (A):
- 20
- Tripping characteristic:
- C
- Type:
- AC
- Number of poles:
- 1+N
- Short circuit capacity (kA):
- 10
- Rated voltage (V):
- 240
- Rated Frequency (Hz):
- 50 Hz
- Rated cross section:
- 1 ... 25
- Standards:
- IEC 61009
Documents
Logistic Data
Product
- Customs tariff
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 233 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895628484
- Basic packaging weight
- 0.19 kg
Transport packaging
- Transport packaging quantity
- 42
- EAN code for a transport packaging
- 3838895628491
- Transport packaging weight
- 8.4 kg
- Pallet quantity
- 2184
ETIM Clasification
- Classification
- EC000905
- Class name
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated current
- 20A
- Rated fault current
- 0,03A
- Leakage current type
- Other
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Rated short-circuit breaking capacity according to IEC 60947-2
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 61009-1
- 10kA
- Disconnection characteristic
- Undelayed
- Voltage type
- AC
- Frequency
- Other
- Release characteristic
- C
- Concurrently switching neutral conductor
- No
- With interlocking device
- Yes
- Ambient temperature during operating
- 30…30°C
- Width in number of modular spacings
- 1
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 25…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²
